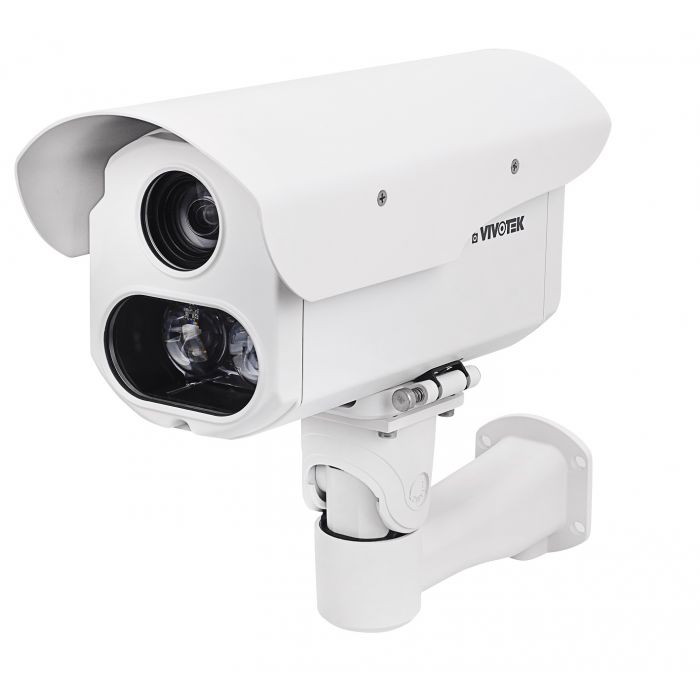

Vivotek IZ9361-EH bullet exterior 2 mpix lente zoom 20x ir 150 m wdr pro
Antes $7,715.00
Disponible 1 Pzas
| Informacion tecnica | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 512 MB |
| Camera Specifications | |
| Image Sensor | 1/3' Progressive CMOS |
| Max. Resolution | 1920x1080 (2MP) |
| Lens Type | 20x Optical Zoom, Auto Focus |
| Focal Length | f = 4.7 ~ 94 mm |
| Aperture | F1.6 ~ F3.5 |
| Iris Type | DC-iris |
| Field of View | 55.4° ~ 2.9° (Horizontal) 32.6° ~ 1.6° (Vertical) 62.7° ~ 3.3° (Diagonal) |
| Shutter Time | 1/8 sec. to 1/30,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Illuminators | 150 meters |
| Minimum Illumination | 0.26 lux@ F1.6 (Color) 0.01 lux @ F1.6 (B/W) |
| Preset Location | 20 preset locations |
| Pan/Tilt/Zoom Functionalities | 128x digital zoom (4x on IE plug-in, 32x built-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS) |
| Built-in Installation Aids | Remote focus, remote zoom |
| Video | |
| Compression | H.265 & H.264 & MJPEG |
| Maximum Frame Rate | H.265 & H.264: 60 fps @ 1920x1080 MJPEG: 30 fps @ 1920x1080 |
| Maximum Streams | 4 video streams |
| S/N Ratio | Above 53dB |
| Dynamic Range | 110dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control, Smart Stream III |
| Image Settings |
General settings video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings Illuminators illuminators, anti-overexposure Image settings white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, DIS, scene mode (auto, deblur) Exposure BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR Focus zoom, focus Privacy mask Scheduled profile settings |
| Audio | |
| Audio Capability | Two-way Audio (full duplex) |
| Compression | G.711, G.726 |
| Interface | External microphone input External line output |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, digest authentication, HTTPS , IEEE 802.1x, Password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, , NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | 10 Base-T/100 BaseTX/1000 BaseTX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| Solution Integration | |
| VADP Package | Stratocast, Trend Micro IoT Security (3-year free trial) |
| Video Motion Detection | Motion Detection (Five-window video motion detection) |
| Alarm and Event | |
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, PIR detection, recording notification, SD card life expectancy, shock detection, system boot, video loss, video restoration |
| Event Action | Event notification via audio clip, digital output, email, HTTP, FTP, NAS server, SD card, push notification File upload via email, HTTP, FTP/SFTP, NAS server, SD card |
| General | |
| Connectors | RJ-45 cable connector for Network/PoE connection Audio input Audio output AC24V/DC24V power input Digital input*3 Digital output*1 RS485 |
| LED Indicator | System power and status indicator |
| Power Input | 60W UPoE DC 24V AC 24V |
| Power Consumption | UPoE/DC12V/AC24V: Max. 48W (Heater on) Max. 18W (Heater off) |
| Dimensions | 147 x 375 x 322 mm |
| Weight | 4.3kg |
| Certifications |
Weather-proof IP67- and NEMA 4X-rated housing Vandal-proof IK10-rated housing (camera body only) CE, LVD, FCC Class A, VCCI, C-Tick, UL, EN50121-4 EMC CE (EN55032, EN55024 Class A, EN50121-4), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A) Safety UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471) Environment IK10 (IEC 62262), IP66/67 (IEC 60529) IA BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1) |
| Operating Temperature | Starting Temperature: -40°C ~ 60°C (-40°F ~ 140°F) Working Temperature: -50°C ~ 60°C (-58°F ~ 140°F) |
| Humidity | 0.9 |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Packing Contents | Wall mount bracket, screws, waterproof connectors, quick installation guide, alignment sticker, L-wrench, software CD, desiccant bags, I/O combo cable |
| Marca | Vivotek |
|---|---|
| MPN: | IZ9361-EH |
