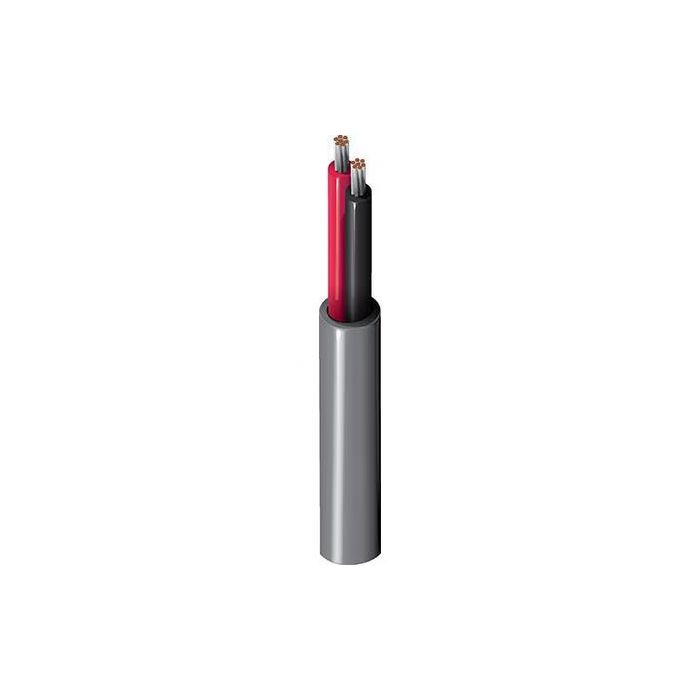

Belden 8442 060U500 multi-conductor cable, 2 conductors, 22 awg, 7x30 strands, tinned copper, twisted pair, pvc insulation, jacket
Precio especial $7,883.00 IVA incluido + Envio $150 MXN
Antes $9,144.00
Disponible 1000 Pzas
Antes $9,144.00
Disponible 1000 Pzas
sku: 8442 060U500
pub
MX0000105574
8442
8442 - Electronic, 2 C #22 Str TC, PVC Ins, PVC Jkt, CMG
Electronic, 2 Conductor 22AWG (7x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMGbr
Product Overview
| Suitable Applications: | low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring |
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 2 | 22 AWG | 7x30 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | PVC - Polyvinyl Chloride | 0.016 in (0.41 mm) | 0.060 in (1.5 mm) | Black, Red |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.025 in (0.64 mm) | 0.170 in (4.32 mm) |
| Overall Cable Diameter (Nominal): | 0.170 in (4.32 mm) |
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Max. Current |
|---|---|---|---|
| Conductor(s) | 17.8 Ohm/1000ft | 30 pF/ft (98 pF/m) | 2.9 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 80°C | -20°C to +80°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 1.7 in (43 mm) | 1.7 in (43 mm) |
| Max. Pull Tension: | 18 lbs (8.2 kg) |
| Bulk Cable Weight: | 14 lbs/1000ft |
Standards and Compliance
| Environmental Suitability: | Indoor |
| Flammability / Reaction to Fire: | UL 1685 FT4 Loading, FT4, IEC 60332-1-2 |
| CPR Compliance: | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| NEC / UL Compliance: | Article 800, CMG |
| CEC / C(UL) Compliance: | CMG |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
| Plenum Number: | 88442, 82442 |
History
| Update and Revision: | Revision Number: 0.517 Revision Date: 02-03-2025 |
Part Numbers
Variants
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 8442 060100 | Chrome | Reel | 100 ft | 612825207238 | |
| 8442 060500 | Chrome | Reel | 500 ft | 612825207269 | |
| 8442 060U500 | Chrome | UnReel | 500 ft | 612825207221 | |
| 8442 0601000 | Chrome | Reel | 1,000 ft | 612825207245 | C |
| 8442 060U1000 | Chrome | UnReel | 1,000 ft | 612825207214 | |
| 8442 0605000 | Chrome | Reel | 5,000 ft | 612825207276 | C Z |
| 8442 06010000 | Chrome | Reel | 10,000 ft | 612825207252 | C Y |
| Marca | Belden |
|---|---|
| MPN: | 8442 060U500 |
