Belden 9967 0091000 - electronic, 3 c #22 str tc, pvc-nyl ins, oa tc brd, pvc jkt
Precio especial $286.00 IVA incluido + Envio $150 MXN
Antes $332.00
Disponible 12000 Pzas
Antes $332.00
Disponible 12000 Pzas
sku: 9967 0091000
pub
MX0000105568
9967

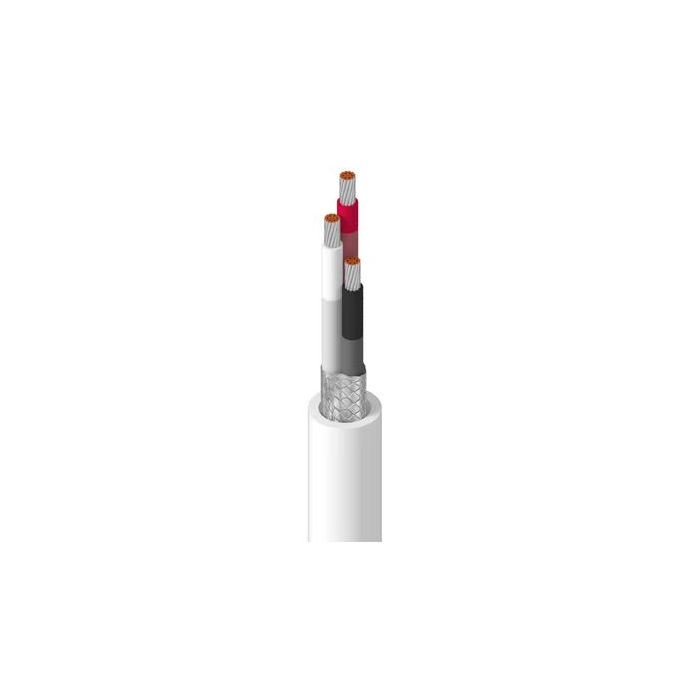

9967 - Electronic, 3 C #22 Str TC, PVC-NYL Ins, OA TC Brd, PVC Jkt
Electronic, 3 Conductor 22AWG (19x34) Tinned Copper, PVC-NYL Insulation, Overall Tinned Copper Braid(90%) Shield, PVC Outer Jacketbr
Product Overview
| Suitable Applications: | MIL-W-16878 (Type B) Spec; up to 600V analog signals ; up to 600V voltage control |
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 3 | 22 | 19x34 | TC - Tinned Copper |
Insulation
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|
| PVC/Nylon - Polyvinyl Chloride + Nylon | 0.0125 in (0.318 mm) | 0.056 in (1.4 mm) | White, Black, Red |
| Nylon | 0.003 in (0.076 mm) |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Braid | Tinned Copper (TC) | 90% |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.02 in (0.51 mm) | 0.184 in |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Max. Current |
|---|---|---|---|
| 15.3 Ohm/1000ft | 45 pF/ft (150 pF/m) | 88 pF/ft (290 pF/m) | 2.8 Amps per Conductor at 25ºC |
Voltage
| Voltage Rating |
|---|
| 600 V |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 105°C | -20°C To +105°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 1.84 in (46.7 mm) | 1.84 in |
| Max. Pull Tension: | 28.5 lbs (12.9 kg) |
| Bulk Cable Weight: | 24 lbs/1000ft |
Standards and Compliance
| CPR Compliance: | CPR Euroclass: Eca |
| Military Compliance: | MIL-W-16878E/17 (insulated conductor) |
| European Directive Compliance: | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision: | Revision Number: 0.514 Revision Date: 02-03-2025 |
Part Numbers
Variants
| Item # | Color | UPC | Footnote |
|---|---|---|---|
| 9967 009100 | White | 612825265344 | |
| 9967 0091000 | White | 612825265351 | C |
| 9967 009500 | White | 612825265368 |
| Marca | Belden |
|---|---|
| MPN: | 9967 0091000 |
