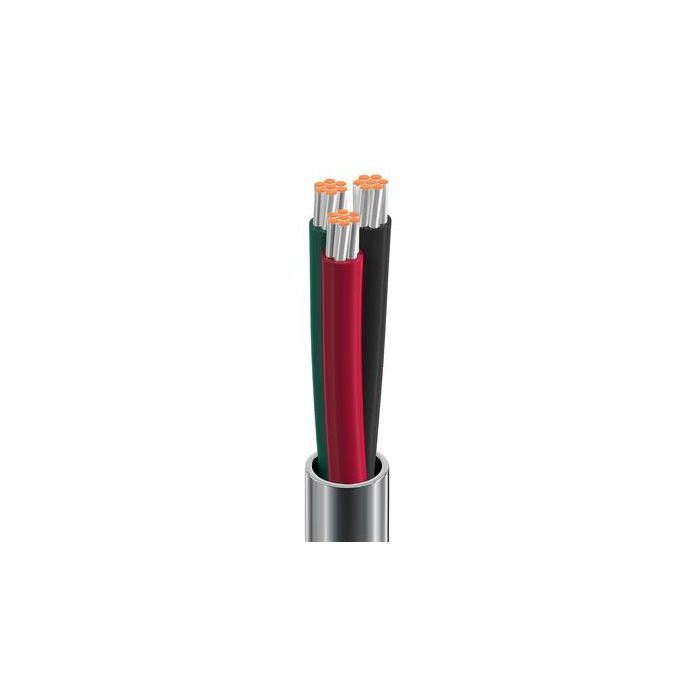

Belden 8443 060U500 multi-conductor cable, 3 conductors, 22 awg, 7x30 strands, tinned copper, pvc insulation, jacket
Precio especial $16,584.00 IVA incluido + Envio $150 MXN
Antes $19,237.00
Disponible 500 Pzas
Antes $19,237.00
Disponible 500 Pzas
sku: 8443 060U500
pub
MX0000105539
8443
8443 - Electronic, 3 C #22 Str TC, PVC Ins, PVC Jkt, CMG
Electronic, 3 Conductor 22AWG (7x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMGbr
Product Overview
| Suitable Applications: | low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring |
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 3 | 22 AWG | 7x30 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | PVC - Polyvinyl Chloride | 0.011 in (0.28 mm) | 0.050 in (1.3 mm) | Black, Red, Green |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.032 in (0.81 mm) | 0.172 in (4.37 mm) |
| Overall Cable Diameter (Nominal): | 0.172 in (4.37 mm) |
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Max. Current |
|---|---|---|---|
| Conductor(s) | 17.8 Ohm/1000ft | 34 pF/ft (110 pF/m) | 2.9 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V (CMG), 150 V (AWM 2576) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 80°C | -20°C to +80°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 1.7 in (43 mm) | 1.7 in (43 mm) |
| Max. Pull Tension: | 27 lbs (12 kg) |
| Bulk Cable Weight: | 90 lbs/1000ft |
Standards and Compliance
| Environmental Suitability: | Indoor |
| Flammability / Reaction to Fire: | UL 1685 FT4 Loading, FT4, IEC 60332-1-2 |
| CPR Compliance: | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| NEC / UL Compliance: | Article 800, CMG |
| AWM Compliance: | AWM 2576 |
| CEC / C(UL) Compliance: | CMG |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision: | Revision Number: 0.507 Revision Date: 02-03-2025 |
Part Numbers
Variants
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 8443 060100 | Chrome | Reel | 100 ft | 612825207320 | |
| 8443 060500 | Chrome | Reel | 500 ft | 612825207344 | |
| 8443 060U500 | Chrome | UnReel | 500 ft | 612825207313 | |
| 8443 0601000 | Chrome | Reel | 1,000 ft | 612825207337 | C |
| 8443 060U1000 | Chrome | UnReel | 1,000 ft | 612825207306 | |
| 8443 0605000 | Chrome | Reel | 5,000 ft | 612825207351 |
| Marca | Belden |
|---|---|
| MPN: | 8443 060U500 |
