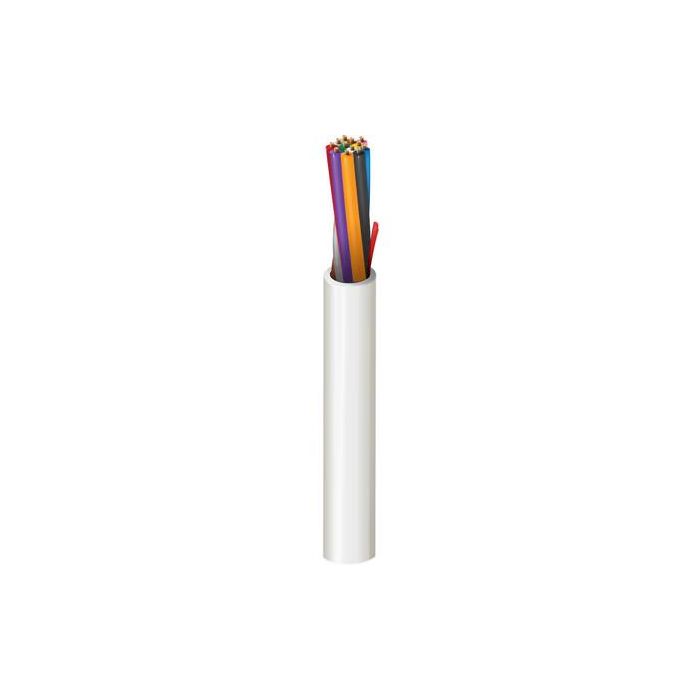

Belden 5409UE 0081000 | multi-conductor - commercial applications 12 20 awg pp frpvc gray
Precio especial $17,886.00 IVA incluido + Envio $150 MXN
Antes $20,748.00
Disponible 83000 Pzas
Antes $20,748.00
Disponible 83000 Pzas
sku: 5409UE 0081000
pub
MX0000105536
5409UE
5409UE - Security & Sound, #20-12c, BC, CMR
Security & Sound Cable, Riser-CMR, 12-20 AWG stranded bare copper conductors with polypropylene insulation, PVC jacket with ripcordbr
Product Overview
| Suitable Applications: | Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls |
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 12 | 20 | 7x28 | BC - Bare Copper |
Insulation
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|
| PP - Polypropylene | 0.008 in (0.20 mm) | 0.062 in (1.6 mm) | Black, Red, White, Green, Brown, Blue, Orange, Yellow, Purple, Gray, Pink, Tan |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.017 in (0.43 mm) | 0.252 in (6.40 mm) | Yes |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Max. Current |
|---|---|---|
| 10.82 Ohm/1000ft | 24.7 pF/ft (81.0 pF/m) | 2.6 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 75°C | -20°C To +75°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 2.52 in (64.0 mm) | 2.52 in (64.0 mm) |
| Max. Pull Tension: | 151.2 lbs (68.58 kg) |
| Bulk Cable Weight: | 53 lbs/1000ft |
Standards and Compliance
| Environmental Suitability: | Outdoor |
| Flammability / Reaction to Fire: | UL1666 Riser, FT4 |
| NEC / UL Compliance: | Article 800, CMR |
| CEC / C(UL) Compliance: | CMG |
| European Directive Compliance: | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Plenum Number: | 6409UE |
History
| Update and Revision: | Revision Number: 0.406 Revision Date: 02-03-2025 |
Part Numbers
Variants
| Item # | Color | UPC | Footnote |
|---|---|---|---|
| 5409UE 0081000 | Gray | 612825162315 | C |
| Marca | Belden |
|---|---|
| MPN: | 5409UE 0081000 |
