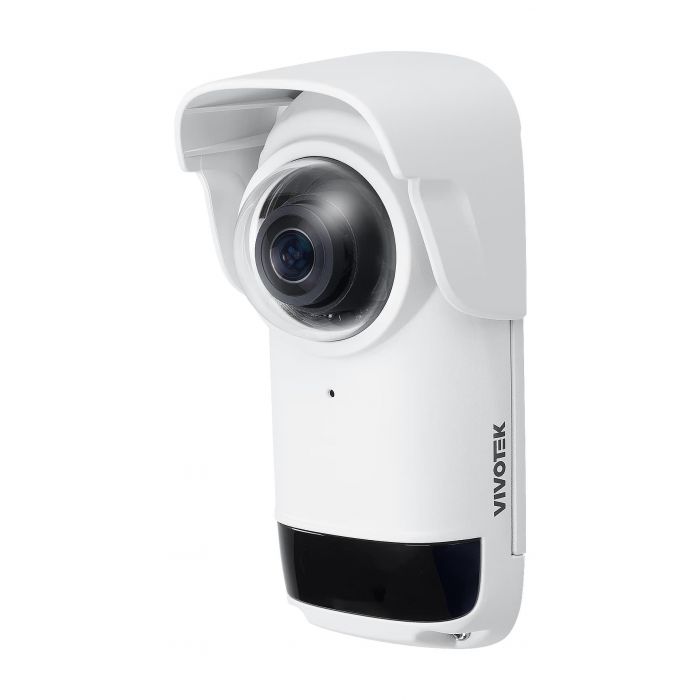

This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure that is suitable for safe outdoor use in areas at high risk of vandalism.
- Multimedia SoC CPU
- Removable IR cut filter enables day and night functionality
- ePTZ with 48x digital zoom
- WDR Pro
- Image settings include white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3D-DNR, HLM, and scene mode (auto)
- Adjustable exposure control and image sharpener
- Analytics include Vision Object Analytics (people/vehicle classification/attribute extraction), five-window video motion detection, people detection, vehicle detection, time filter, and Smart VCA (intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection, and crowd detection)
- Live viewing for up to ten clients
- 3-year free trial of Trend Micro IoT Security (brute force attack event, cyberattack event, and quarantine event)
- Compatible with Microsoft Windows 10, 8, and 7, macOS 10.12 (Chrome only), Chrome 58.0 or higher, Internet Explorer 10/11, and VLC 1.1.11 or higher
- System power and status LED indicators.
| Image Sensor |
1/2.8'-Type CMOS
|
| Focal Length |
1.47mm
|
| Field of View |
Horizontal: 180°
Vertical: 120° Diagonal: 180° |
| Built-In Microphone |
Yes
|
| Power I/O |
1x RJ45
|
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/2.8'-Type CMOS
|
| Sensor Resolution |
Effective: 5 Megapixel
|
| IR Cut Filter |
Yes
|
| Day/Night |
Yes
|
| DORI Coverage |
With 1.47mm Lens:
Detect: At 95.9 / 29.2 m Observe: At 38.3 / 11.7 m Recognize: At 19 / 5.8 m Identify: At 9.2 / 2.8 m |
Exposure Control
| Shutter Speed |
1/32000 to 1/5 Second
|
| Signal-to-Noise Ratio |
62 dB
|
| Minimum Illumination |
0.08 Lux (Color)
0 Lux (Black and White) |
Lens
| Focal Length |
1.47mm
|
| Max Digital Zoom |
48x
|
| Field of View |
Horizontal: 180°
Vertical: 120° Diagonal: 180° |
| Maximum Aperture |
f/2.7
|
Video
| Max IP Streaming |
H.264, H.265, MJPEG via RJ45
2560 x 1920 up to 30.00 fps |
| Multi-View Streaming |
Yes, 3 Streams
|
Control
| Camera Angle Adjustment |
Vertical: -20 to 20°
|
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, Password Protection, User Access Log
|
| Supported Protocols |
ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, ONVIF Profile T, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [1 TB Maximum]
|
| Other I/O |
1x RJ45
|
| 1- or 2-Way Audio |
One-Way
|
| Audio Formats |
AAC-LC, G.711, G.726, MP2
|
| Built-In Microphone |
Yes
|
| Memory |
2 GB RAM / 8000 MB Flash
|
| External Storage Options |
NAS
|
System Integration
| Analytics |
Face Detection, Intrusion Detection, Loitering, Motion Detection, Object Detection, People Detection, Vehicle Detection, Virtual-Line Crossing Detection
|
| Built-In Installation Aids |
Pixel Counter
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
No
|
Power
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x RJ45
|
| Power Consumption |
PoE: 6.96 W with IR Off
PoE: 10.26 W with IR On |
Environmental
| Operating Conditions |
-22 to 140°F / -30 to 60°C up to 98% Humidity
|
| Impact Resistance |
Impact-Resistant (IK10)
|
| Environmental Resistance |
Dust/Weather/Water-Resistant (IP66)
|
| Startup Temperature |
14 to 131°F / -10 to 55°C
|
General
| Certifications |
BIS, BSMI, CB, CE, EN, FCC, ICES, IEC, IEC/EN, RCM, UKCA, UL, VCCI
|
| Illumination |
4x IR LEDs up to 65.6 / 20 m
|
| OS Compatibility |
Windows 7 to 10 / macOS 10.12 Only
|
| Dimensions (W x H x D) |
2.4 x 6.3 x 2.8' / 60 x 160 x 72 mm
|
| Weight |
1.1 lb / 492 g (Body Only)
|
Packaging Info
| Package Weight |
2.86 lb
|
| Box Dimensions (LxWxH) |
9.6 x 7.5 x 4.8'
|
