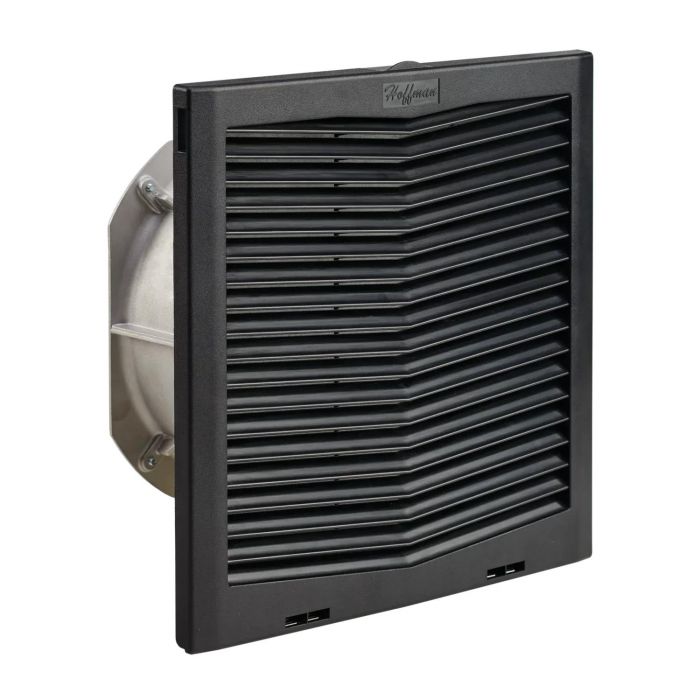

Hoffman HF1316423 hf13 side-mount filter fan, 115v 484cfm, black

Precio especial $12,864.00 IVA incluido + Envio $150 MXN
Antes $14,922.00
Disponible 2 Pzas
sku: HF1316423
pub
MX0000105464
Precios sujetos a cambios sin previo aviso
Pagos 100% seguros
Entrega Aprox.
Envio Nacional | Condicion: Nuevo
Logo

HF1316423

Catalog#: HF1316423

HF Side-Mount Filter Fans quickly install into enclosure with a click-fit design; no tools or screws required. Grilles open with the flick of a finger for easy filter replacement.

Industry Standards

UL/cUL Listed; File No. E482010

CE

EAC

Type 12 standard on all models

IP54 standard option on all models except HF13

IP55 standard option on all models except HF04

Caracteristicas

  • Click-Fit design quickly installs into enclosure wall; no tools or screws required
  • Opens with the flick of a finger for easy filter replacement
  • Enclosure side wall mounting
  • Reverse airflow option on HF13 models available to push/pull air through higher static pressure
  • Standard rope gasket provides proper seal to the enclosure
  • Similar cut-out sizes as other filter fan manufacturers
  • Terminal block connections
  • Optional thermostat available to save energy and extend service life
  • Hinged grille remains attach...
  • Size rage from 4 inch (102 mm) to 13 inch (325 mm)
  • Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
  • Service life hours from 40,000 to 100,000 hours
  • Operating temperature range of -4 F/-20 C to 149 F/65 C

ATRIBUTOS DEL PRODUCTO

Atributo valor
Article Number 34296
Airflow 484ft³/min
Nominal Voltage 115V
Height 12.8in
Width 12.82in
Depth 6.31in
Max Current 1.18A
Operating Temperature 14 – 131°F
Material Plastic
Finish Smooth Matte
Color Graphite Black
Color Code RAL 9011
Weight 11.6lb
UPC 783510342968
Standard Packaging Quantity 1.0000
Packing Quantity 1.0000
Más información
MarcaHoffman
MPN:HF1316423
