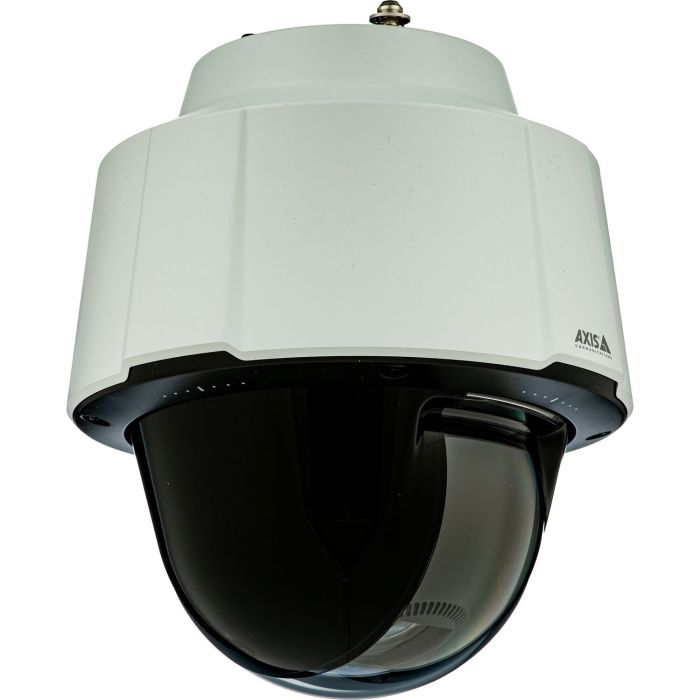

Axis 02414-001 security camera bulb ip outdoor 2688 x 1512 pixels wall
Precio especial $51,590.00 IVA incluido + Envio $150 MXN
Antes $59,844.00
Disponible 5 Pzas
Antes $59,844.00
Disponible 5 Pzas
sku: 02414-001
pub
MX0000105447
02414-001
This high-performance PTZ camera offers 4 MP image quality with 30x optical zoom and IR. Forensic WDR and Lightfinder 2.0 guarantee images with saturated colors and sharp details of moving objects even in challenging light or near darkness. It offers support for analytics and includes AXIS Object Analytics to detect and classify people and vehicles. This cost-effective camera includes built-in cybersecurity features to safeguard your system and prevent unauthorized access. Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements. Furthermore, you can pop it into an AXIS Q6100-E using AXIS TP6901-E Adapter Bracket and enjoy 360° overview for total situational awareness.
Technical Information
| Performance | |
|---|---|
| Preset points | Yes |
| Infrared (IR) cut-off filter | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Auto-tracking | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Design | |
| IK code | IK10 |
| Form factor | Bulb |
| Product colour | White |
| Mounting type | Wall |
| International Protection (IP) code | IP66 |
| Housing material | Plastic |
| Camera | |
| Minimum illumination | 0.1 lx |
| Field of view (FOV) angle | 57.1° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/62500 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Camera pixel size | 2.9 µm |
| Lens viewing angle, horizontal | 57.1° |
| Lens viewing angle, vertical | 34.4° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 1/2.9' |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Zoom capability | Yes |
| Optical zoom | 30x |
| Digital zoom | 12x |
| Focal length range | 4.6-133 mm |
| Night vision | |
| Night vision | Yes |
| LED type | IR |
| Video | |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Image stabilizer | Yes |
| Gain control type | Auto |
| Bit rate control | Variable Bit Rate (VBR) |
| Video compression formats | H.264, H.264B, H.264H, H.264M, H.265, M-JPEG |
| Maximum resolution | 2688 x 1512 pixels |
| Supported graphics resolutions | 2688 x 1512 |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Total megapixels | 4 MP |
| Video recording | Yes |
| Audio | |
| Built-in microphone | No |
| Audio system | 2-way |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM |
| Audio detection | Yes |
| Network | |
| Bluetooth | No |
| Networking standards | IEEE 802.1x |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Live view | Yes |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), SDHC, SDXC |
| Ports & interfaces | |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Hard drive | |
| Built-in HDD | No |
| Technical details | |
| Video compression formats | H.264, H.264B, H.264H, H.264M, H.265, M-JPEG |
| Type | IP security camera |
| Form factor | Bulb |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Product colour | White |
| Mounting type | Wall |
| Auto-tracking | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Progressive scan | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | REACH, RoHS |
| Security | |
| Video motion detection | Yes |
| IP address filtering | Yes |
| Password protection | Yes |
| Pixel counter | Yes |
| Digest authentication | Yes |
| Network access storage (NAS) | Yes |
| Material | |
| Housing material | Plastic |
| Management features | |
| Remotely operated | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 30 W |
| Power consumption (typical) | 12 W |
| DC output voltage | 28 |
| Certificates | |
| International Protection (IP) code | IP66 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Height | 9.54' (242.2 mm) |
| Diameter | 8.07' (20.5 cm) |
| Weight | 5.51 lbs (2.5 kg) |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Video compression formats | H.264, H.264B, H.264H, H.264M, H.265, M-JPEG |
| Marca | Axis |
|---|---|
| MPN: | 02414-001 |
