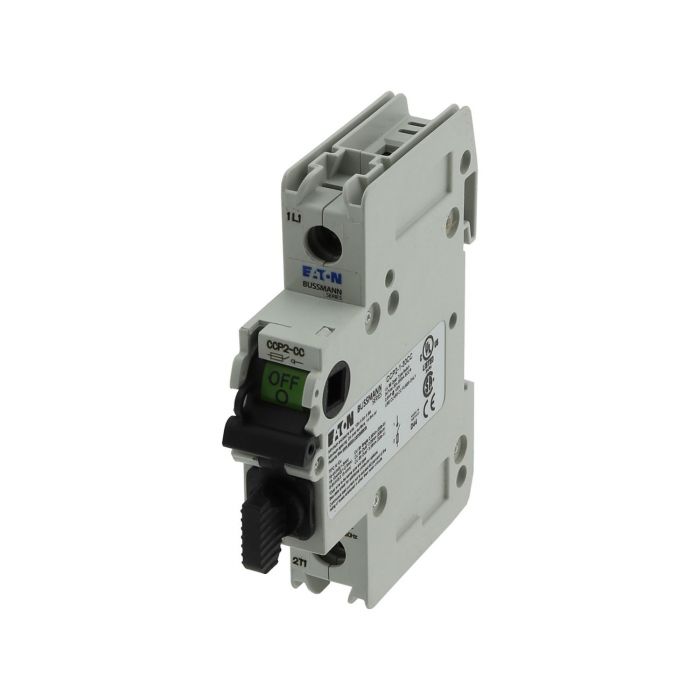

Bussmann CCP2-1-30CC eaton series ccp ul98 fusible disconnect, 30a, single-pole, 60 hz, class cc, 200 compact circuit protector
Precio especial $1,467.00 IVA incluido + Envio $150 MXN
Antes $1,702.00
Disponible 3 Pzas
Antes $1,702.00
Disponible 3 Pzas
sku: CCP2-1-30CC
pub
MX0000105251
CCP2-1-30CC
General Specifications | |
---|---|
Product Name |
Eaton Bussmann series CCP UL98 fusible disconnect
|
Catalog Number |
CCP2-1-30CC
|
UPC |
051712709163
|
Product Length/Depth |
3.9 in
|
Product Height |
3.1 in
|
Product Width |
0.7 in
|
Product Weight |
1.46 lb
|
Compliances |
RoHS Compliant
|
Certifications |
UL 98
|
Especificaciones del producto | |
Special features |
Finger Safe, 1/4' LOTO
|
Type |
UL98 fusible disconnect
|
Amperage Rating |
30A
|
Fuse type |
Class CC
|
Number of poles |
Single-pole
|
Voltage rating |
347 Vac, 125 Vdc
|
Frequency rating |
50/60 Hz
|
Application |
Fused Disconnect Switch
|
Short-circuit rating |
200 kA
|
Suitable for fuses |
LP-CC-1/2 to LP-CC-30
FNQ-R-15 to FNQ-R-20 |
Marca | Otros |
---|---|
MPN: | CCP2-1-30CC |
