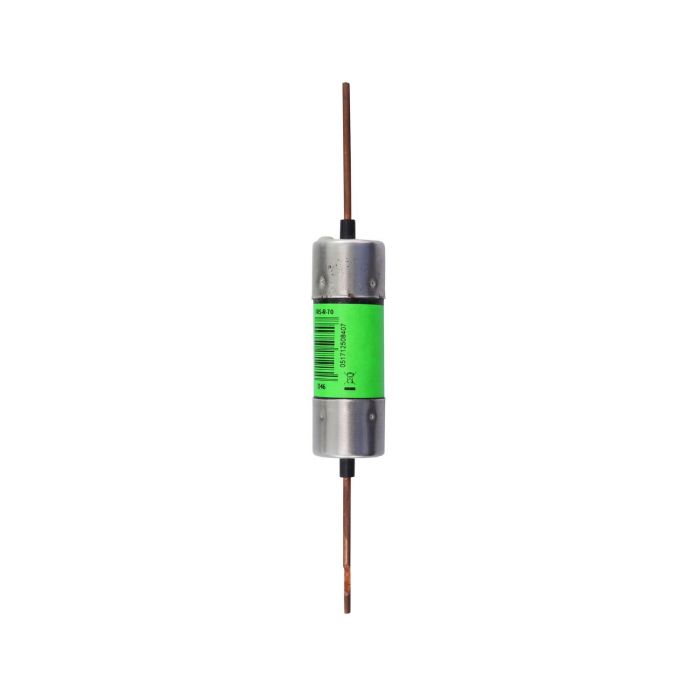

Bussmann FRS-R-70 eaton fusible doble elemento clase rk5 600vca/250vcd, series class fuse, frs-r, time-delay, dual-element, current limiting 70 a, non-indicating interrupting rating of 200 ka at 600 vac and 20 300 vdc
Precio especial $1,221.00 IVA incluido + Envio $150 MXN
Antes $1,416.00
Disponible 4 Pzas
Antes $1,416.00
Disponible 4 Pzas
sku: FRS-R-70
pub
MX0000105249
FRS-R-70
General Specifications | |
---|---|
Product Name |
Eaton Bussmann series FRS-R fuse
|
Catalog Number |
FRS-R-70
|
UPC |
051712508407
|
Product Length/Depth |
7.88 in
|
Product Height |
1.11 in
|
Product Width |
1.11 in
|
Product Weight |
0.35 lb
|
Compliances |
CE Marked
|
Especificaciones del producto | |
Type |
Current-limiting time-delay fuse
|
Application |
Combination starters, motor control centers, machinery disconnects, power panelboards
|
Amperage Rating |
70 A
|
Number of elements |
Dual
|
Class |
Class RK5
|
Interrupt rating |
20 kAIC at 300 Vdc
200 kAIC at 600 Vac |
Fuse indicator |
Non-indicating
|
Connection |
Blade end x blade end
|
Response time |
10 sec at 500%
|
Packaging type |
Standard
|
Voltage rating |
600 Vac, 300 Vdc
|
Marca | Otros |
---|---|
MPN: | FRS-R-70 |
