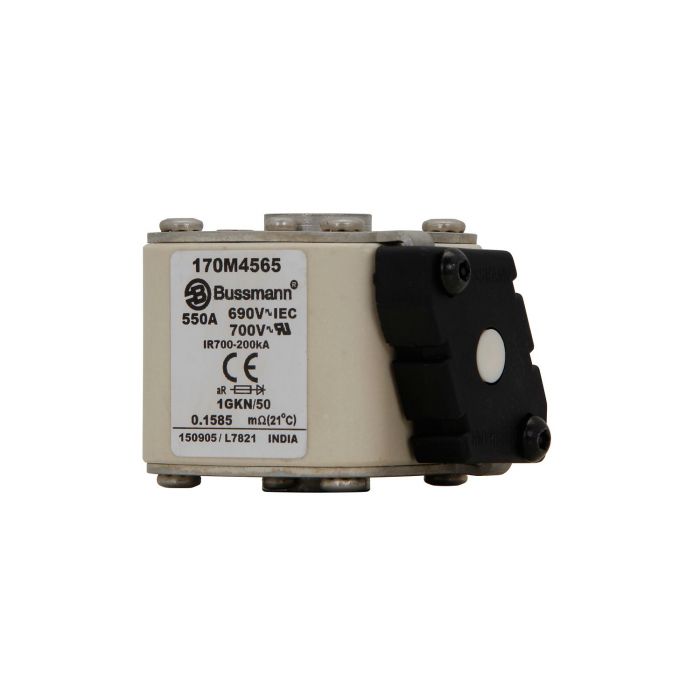

Bussmann 170M4565 eaton fusible semiconductor tubo de ceramica europeo 550a 690v 1gkn50 ar uc fuse-link, high speed, 550 a, ac 690 v, size 1, 53 x 69 51 mm, ar, iec, ul, single indicator
Precio especial $1,389.00 IVA incluido + Envio $150 MXN
Antes $1,611.00
Disponible 2 Pzas
Antes $1,611.00
Disponible 2 Pzas
sku: 170M4565
pub
MX0000105226
170M4565
| General Specifications | |
|---|---|
| Product Name |
Eaton Bussmann series high speed square body fuse
|
| Catalog Number |
170M4565
|
| UPC |
051712799171
|
| EAN |
5027590453554
|
| Product Length/Depth |
73 mm
|
| Product Height |
52 mm
|
| Product Width |
170 mm
|
| Product Weight |
397.3333333 g
|
| Compliances |
CE Marked
RoHS Compliant |
| Certifications |
UL Recognized
IEC Rated |
| Especificaciones del producto | |
| Amperage Rating |
550 A
|
| Voltage rating |
690 V (IEC), 700 V (UL)
|
| Voltage type |
AC
|
| Clearing (I2T) |
230000 at 660 V
|
| Pre arc (I2T) |
34000
|
| Watt losses |
75 W
|
| Breaking capacity |
200 kA
|
| Class |
Class aR
|
| Especificaciones del producto | |
| Application |
Semiconductor, DC Common bus, DC drives, power converters/rectifiers
|
| Fuse type |
Flush end
GKN/Type K indicator for micro |
| Fuse indicator |
Centre fuse status indicator
|
| Fuse size |
1
|
| Fitted with: |
Type K Indicator for micro
|
| Marca | Otros |
|---|---|
| MPN: | 170M4565 |
