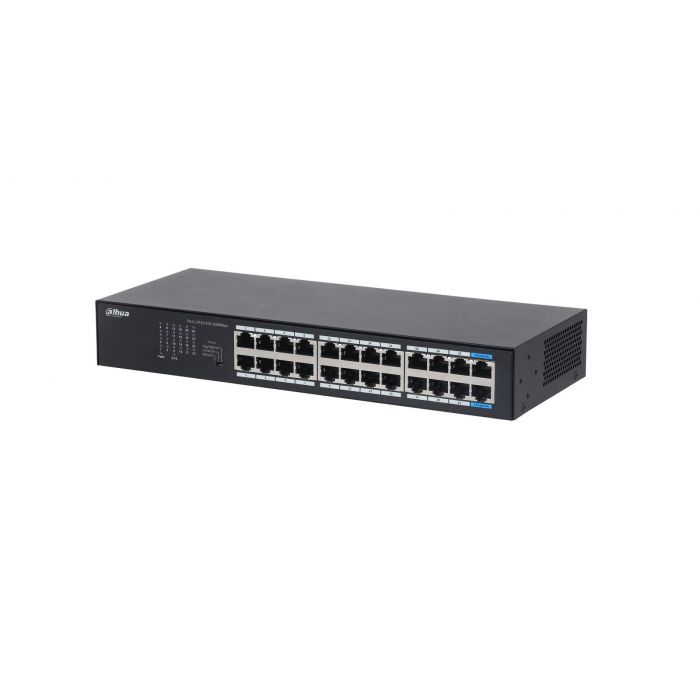

Dahua DH-S3024-24GT - switch gigabit de 24 puertos no administrable, capa 2, carcasa metálica, switching 48g, tasa reenvío 35.7 mbps, memoria buffer 8.4mb, y protección avanzada contra descargas. #mci1q125
Precio especial $1,959.00 IVA incluido + Envio $150 MXN
Antes $2,272.00
Disponible 175 Pzas
Antes $2,272.00
Disponible 175 Pzas
sku: DH-S3024-24GT
pub
MX0000105025
DH-S3024-24GT
| Puertos e Interfaces | |
|---|---|
| Cantidad de puertos básicos de conmutación RJ-45 Ethernet | 24 |
| Puertos tipo básico de conmutación RJ-45 Ethernet | Gigabit Ethernet (10/100/1000) |
| Número de módulos SFP instalados | 0 |
| Número de módulos SFP+ instalados | 0 |
| Gigabit Ethernet (cobre), cantidad de puertos | 24 |
| Diseño | |
| Montaje en rack | Si |
| Apilable | Si |
| Control de energía | |
| Fuente de energía | CC |
| Fuente de alimentación incluida | Si |
| Red | |
| Soporte 10G | No |
| Características de administración | |
| Tipo de interruptor | No administrado |
S3024-24GT
24-Port Unmanaged Gigabit Switch
> 24 × RJ-45 10/100/1000 ports.
> The all-gigabit ports transmit data without lag.
> Features aggregation mode which aggregates uplink ports.
> Features isolation mode which isolates all the ports from each other.
> With its solid full metal design, the device has great heat dissipation and no fan.
> Supports rack mount, wall mount and desktop mount.
> The all-gigabit ports transmit data without lag.
> Features aggregation mode which aggregates uplink ports.
> Features isolation mode which isolates all the ports from each other.
> With its solid full metal design, the device has great heat dissipation and no fan.
> Supports rack mount, wall mount and desktop mount.
| Basic | |
| Layer | Layer 2 |
| Switching Capacity | 48 Gbps |
| Packet Forwarding Rate | 35.712 Mpps |
| Description of Function Slots | Port 1-22: 22 × RJ-45 10/100/1000 Mbps; Port 23-24: 2 × RJ-45 10/100/1000 Mbps (uplink) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Power Supply | Built in power supply: 100–240 VAC, 50/60 Hz, 0.4 A |
| Power Consumption | Idling: 2.7 W; Full load: 12.3 W |
| Statics Protection | Air discharge: 8 kV; Contact discharge: 6 kV |
| Lightning Protection | Common mode: 2 kV; Differential mode: 0.5 kV |
| Net Weight | 0.83 kg (1.82 lb) |
| Gross Weight | 1.34 kg (2.95 lb) |
| Product Dimensions | 294 mm × 119 mm × 44 mm (11.57' × 4.68' × 1.73') (L × W × H) |
| Packaging Dimensions | 353 mm × 215 mm × 75 mm (13.9' × 8.46' × 2.95') (L × W × H) |
| Casing Material | Sheet Metal |
| Installation | Desktop mount; wall mount; rack mount |
| Certifications | CE |
| Hardware | |
| DIP Switch | Default: Default setting Post isolation: Prevents traffic from being sent between ports 1-22, but allows ports 1-22 to send its traffic to the uplink ports 23-24. These uplink ports can also send their traffic to 1-22. Port aggregation: Aggregates uplink ports. |
| Performance | |
| Packet Buffer Size | 8.4 Mbit |
| Jumbo Frame | 12K Byte |
| MAC Table Size | 16K |
| Communication Standard | IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3ad |
| Feature | |
| Link Aggregation | Static link aggregation |
| Port Feature | IEEE 802.3x traffic control |
| IEEE 802.3x Flow Control | Yes |
| General | |
| Packing List | 1 × User Manual; 1 × Legal and Regulatory Information; 1 × Power Cord; 1 × Rack-mounting Kit; |
| Marca | Dahua |
|---|---|
| MPN: | DH-S3024-24GT |
