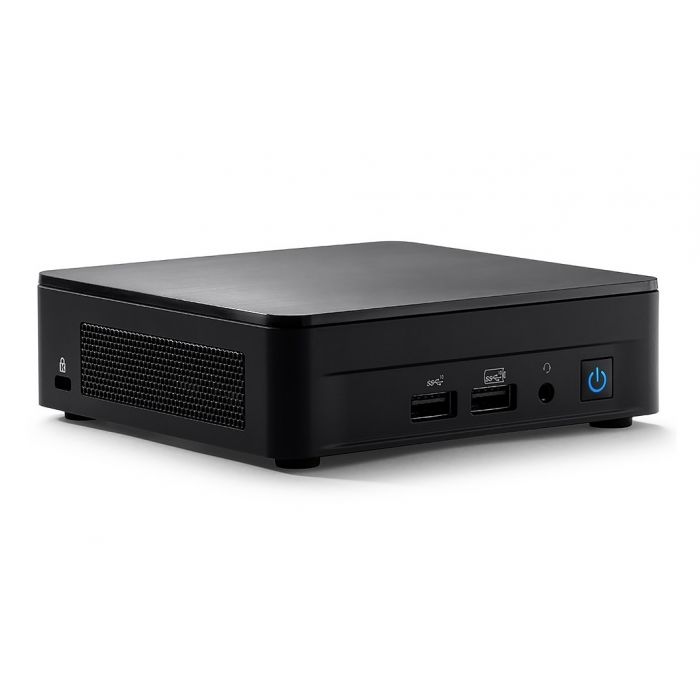

Asus RNUC12WSKI70001 intel nuc 12 pro kit nuc12wski7 ucff black i7-1260p

Precio especial $13,035.00 IVA incluido + Envio $150 MXN
Antes $15,121.00
Disponible 0 Pzas
Agotado
pub
MX0000104962
Precios sujetos a cambios sin previo aviso
Pagos 100% seguros
Entrega Aprox.
Envio Nacional | Condicion: Nuevo

RNUC12WSKI70001

Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel® AES New Instructions
Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.

Intel® ME Firmware Version
Intel® Management Engine Firmware (Intel® ME FW) uses built-in platform capabilities and management and security applications to remotely manage networked computing assets out-of-band.

Max Turbo Frequency
Max Turbo Frequency is the maximum single-core frequency at which the processor is capable of operating using Intel® Turbo Boost Technology and, if present, Intel® Turbo Boost Max Technology 3.0 and Intel® Thermal Velocity Boost. Frequency is typically measured in gigahertz (GHz), or billion cycles per second.

Intel® HD Audio Technology
Intel® High Definition Audio (Intel® HD Audio) is capable of playing back more channels at higher quality than previous integrated audio formats. In addition, Intel® HD Audio has the technology needed to support the latest and greatest audio content.

Integrated Graphics
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.

Intel® Optane™ Memory Supported
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.

Intel® Platform Trust Technology (Intel® PTT)
Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.

Technical Information

Motherboard
Motherboard form factor UCFF
Number of processors supported 1
Processor
Thermal Design Power (TDP) 35 W
Built-in processor Yes
Processor model i7-1260P
Processor boost frequency 4.7 GHz
Processor threads 16
Processor cores 12
Processor family Intel® Core™ i7
Number of processors supported 1
Processor manufacturer Intel
CPU configuration (max) 1
Processor cache 18 MB
Processor generation 12th gen Intel® Core™ i7
Memory
Memory voltage 1.2 V
Memory slots type SO-DIMM
Number of memory slots 2
Memory channels Dual-channel
ECC No
Supported memory types DDR4-SDRAM
Supported memory clock speeds 3200 MHz
Maximum internal memory 64 GB
Number of DIMM slots 2
Video
On-board graphics card No
Graphics card family Intel
Storage
Supported storage drive types SSD
Storage drive sizes supported M.2
Storage drive interface M.2, PCI Express
Number of storage drives supported 2
Card reader integrated No
SSD form factor M.2
NVMe Yes
Graphics
Number of displays supported 4
On-board graphics card No
Graphics card family Intel
On-board graphics card model Intel Iris Xe Graphics
Audio
Intel® High Definition Audio (Intel® HD Audio) Yes
Audio output channels 7.1 channels
Built-in speaker(s) No
Network
Wi-Fi standards Wi-Fi 6E (802.11ax)
Bluetooth version 5.3
Bluetooth Yes
Ethernet LAN Yes
Wi-Fi Yes
LAN controller Intel I225-V
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
WLAN controller model Intel Wi-Fi 6E AX211
Ports & interfaces
Serial port via internal header No
Combo headphone/mic port Yes
DC-in jack Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
HDMI version 2.1
DisplayPorts quantity 1
USB 2.0 ports quantity 1
HDMI ports quantity 2
Ethernet LAN (RJ-45) ports 1
M.2 card slot (wireless) 2230 (E-key) (E)
USB ports quantity 4
M.2 card slot (storage) 2280 NVMe (M); 2242 SATA (B)
Thunderbolt 4 ports quantity 2
Expansion slots
PCI Express slots version 4.0
Design
Motherboard form factor UCFF
Product type Mini PC barebone
Cable lock slot type Kensington
Cable lock slot Yes
ARK ID 121637
On/off switch Yes
LED indicators Yes
Cooling type Active
Product colour Black
Chassis type UCFF
Status Launched
Performance
Motherboard form factor UCFF
Windows operating systems supported Windows 10 IoT Enterprise, Windows 10 x64, Windows 11 x64
Linux operating systems supported Yes
BIOS type EEPROM
Number of displays supported 4
Trusted Platform Module (TPM) version 2.0
Trusted Platform Module (TPM) Yes
Number of processors supported 1
Compatible operating systems Windows 10 IoT Enterprise*|Linux*
Audio output channels 7.1 channels
Commodity Classification Automated Tracking System (CCATS) G157815L2
Harmonized System (HS) code 8471500150
Export Control Classification Number (ECCN) 5A992C
Processor special features
Intel ME Firmware Version 16
Thermal Monitoring Technologies Yes
Intel VT-x with Extended Page Tables (EPT) Yes
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel Trusted Execution Technology Yes
Intel® Hyper Threading Technology (Intel® HT Technology) Yes
Intel Flex Memory Access Yes
Execute Disable Bit Yes
Intel® AES New Instructions (Intel® AES-NI) Yes
Intel® Optane™ Memory Ready No
Intel® High Definition Audio (Intel® HD Audio) Yes
Embedded options available No
Intel® Platform Trust Technology (Intel® PTT) Yes
Intel Virtualization Technology (VT-x) Yes
Colour
Product colour Black
Power
DC input voltage 12 - 20 V
Power supply type External AC adapter
Power supply 120 W
Technical details
BIOS type EEPROM
Intel® AES New Instructions (Intel® AES-NI) Yes
Cable lock slot type Kensington
Cable lock slot Yes
Intel® High Definition Audio (Intel® HD Audio) Yes
Embedded options available No
Trusted Platform Module (TPM) version 2.0
Trusted Platform Module (TPM) Yes
Processor cores 12
Cooling type Active
Chassis type UCFF
Sustainability certificates China Energy Label (CEL), ENERGY STAR, ErP
Compliance certificates REACH, RoHS
ARK ID 121637
Internal I/O
Number of SATA connectors 1
Packaging data
Power cord included Yes
Indication
LED indicators Yes
Software
Windows operating systems supported Windows 10 IoT Enterprise, Windows 10 x64, Windows 11 x64
Linux operating systems supported Yes
Compatible operating systems Windows 10 IoT Enterprise*|Linux*
Management features
On/off switch Yes
Features
Number of displays supported 4
Logistics data
Harmonized System (HS) code 8471500150
Sustainability
Sustainability certificates China Energy Label (CEL), ENERGY STAR, ErP
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Width 117 mm
Depth 112 mm
Height 37 mm
Packaging content
Power cord included Yes
Other features
DC input voltage 12 - 20 V
Embedded options available No
Number of SATA connectors 1
Chassis type UCFF
Additional headers Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
Launch date Q3’22
