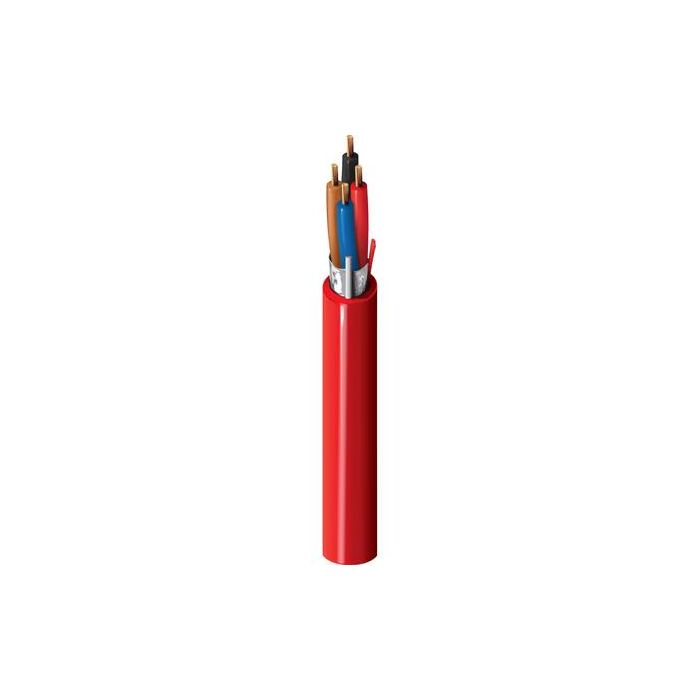

Belden 5302FL 002U1000 cable para alarma blindado contra incendios forro pvc rojo cmr riser-fplr 4c/18awg 4 conductores calibre 18 awg multifilar 100% cobre bobina 1000 ft 305m
Precio especial $8,367.00 IVA incluido + Envio $150 MXN
Antes $9,706.00
Disponible 4 Pzas
Antes $9,706.00
Disponible 4 Pzas
sku: 5302FL 002U1000
pub
MX0000104933
5302FL
CABLE PARA ALARMA BLINDADO CONTRA INCENDIOS BELDEN 5302FL 002U1000 FORRO PVC ROJO CMR RISER-FPLR 4C/18AWG 4 CONDUCTORES CALIBRE 18 AWG MULTIFILAR 100% COBRE USO INTERIOR ESPECIAL PARA APLICACIONES ALARMA DE INCENDIO MONITORIZACIÓN DETECCIÓN CIRCUITOS BOBINA 1000 ft 305m
5302FL - Fire Alarm, #18-4c BC, Shielded, FPLR
Fire Alarm Cable, Riser-FPLR, 4-18 AWG stranded bare copper conductors with polyolefin insulation, overall Beldfoil® shield, PVC jacket with ripcordbr
Product Overview
| Suitable Applications: | Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification, Noisy Environment |
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 4 | 18 AWG | 7x26 | BC - Bare Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | PP - Polypropylene | 0.008 in (0.20 mm) | 0.062 in (1.6 mm) | Black, Red, Brown, Blue |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.017 in (0.43 mm) | 0.188 in | Yes |
| Overall Cable Diameter (Nominal): | 0.188 in |
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Max. Current |
|---|---|---|---|---|
| Conductor(s) | 6.5 Ohm/1000ft | 27 pF/ft (89 pF/m) | 48.5 pF/ft (159 pF/m) | 4 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 75°C | -20°C To +75°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 2.82 in (71.6 mm) | 2.82 in |
| Max. Pull Tension: | 95 lbs (43 kg) |
| Bulk Cable Weight: | 30 lbs/1000ft |
Standards and Compliance
| Environmental Suitability: | Indoor |
| Flammability / Reaction to Fire: | UL1666 Riser, FT4 |
| CPR Compliance: | CPR Euroclass: Eca |
| NEC / UL Compliance: | Article 760, FPLR |
| European Directive Compliance: | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Plenum Number: | 6302FL |
History
| Update and Revision: | Revision Number: 0.318 Revision Date: 02-03-2025 |
Part Numbers
Variants
| Item # | Color | UPC |
|---|---|---|
| 5302FL 002U1000 | Red | 612825159568 |
| Marca | Belden |
|---|---|
| MPN: | 5302FL 002U1000 |
