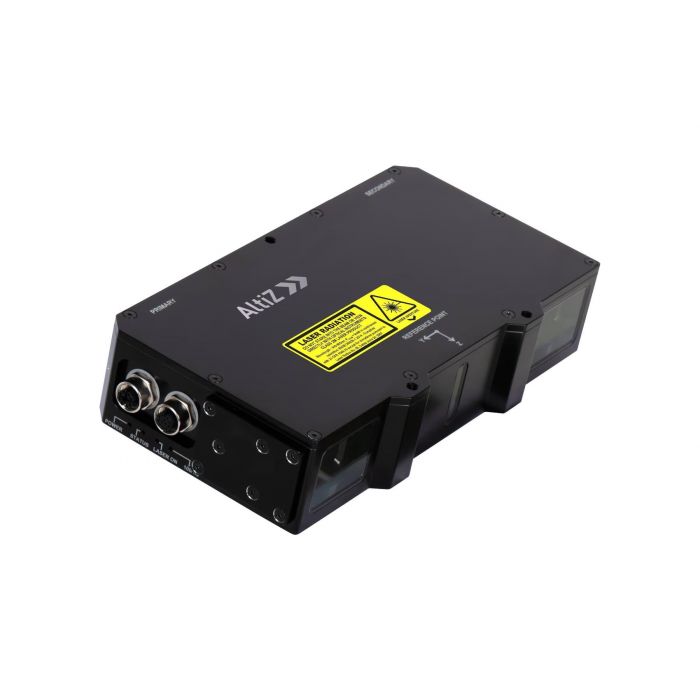

Zebra AZ1D4SR evm fis altiz 3d profile sensor with a near fov of 55mm range 70mm far 75mm and red (660nm) laser
Precio especial $295,772.00 IVA incluido + Envio $150 MXN
Antes $343,096.00
Disponible 4 Pzas
Antes $343,096.00
Disponible 4 Pzas
sku: AZ1D4SR
pub
MX0000104882
Unique algorithms running inside the sensor automatically generate various types of reliable 3D data-individual profiles, depth maps, or point clouds-obtained by smartly combining or selecting the pixel data from the two integrated image sensors, which is automatically sampled for a constant horizontal resolution.
A standard GigE Vision® interface means this powerful 3D sensor can work directly with either Matrox Imaging Library (MIL) X and Matrox Design Assistant X, as well as third-party vision software.
Zebra AltiZ at a glance
- Leverage dual-camera single-laser design to deliver exceptionally high 3D reproduction fidelity
- Gain from unique embedded algorithms to generate consistent profiles, depth maps, or point clouds
- Benefit from truly standard GigE Vision® interface to work directly with Matrox Imaging and third-party vision software
- Simplify cabling with Power-over-Ethernet (PoE) support
- Deploy confidently in tough industrial settings thanks to a solid IP67-rated2 aluminum housing and M12 connectors
- Benefit from several fastening points to facilitate fixing one or more sensors to gantries and robots
- Streamline sensor setup and verification via the Matrox Capture Works utility for Windows® and Linux®
| Model Name | AZ1D4SR |
| Series | AltiZ |
| Laser Color | Red (660 nm) |
| Working Distance | 100 mm |
| Z Range | 70 mm |
| Z Resolution | 4 – 8 µm |
| X FoV (near-far) | 55 – 75 mm |
| X Resolution | 38 µm |
Matrox AltiZ sensing cross-section
| Characteristic / Model | AZ1D4SR | AZ1D4SB | AZ1D4MR | AZ1D4LR |
|---|---|---|---|---|
| Laser color | Red 660 nm | Blue 405 nm | Red 660 nm | Red 660 nm |
| Working distance | 100 mm | 100 mm | 185 mm | 160 mm |
| Z Range | 70 mm | 70 mm | 235 mm | 385 mm |
| Z Resolution (near - far) | 4 – 8 μm | 4 – 8 μm | 9.5 – 34 μm | 10 - 89 μm |
| X FoV (near - far) | 55 - 75 mm | 55 - 75 mm | 85 - 165 mm | 110 - 310 mm |
| X Resolution | 38 μm | 38 μm | 82 μm | 157 μm |
| Matrox AltiZ | AZ1D4SR |
|---|---|
| 3D profile sensor: | |
| Profiling characteristics: | 1984 points per profile; Refer to maximum profile rates chart |
| Network interface: | Gigabit Ethernet |
| Data and command interface: | GigE Vision 2.2 with GenDC 1.1 |
| 3D data output (SFNC/PFNC): | Profile (RectifiedC/Coord3D_C16 or CalibratedABC_Grid/Coord3D_ABC32f); Depth map (RectifiedC/Coord3D_C16); Point cloud (CalibratedABC_Grid/Coord3D_ABC32f) |
| Digital I/Os: | Four (4) 24 V isolated inputs; Two (2) 24 V isolated outputs (5 KHz maximum) |
| Trigger source(s): | Quadrature encoder with A/B channels; External input trigger; Internal object detection trigger; Internal timers, counters, and/or logic blocks; External software trigger |
| Scan type: | Single-profile scan; Fixed-length scan (frame start); Variable-length scan (frame active) |
| Connectors: | M12-X 8-pin for network interface and power input; M12-A 12-pin for digital I/Os and alternate power input |
| Indicator LEDs: | Power, status, laser, and network speed |
| Power: | PoE: connect IEEE 802.3af compliant PSE, 44–57 Vdc, 12 W (default); Vaux: connect 24 Vdc +/- 10%, 0.5 A-rated power supply |
| Dimensions: | 233 x 121 x 48 mm (9.17 x 4.76 x 1.89 in) |
| Weight: | 1.5 Kg (3.3 lbs) |
| Operating temperature: | 0°C to 45°C (32°F to 113°F) |
| Ventilation requirements: | Natural convection |
| Certifications: | |
| Electromagnetic compatibility: | 47 CFR Part 15 Class A; ICES-001 Class A; EN 55011/EN 61326-1 industrial environment, Class A |
| Electrical safety: | CAN/CSA-C22.2 No. 61010-1-12, UL Std. No. 61010-1 (Third Edition) |
| Ingress protection: | IP67 as per IEC 60529:1989+AMD1:1999+AMD2:2013 |
| Software: | |
| Compatible software: | MIL X; Matrox Design Assistant X |
Matrox AltiZ conversion table for number of image-sensor lines to height (mm)
| Model / Number of lines | 48 | 64 | 128 | 256 | 512 | 1024 |
|---|---|---|---|---|---|---|
| AZ1D4SR / AZ1D4SB | 0.8 | 2 | 6.5 | 15.1 | 30.5 | 70 |
| AZ1D4M4 | 2 | 7 | 26 | 59 | 112 | 225 |
| AZ1D4L4 | N/A | 8 | 55 | 130 | 230 | 385 |
Hardware
|
Part number
|
Description
|
|---|---|
| AZ1D4SR | Matrox AltiZ 3D profile sensor with a near FoV of 55 mm, range of 70 mm, far FoV of 75 mm, and red (660 nm) laser |
| AZ1D4SB | Matrox AltiZ 3D profile sensor with a near FoV of 55 mm, range of 70 mm, far FoV of 75 mm, and blue (405 nm) laser |
| AZ1D4MR | Matrox AltiZ 3D profile sensor with a near FoV of 85 mm, range of 225 mm, far FoV of 165 mm, and red (660 nm) laser |
| AZ1D4LR | Matrox AltiZ 3D profile sensor with a near FoV of 110 mm, range of 385 mm, far FoV of 310 mm, and red (660 nm) laser |
Accessories
|
Part number
|
Description
|
|---|---|
| AZ-STARTER-KIT | Matrox AltiZ starter kit. Includes Matrox AltiZ mounting bracket, Ethernet cable, power and I/O cable, and I/O breakout box with its power supply |
| AZ1/4-20M6MOUNT | Matrox AltiZ mounting bracket. Includes four (4) M4 screws |
| M12-CBL-PWRIO/3 | 9.8 ft or 3 m cable to connect alternate power and discrete I/Os. M12 to open end |
| M12-CBL-ETH/5 | 16.4 ft (5 m) Ethernet cable for Matrox AltiZ. M12 to RJ45 connector. |
| IO-BREAKOUT-BOX | Matrox I/O Breakout Box for digital I/O and power connector for Matrox AltiZ. |
| IO-BOB-AC | 60 W AC/DC power adapter for the Matrox I/O Breakout Box. |
Software
|
Part number
|
Description
|
|---|---|
| Included with AltiZ | Licensed for the Matrox Design Assistant X/MIL X Interface (GigE Vision) run-time package. See Matrox Design Assistant X and MIL X datasheets for more information. MIL-Lite software available for download from www.matrox.com/imaging → Support → MIL-LITE X DOWNLOAD |
| Marca | Zebra |
|---|---|
| MPN: | AZ1D4SR |
