Dahua DHI-EVS5124S servidor ip de almacenamiento 24 bahías y 320 canales, ofrece un potente procesador multinúcleo 64 bits, 800 mbps, raid versátil, discos sata hot-swap fuente redundante 80plus platino 1+1.
Precio especial $168,640.00 IVA incluido + Envio $150 MXN
Antes $195,622.00
Disponible 1 Pzas
Antes $195,622.00
Disponible 1 Pzas
sku: DHI-EVS5124S
pub
MX0000104763
EVS5124S

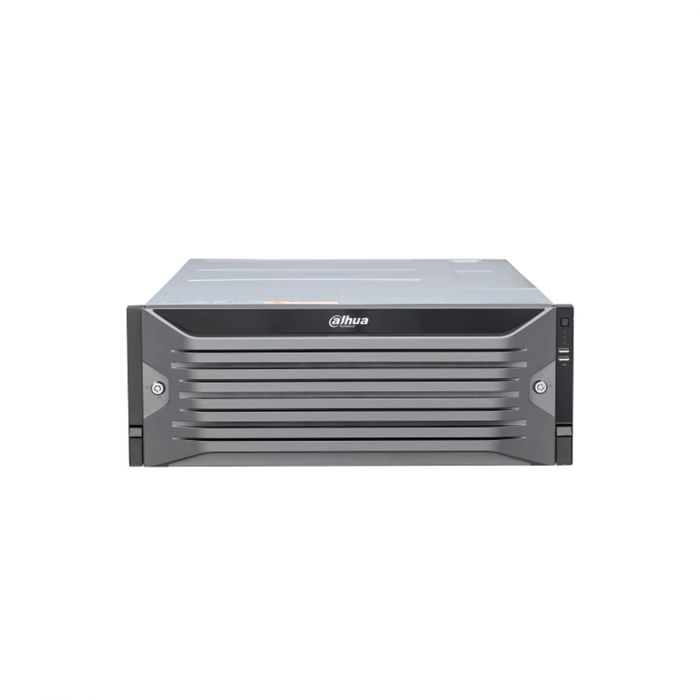

24-bay Embedded Video Storage
* La garantía de 5 años es aplicable a socios IPP, VSIP y SSIP. Para más detalles, por favor, contacte con su contacto de Dahua
> 64-bit high-performance multi-core processor.
> Max 320-ch IP camera inputs.
> Max 800 Mbps incoming/recording/forwarding bandwidth.
> 24 bays, SATA, Hot-Swap.
> Supports RAID 0/1/5/6/10/50/60,Hot spare.
> Supports video stream direct storage mode and IPSAN storage mode.
> Supports N+M cluster.
> Supports Automatic Network Replenishment (ANR).
> Modular and drawer-like design.
> 1+1 redundant 80PLUS platinum power supply.
| System | |
| Main Processor | 64-bit high-performance multi-core processor |
| Operating System | Embedded Linux OS |
| Operating Interface | Web (PCAPP) |
| Controller | Single controller |
| Cache | 8 GB by default (extendable to 64 GB) |
| AI Applications | |
| AI by Camera | Face detection, face recognition, IVS (abandoned object, missing object, loitering, crowd gathering, parking, fence-crossing, fast moving, tripwire and intrusion), video metadata (human, vehicle, non-motor vehicle), vehicle recognition, people counting (fisheye or people counting camera required),face & body detection, crowd distribution, smart thermal (call detection, visible channel- smoking detection, thermal channel-smoking detection) |
| Camera Compatibility | |
| Thermal | Works with camera for fire alarm, temperature alarm, temperature difference alarm, hot spot, cold spot, smoking and calling |
| People Counting | Works with camera for tripwire people counting, regional people counting and queue people counting |
| Bullet-PTZ Smart Track | Works with camera for manual tracking, auto tracking, click positioning and select positioning |
| Fisheye Dewarp | Supports dewarping for fisheye cameras |
| Cluster | |
| Cluster | N+M |
| Audio and Video | |
| Third-party Camera Access | Onvif, Onvifs, RTSP, Sony, Panasonic, Axis, Arecont, Pelco, Canon, Samsung, Hikvision |
| Compression Standard | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711A; G.711U; PCM; G726 |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P; GAT1400; iSCSI; FTP ; SMB ; NFS |
| Mobile Phone Access | DMSS |
| Interoperability | ONVIF (Profile S, T and G); CGI; SDK |
| Browser | Chrome; PCAPP; IE9 or higher; Firefox |
| Network Mode | NIC binding mode such as multiple-address mode, load balance, fault-tolerance, link aggregation, etc |
| Recording Playback | |
| Multi-channel Playback | Max. 16-channel playback |
| Record Mode | Auto record; manual record; search video detection; IO alarm; thermal imaging; intelligent event; all record file |
| Storage Method | Internal HDD and network disk |
| Backup Method | HDD, peripheral USB storage device |
| Playback Function | 1. Play, pause, stop, fast forward, fast backward, reverse play, frame by frame 2. Full-screen, backup (clip; file), snapshot, digital zoom, audio on; off |
| Storage | |
| Video Direct Storage (Private Protocol) | Incoming: 320-channel (bandwidth: 800 Mbps) Recording: 320-channel (bandwidth: 800 Mbps) Outgoing: 320-channel (bandwidth: 800 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) |
| Video Direct Storage (Onvif) | Incoming: 320-channel (bandwidth: 800 Mbps) Recording: 320-channel (bandwidth: 800 Mbps) Outgoing: 320-channel (bandwidth: 800 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) |
| Video Direct Storage (Auto Register) | Incoming: 320-channel (bandwidth: 800 Mbps) Recording: 320-channel (bandwidth: 800 Mbps) Outgoing: 320-channel (bandwidth: 800 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) |
| Video Direct Storage (International Protocol) | Incoming: 320-channel (bandwidth: 800 Mbps) Recording: 320-channel (bandwidth: 800 Mbps) Outgoing: 320-channel (bandwidth: 800 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) |
| Picture Direct Storage | Incoming: 120-channel (550 KB/picture) Recording: 120-channel (550 KB/picture) Outgoing: 120-channel (550 KB/picture) Playback: 32-channel (550 KB/picture) |
| Disk Group | Yes |
| iSCSI | Supports client and Server |
| Network Disk | Supports client |
| RAID | RAID 0/1/5/6/10/50/60; (with enterprise-grade HDD) |
| Record Management | Supports record control (continuous, event-based, scheduled, scheduled & event-based). |
| Storage Pool | Yes |
| IPSAN | |
| IPSAN Performance | 280-channel × 2 Mbps video stream writing and 24-channel × 2 Mbps video playback ( I/O size of VMS is 64 KB) 400-channel × 2 Mbps video stream writing and 24-channel × 2 Mbps video playback (I/O size of VMS is 512 KB) |
| Alarm | |
| General Alarm | Motion detect; tampering; IPC external alarm |
| Anomaly Alarm | IPC offline alarm; storage error; HDD full; video frame loss; SSD exception; IP conflict; MAC conflict; login lock; fan malfunction; no HDD; network security exception; power exception; disk health exception; RAID exception; storage pool exception; temperature alarm; share service |
| Alarm Linkage | Record; snapshot (full image); alarm uploading; remote device alarm output; camera audio; buzzer; log; preset; email, smart tracking and warning light. Disarming alarm linkage action by period or one-click sync disarm config with channels |
| Port | |
| HDD Interface | 24 slots, SATA Max.20 T/HDD hot swapping CMR support enterprise-grade HDD |
| eSATA | 1 port |
| RS-232 | 1 port, for debug or COM data transmission |
| USB | 4 ports. 2 USB2.0 ports at the front panel and 2 USB3.0 ports at the rear panel |
| HDMI | 1 port, only for debug |
| Network Port | 4 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports. (gigabit electrica port) 1 RJ-45 10/100 Mbps self-adaptive Ethernet ports. (100 Mbps electrical port) |
| Power | 1+1 redundant power |
| Network Port Extension | 4 × 1-GbE LAN ports (optional) 2 × 10-GbE optical fiber ports (optional) |
| General | |
| Power Supply | 100-240 VAC 50-60 Hz |
| Power Consumption | <100 W (without HDD, idling) <300 W (all HDDs connected) |
| Fan | Intelligent speed regulation fan |
| Net Weight | 28.4 kg (62.61 lb) |
| Gross Weight | 43.5 kg (95.90 lb) |
| Product Dimensions | Chassis: 446mm × 175mm × 736.5mm (17.56' × 6.89' × 29.00') (W × L × H) Max. size: 482.6 mm (with hanger) × 175 mm × 736.5 mm (19.00' × 6.89' × 29.00') (W × L × H |
| Packaging Dimensions | With packaging: 687 mm × 962 mm × 526 mm (27.00' × 37.87' × 20.70') (W × L × H) |
| Operating Temperature | 0 °C to 45 °C (+32 °F to +113 °F) |
| Operating Humidity | 10%–80% (RH), non-condensing |
| Operating Altitude | 5000 m (16404.20 ft) |
| Installation | Standard 19 inch rack |
| Certifications | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
| Marca | Dahua |
|---|---|
| MPN: | DHI-EVS5124S |
