Hanwha XRN-3210RB2-64TB xrn-3210rb2 black
Precio especial $201,643.00 IVA incluido + Envio $150 MXN
Antes $233,906.00
Disponible 1 Pzas
Antes $233,906.00
Disponible 1 Pzas
sku: XRN-3210RB2-64TB
pub
MX0000104589
XRN-3210RB2-64TB

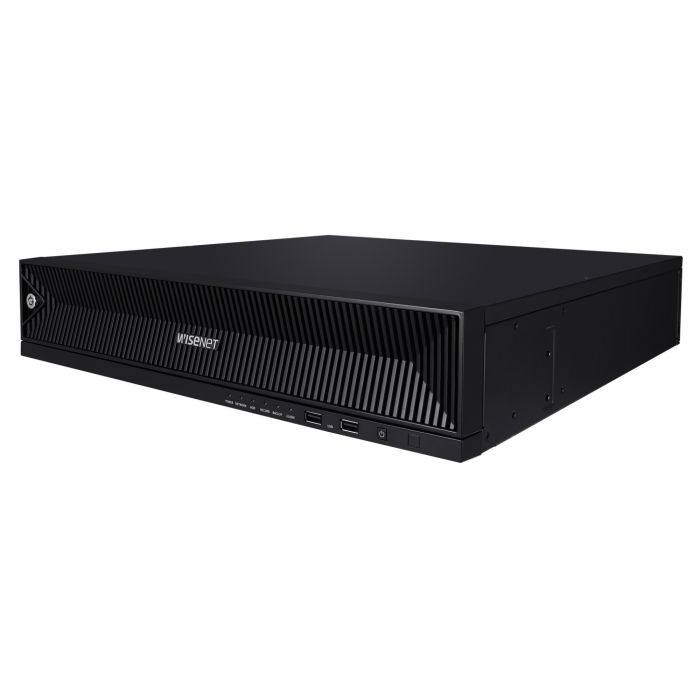

32 Channel NVR
- Up to 32CH, 32MP Resolution
- Max. 400Mbps network camera recording
- HDMI out
- User-friendly UI / UX
- AI search support when working with Wisenet AI camera
- Dynamic Event support - New event function of cameras is available without software update
- Bookmark management (Up to 100 set)
- H.265, H.264, MJPEG compression support
- SATA 8ea (Up to 80TB, Non-RAID mode)
- RAID 5/6 support
- Up to 32CH, 32MP Resolution
- Max. 400Mbps network camera recording
- HDMI out
- User-friendly UI / UX
- AI search support when working with Wisenet AI camera
- Dynamic Event support - New event function of cameras is available without software update
- Bookmark management (Up to 100 set)
- H.265, H.264, MJPEG compression support
- SATA 8ea (Up to 80TB, Non-RAID mode)
- RAID 5/6 support
Technical Information
Performance | |
---|---|
Video input channels | 32 channels |
Alarm input channels | 8 |
Alarm output channels | 4 |
Maximum resolution | 3840 x 2160 pixels |
Video formats supported | H.264, H.265, M-JPEG |
Supported network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) |
Backup function | Yes |
Audio formats supported | AAC, G.711, G.726 |
Syslog | Yes |
PTZ modes | Preset point |
PTZ control | Yes |
Ethernet LAN data rates | 1000 Mbit/s |
Recording modes | Event, Schedule |
Maximum frame rate | 960 fps |
Audio system | 2-way |
Supported resolutions | 3840 x 2160. 1920x1080 |
Video loss detection | Yes |
Multi-screen | Yes |
Operating system installed | Linux |
Number of users | 20 user(s) |
Data transfer rate (RAID 5 mode) | 64 Mbit/s |
Number of simultaneously playbacked channels | 80 channels |
Video recording modes | 720p, 1080p |
Output bandwidth | 400 Mbit/s |
Input bandwidth | 400 Mbit/s |
Wireless LAN features | |
Security algorithms | 802.1x RADIUS, TLS |
Hard drive | |
Number of HDDs supported | 8 |
Total installed storage capacity | 64 TB |
Maximum storage capacity | 80 TB |
HDD interface | SATA, iSCSI |
RAID support | Yes |
RAID levels | 5, 6 |
Storage | |
Number of HDDs supported | 8 |
Total installed storage capacity | 64 TB |
Maximum storage capacity | 80 TB |
HDD interface | SATA, iSCSI |
RAID support | Yes |
RAID levels | 5, 6 |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 1 |
RAID levels | 5, 6 |
USB 2.0 ports quantity | 2 |
Supported network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) |
Audio output | 1 |
Ethernet LAN data rates | 1000 Mbit/s |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
HDMI ports quantity | 2 |
Features | |
LED indicators | Yes |
Reset button | Yes |
On/off switch | Yes |
Product colour | Black |
Power | |
AC input voltage | 100-240 V |
AC input frequency | 50/60 Hz |
Power consumption (max) | 160 W |
System requirements | |
Windows operating systems supported | Windows 10 |
Mac operating systems supported | Mac OS X 10.13 High Sierra |
Mobile operating systems supported | Android, iOS |
Browser supported | Google Chrome, Microsoft Edge, Mac Safar |
Mac compatibility | Yes |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 20 - 85% |
Technical details | |
Compliance certificates | National Defense Authorization Act (NDAA) |
Weight & dimensions | |
Width | 17.2' (438 mm) |
Depth | 17.1' (434.9 mm) |
Height | 3.39' (86 mm) |
Weight | 20.1 lbs (9.1 kg) |
Marca | Otros |
---|---|
MPN: | XRN-3210RB2-64TB |
