Dahua DH-PSDW81642S-A360-D425 - cámara ip panorámica multisensor 8x2mp+ ptz 25x de zoom/ 4 megapixeles/ wizmind/ ir 100 mts/ smart tracking/ h.265/ ip66/
Precio especial $47,578.00 IVA incluido + Envio $150 MXN
Antes $55,190.00
Disponible 7 Pzas
Antes $55,190.00
Disponible 7 Pzas
sku: DH-PSDW81642S-A360-D425
pub
MX0000104570
PSDW81642S-A360-D425

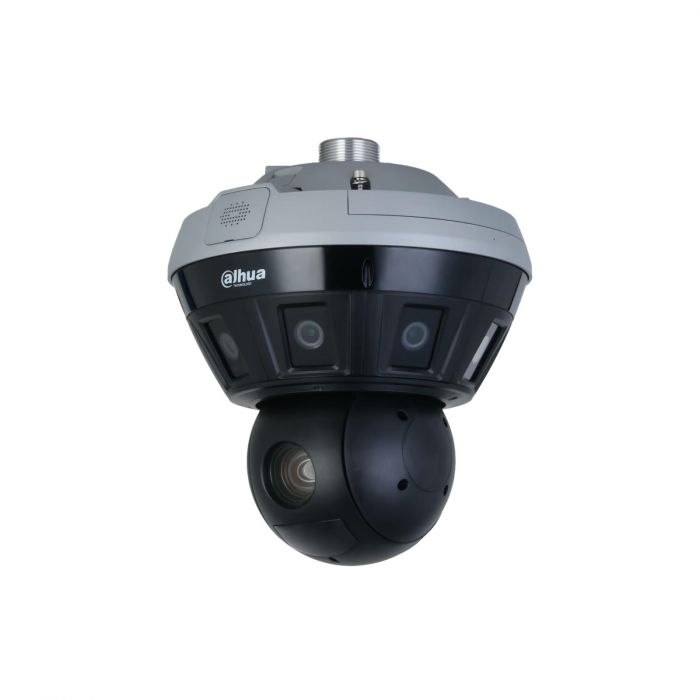

16 MP Multi-Sensor 360° Panoramic PTZ Mini Hubble Wizmind Network Camera
* La garantía de 5 años es aplicable a socios IPP, VSIP y SSIP.
> Panoramic parameters: 8 × 2 MP 1/1.8' CMOS image sensors. PTZ parameters: 1 × 4 MP 1/1.8' CMOS image sensors.
> PTZ camera: Built-in laser illuminator, max. illumination distance: 100 m.
> PTZ camera: 25x optical zoom,16x digital zoom.
> H.265 codec, high compression rate, ultra-low bit rate.
> 3D NR, HLC, BLC, applicable to various monitoring scenes.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Smart tracking.
> Built-in dual MIC and dual speaker, support two-way talk.
> Intelligent Functions: Panoramic Network Camera: Perimeter Protection; PTZ Camera: Perimeter Protection, Face Detection and Video Metadata.
| Camera | |
| Image Sensor | Panoramic network camera: 1/1.8'CMOS PTZ camera:1/1.8'CMOS |
| Max. Resolution | Panoramic network camera:8192 × 1800 PTZ camera: 2560 × 1440 |
| ROM | Panoramic network camera:4 GB PTZ camera:4 GB |
| RAM | Panoramic network camera:4 GB PTZ camera:1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Panoramic network camera:Auto/Manual 1/3 s-1/100,000 s PTZ Camera:Auto/Manual 1/1 s-1/300,000 s |
| Min. Illumination | Panoramic network camera:0.001 lux @F1.0(Color, 30 IRE); 0.0001 lux@F1.0(B/W, 30 IRE) PTZ camera:0.001 lux @F1.6(Color, 30 IRE); 0.0001 lux @F1.6(B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | Panoramic network camera: >56 dB PTZ camera: >56 dB |
| Illumination Distance | Panoramic network camera:NA PTZ camera: up to 100 m (328.08 ft) (IR on) |
| Illuminator On/Off Control | Auto; Zoomprio; Manual |
| Illuminator Number | Panoramic network camera:NA PTZ camera:4(IR LED) |
| Gradienter | The horizontal gradient is visualized, simplifying installation. |
| Lens | |
| Lens Type | Panoramic network camera: Fixed-focal PTZ camera: Motorized vari-focal |
| Lens Mount | Panoramic network camera: M16 PTZ camera: Module |
| Focal Length | Panoramic network camera 2.8 mm PTZ camera: 5.3 mm–134 mm, optical zoom (25times) |
| Max. Aperture | Panoramic network camera: F1.0 PTZ camera: F1.6–F4.0 |
| Field of View | Panoramic network camera: H: 360°; V: 103°; PTZ camera:H: 3.5°–58°; V: 2°–35°; D: 2°–64° |
| Iris Control | Panoramic network camera: Fixed PTZ camera: Auto |
| Close Focus Distance | Panoramic network camera:1.4 m (4.59 ft) PTZ camera:0.5 m–7 m (1.64 ft–22.96 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Panoramic network camera: Intrusion, tripwire PTZ camera:Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection, loitering detection, and people gathering |
| Face Detection | PTZ camera: Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting |
| Video Metadata | PTZ camera: Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: license plate, vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, helmet. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Panoramic network camera: Main stream: 8192 × 1800@(1-25/30fps) Sub stream: 2048 × 452@(1-25/30fps) Third stream: 3840 × 832@(1-25/30fps) PTZ camera: Main stream: 2688 × 1520@(1-25/30fps) Sub stream: 704 × 480@(1-25/30fps) Third stream: 1920 × 1080@(1-25/30fps) |
| Stream Capability | 3 streams |
| Resolution | Panoramic network camera: Main stream: 8192 × 1800; 7680 × 1680; 5760 × 1264; 4096 × 900 Sub Stream: 2048 × 452 Third Stream: 3840 × 832; 2560 × 560 PTZ camera: Main stream: 2560 × 1440; 1920 × 1080; 1280 × 960; 1280 × 720 Sub Stream: 704 × 576; 352 × 288 Third Stream: 1920 × 1080; 1280 × 960; 1280 × 720 |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | Panoramic network camera: H.264: 3584 Kbps –18176 Kbps H.265: 1280 Kbps –11008 Kbps PTZ camera: H.264: 2816 Kbps – 13056 Kbps H.265: 1024 Kbps – 7936 Kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | Panoramic network camera: DWDR PTZ camera: WDR (120 dB ) |
| White Balance | Panoramic network camera: Auto/Natural/street lamp/outdoor/manual/regional Custom PTZ camera: Auto/indoor/outdoor/tracking/manual/sodium lamp/natural/street lamp |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Panoramic network camera: NA PTZ camera: Electronic Image Stabilization (EIS) |
| Smart Illumination | Panoramic network camera:NA PTZ camera:Yes |
| Defog | Panoramic network camera: NA PTZ camera: Yes |
| Image Rotation | 0°/180° (PTZ camera) |
| Privacy Masking | Panoramic network camera: 4 areas PTZ camera: 8 areas |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in dual speaker |
| Audio Compression | PCM; G.711A; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; parking detection; scene changing; audio detection; voltage detection; external alarm; video metadata; safety exception; |
| Network | |
| Network Port | RJ-45(10/100/1000 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Interoperability | ONVIF (Profile S/Profile G); CGI; Milestone |
| User/Host | 9 (Total bandwidth: 176 M) |
| Storage | Micro SD card (support max. 512GB); FTP; SFTP; NFS; SMB |
| Browser | IE: IE11; Chrome; Firefox |
| Management Software | DSS |
| Certification | |
| Certifications | CE-LVD:EN62368-1 CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU FCC:47 CFR FCC Part 15, Subpart B UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| PTZ Dome | |
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –10° to 90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°/s–120°/s Tilt: 0.1°/s–50°/s |
| Positioning Accuracy | Pan: 0.1° Tilt: 0.1° |
| Remote PTZ Reset | Yes |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset/Pattern/Tour/Scan |
| Time Task | Yes |
| Three-dimensional Positioning | Yes |
| PTZ Limit | Yes |
| Position Display | Yes |
| Information Display | Yes |
| Time Display | Yes |
| Port | |
| Audio Input | 2 channels (terminal) |
| Audio Output | 1 channel (terminal) |
| Alarm Input | 3 channels in: 5 mA 3V–5 VDC |
| Alarm Output | 2 channels out: 1,000 mA 30 VDC/500 mA 50 VAC |
| Analog Output | 1 channel (CVBS output: BNC) |
| Power | |
| Power Supply | DC 36V |
| Power Consumption | Basic: 35 W (36 VDC) Max. (Basic power consumption + WDR + intelligence on + IR on + PTZ operation ): 45 W (36 VDC) |
| Environment | |
| Operating Temperature | –40 °C – +60 °C (–104 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C – +70 °C (–104 °F to +158 °F) |
| Protection | IP67 |
| Structure | |
| Casing Material | Metal + plastic |
| Product Dimensions | 326 mm × Φ280 mm (12.83' × Φ11.02') |
| Packaging Dimensions | 394 mm × 352 mm × 468 mm (15.51' × 13.86' × 18.43') |
| Net Weight | 7 kg (15.43 lb) |
| Gross Weight | 10.4 kg (22.93 lb) |
| Marca | Dahua |
|---|---|
| MPN: | DH-PSDW81642S-A360-D425 |
