Belden 5020FL 0021000 cable de alarma contra incendios Belden, riser-fplr 2 #12 pp fs fr pvc rojo -
Precio especial $8,863.00 IVA incluido + Envio $150 MXN
Antes $10,281.00
Disponible 3 Pzas
Antes $10,281.00
Disponible 3 Pzas
sku: 5020FL 0021000
pub
MX0000104494
5020FL
5020FL - Fire Alarm, #12-2c BC, Shielded, FPLR

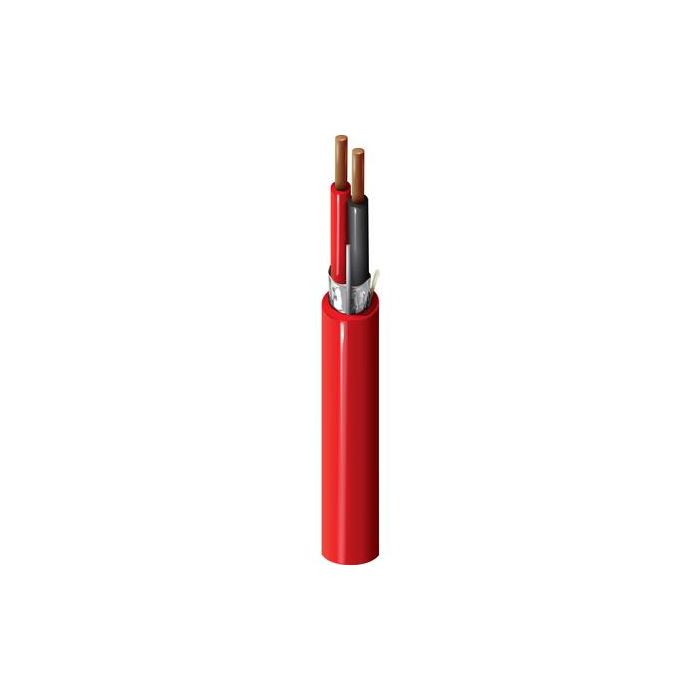

Fire Alarm Cable, Riser-FPLR, 2-12 AWG solid bare copper conductors with polyolefin insulation, overall Beldfoil® shield, PVC jacket with ripcordbr
Product Overview
Suitable Applications: | Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification, Noisy Environment |
Construction Details
Conductor
Element | No. of Elements | Size | Stranding | Material |
---|---|---|---|---|
Conductor(s) | 2 | 12 | Solid | BC - Bare Copper |
Insulation
Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
---|---|---|---|
PP - Polypropylene | 0.01 in (0.25 mm) | 0.105 in (2.67 mm) | Black, Red |
Outer Shield
Shield Type | Material | Coverage | Drainwire Type |
---|---|---|---|
Tape | Bi-Laminate (Alum+Poly) | 100% | 20 AWG (7x28) TC |
Outer Jacket
Material | Nom. Thickness | Nom. Diameter | Ripcord |
---|---|---|---|
PVC - Polyvinyl Chloride | 0.017 in (0.43 mm) | 0.243 in | Yes |
Electrical Characteristics
Electricals
Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Max. Current |
---|---|---|---|
1.65 Ohm/1000ft | 71 pF/ft (230 pF/m) | 128 pF/ft (420 pF/m) | 12 Amps per Conductor at 25ºC |
Voltage
UL Voltage Rating |
---|
300 V |
Mechanical Characteristics
Temperature
UL Temperature | Operating |
---|---|
75°C | -20°C To +75°C |
Bend Radius
Stationary Min. | Installation Min. |
---|---|
3.64 in (92.5 mm) | 3.64 in |
Max. Pull Tension: | 170 lbs (77 kg) |
Bulk Cable Weight: | 55 lbs/1000ft |
Standards and Compliance
Environmental Suitability: | Indoor |
Flammability / Reaction to Fire: | UL 1666 riser |
NEC / UL Compliance: | Article 760, FPLR |
European Directive Compliance: | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
APAC Compliance: | China RoHS II (GB/T 26572-2011) |
Other Standard Compliance(s): | California State Fire Marshall |
Plenum Number: | 6020FL |
History
Update and Revision: | Revision Number: 0.324 Revision Date: 02-03-2025 |
Part Numbers
Variants
Item # | Color | UPC | Footnote |
---|---|---|---|
5020FL 0021000 | Red | 612825155881 | C |
Marca | Belden |
---|---|
MPN: | 5020FL 0021000 |
