Belden 9320 060U500 cable de instrumentación alto rendimiento Belden, 2 #20 pvc shld chrome -
Precio especial $13,881.00 IVA incluido + Envio $150 MXN
Antes $16,102.00
Disponible 16 Pzas
Antes $16,102.00
Disponible 16 Pzas
sku: 9320 060U500
pub
MX0000104493
9320

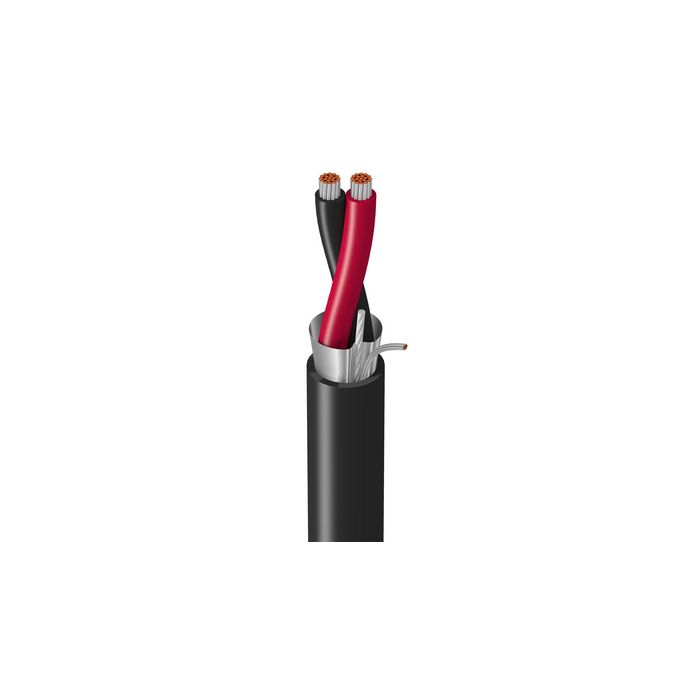

9320 - High Perform Instr, 1 Pr #20 Str TC, PVC Ins E2, OS, PVC Jkt, PLTC
High Performance Instrumentation, 1 Pair 20AWG (19x32) Tinned Copper, PVC Insulation E2 Color Code, Overall Beldfoil® Shield, PVC Outer Jacket, PLTCbr
Product Overview
| Suitable Applications: | Instrumentation, Sensors, Valves, Positioners, 4-20mA, 0-10V |
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 1 | 20 AWG | 19x32 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Pair(s) | PVC - Polyvinyl Chloride | 0.018 in (0.46 mm) | 0.072 in (1.8 mm) | Black, Red |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (19x34) TC |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.037 in (0.94 mm) | 0.221 in (5.61 mm) |
| Overall Cable Diameter (Nominal): | 0.221 in (5.61 mm) |
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Shield | Max. Current |
|---|---|---|---|---|
| Pair(s) | 11.3 Ohm/1000ft | 52 pF/ft (170 pF/m) | 97 pF/ft (320 pF/m) | 3.8 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V (PLTC, CMG) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 105°C | -30°C to +105°C |
Table Notes:AWM 80°C
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 2.2 in (56 mm) | 2.2 in (56 mm) |
| Max. Pull Tension: | 54 lbs (24 kg) |
| Bulk Cable Weight: | 29 lbs/1000ft |
Standards and Compliance
| Environmental Suitability: | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance |
| Flammability / Reaction to Fire: | UL 1685 UL Loading, FT4, T-29-520, IEEE 1202 |
| CPR Compliance: | CPR Euroclass: Eca |
| NEC / UL Compliance: | Article 725, Article 727, Article 800, CMG, ITC, PLTC |
| AWM Compliance: | AWM 2464 |
| CEC / C(UL) Compliance: | CMG |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision: | Revision Number: 0.610 Revision Date: 02-03-2025 |
Part Numbers
Variants
| Item # | Color | UPC | Footnote |
|---|---|---|---|
| 9320 0605000 | Chrome | 612825228936 | Z |
| 9320 060U1000 | Chrome | 612825228912 | |
| 9320 060U500 | Chrome | 612825228929 |
| Marca | Belden |
|---|---|
| MPN: | 9320 060U500 |
