Belden 1309A 0081000 cable de altavoz Belden, 2 conductores #14, pvc, cm, dir bur -
Precio especial $17,770.00 IVA incluido + Envio $150 MXN
Antes $20,613.00
Disponible 5 Pzas
Antes $20,613.00
Disponible 5 Pzas
sku: 1309A 0081000
pub
MX0000104492

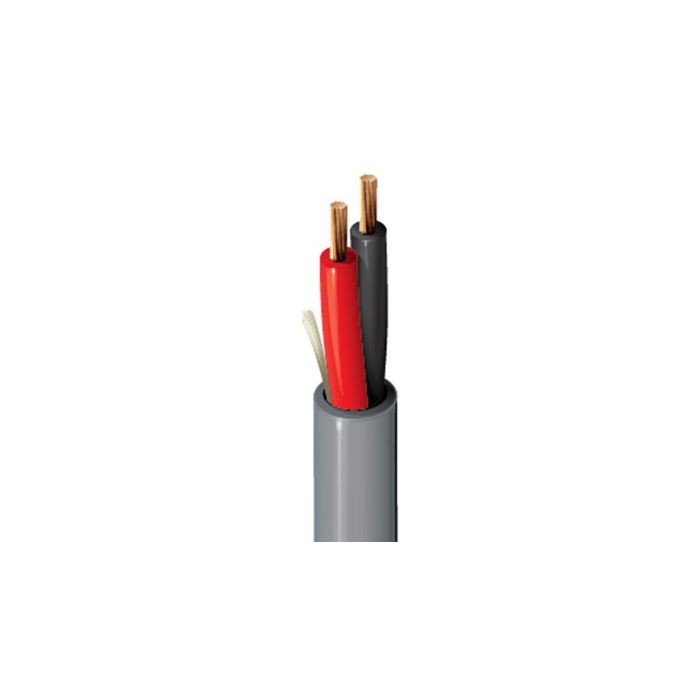

1309A - Speaker Cable, 2 C #14 Str BC-OFHC, PVC Jkt, CM, DIR BUR, Flexible
| Informacion tecnica | |
|---|---|
| General Information | |
| Brand Name | Belden |
| Manufacturer | Belden CDT, Inc |
| Manufacturer Part Number | 1309A 0081000 |
| Package Type | Reel |
| Product Model | 1309A 0081000 |
| Product Name | Speaker Cable, 2 C 14 Str BC-OFHC, PVC Jkt, CM, DIR BUR, Flexible |
| Product Series | Audio Cable |
| Product Type | Audio Cable |
| Technical Information | |
| American Wire Gauge | 14AWG |
| Device Supported | Audio Device |
| Jacket Type | PVC |
| Number of Conductors | 2 |
| Shielding | No |
| Solid or Stranded | Stranded |
| Certifications | |
| RoHS Compliant | Compliant |
| Physical Characteristics | |
| Cable Length | 304.8 m |
| Color | Grey |
| Material | Bare Copper, Polyethylene, PVC |
| Miscellaneous | |
| Environmental Certification | RoHS 2, WEEE |
| Indoor/Outdoor | Indoor |
1309A
Speaker Cable, 2 Conductor 14 AWG (105 x 34) Oxygen-Free Bare Copper (High Conductivity), PE Insulation, PVC Jacket, CM, Direct Burial, Flexiblebr
Product Overview
| Suitable Applications: | Speaker Cable; Direct Burial; Indoor/Outdoor Home Theater; In-Wall Speaker; Outdoor Speaker |
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 2 | 14 AWG | 105x34 | BC - Bare Copper (High Conductivity) |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | PE - Polyethylene | 0.016 in (0.41 mm) | 0.105 in (2.67 mm) | Black, Red |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.027 in (0.69 mm) | 0.264 in (6.71 mm) |
| Overall Cable Diameter (Nominal): | 0.264 in (6.71 mm) |
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|
| Conductor(s) | 2.67 Ohm/1000ft | 20.5 pF/ft (67.3 pF/m) | 66% | 25 Amps per conductor @ 30°C |
Voltage
| UL Voltage Rating |
|---|
| 300 V (CM, CL3) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 75°C | -20°C To +75°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 2.6 in (66 mm) | 2.6 in (66 mm) |
| Max. Pull Tension: | 104 lbs (47.2 kg) |
| Bulk Cable Weight: | 42 lbs/1000ft |
Standards and Compliance
| Environmental Suitability: | Indoor (Not Riser or Plenum), Indoor, Outdoor, Burial |
| Flammability / Reaction to Fire: | UL 1685 UL loading , IEC 60332-1-2 |
| CPR Compliance: | CPR Euroclass: Eca |
| NEC / UL Compliance: | Article 725, Article 800, CL3, CM |
| CEC / C(UL) Compliance: | CM |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Plenum Number: | 6100UE |
Product Notes
| Notes: | Jacket has ROOM 1 2 3 4 5 6 7 8 9 0 ZONE A B C D printed on it. |
History
| Update and Revision: | Revision Number: 0.495 Revision Date: 02-03-2025 |
Part Numbers
Variants
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 1309A 010U500 | Black | UnReel | 500 ft | 612825111443 | |
| 1309A 0101000 | Black | Reel | 1,000 ft | 612825111450 | C |
| 1309A 006U500 | Blue, Light | UnReel | 500 ft | 612825111412 | |
| 1309A 008U500 | Gray | UnReel | 500 ft | 612825111429 | |
| 1309A 0081000 | Gray | Reel | 1,000 ft | 612825111436 | C |
| 1309A N3UU500 | Green, Mil | UnReel | 500 ft | 612825111405 | C |
| 1309A 1SLU500 | White 1SL | UnReel | 500 ft | 612825111467 | |
| 1309A 1SL1000 | White 1SL | Reel | 1,000 ft | 612825111474 | C |
| Marca | Belden |
|---|---|
| MPN: | 1309A 0081000 |
