Zebra DS3608-XR3U4602ZVW evm/dcs, ds3608-xr, usb kit: ds3608-xr60003vzww scanner, cba-u46-s07zar shielded high current cable
Precio especial $22,535.00 IVA incluido + Envio $150 MXN
Antes $26,141.00
Disponible 2 Pzas
Antes $26,141.00
Disponible 2 Pzas
sku: DS3608-XR3U4602ZVW
pub
MX0000104477
DS3608-XR3U4602ZVW

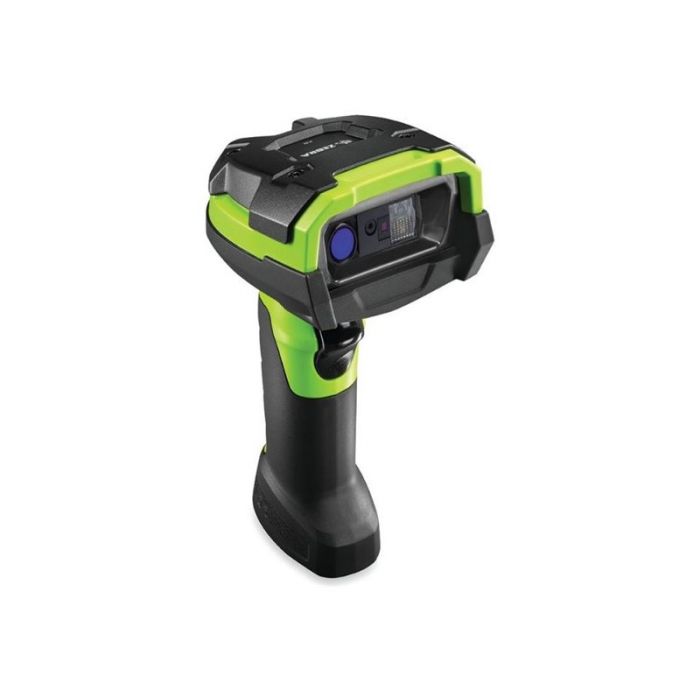

Zebra DS3608-XR - USB Kit
- barcode scanner
- handheld
- ER
- 2D imager
- decoded
- interface cable required
- TAA Compliant
| Specifications | |
|---|---|
| Dimensions & Weight / Depth | 13.2 cm |
| Dimensions & Weight / Height | 18.5 cm |
| Dimensions & Weight / Weight | 308 g |
| Dimensions & Weight / Width | 7.6 cm |
| Header / Brand | Zebra |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Scanner / Type | Barcode scanner |
| Service & Support / Type | 3-year warranty |
| Barcode | |
| Connectivity Technology | Wired |
| Decode Capability | Code 93, Code 39, Code 128, Codabar, NW-7, Code 11, MSI-Plessey, UPC/EAN extension, Industrial 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32, Italy Pharmacode, PDF417, MicroPDF417, Composite Codes, TLC39, Aztec, Data Matrix, MaxiCode, QR code, Micro QR code, Chinese Sensible Code, Han Xin, Postal Code |
| Features | Rugged, Human Interface Device Profile (HID), Serial Port Profile (SPP), 25 kV ESD protection (air discharge), 10 kV ESD protection (direct discharge), 10 kV ESD protection (indirect discharge), Digimarc Barcode Technology |
| Interface Type | Interface cable required |
| Light Source Wave Length | 520 nm |
| Minimum Bar Width | 5 mil |
| OK Notification | Beeper, LED indicator, vibration |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 25% |
| Scan Element Type | 2D imager |
| Scan Engine Focus Range | Extended Range (ER) |
| Scan Mode | Single-pass |
| Sensor Resolution | 1920 x 1080 |
| Skew (Degrees) | 60 |
| TTL Decoding | Decoded |
| Dimensions & Weight | |
| Depth | 13.2 cm |
| Height | 18.5 cm |
| Weight | 308 g |
| Width | 7.6 cm |
| Environmental Parameters | |
| Drop Specification | 2.4 m to concrete |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -30 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x keyboard wedge / USB / RS-232 |
| General | |
| Color | Industrial green |
| Type | Barcode scanner - handheld |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x serial cable |
| Compliant Standards | IP67, EN 50581:2012, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, RoHS, IEC 60950-1:2005 + A1:2009 + A2:2013, CAN/CSA C22.2 No. 60950-1-07, UL 60950-1 Second Edition, CU, EN 62471:2008, IEC 62471:2006, UL, VDE, EN 55022:2010/AC:2011, EN 55024:2010, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-6-2, EN 60601-1-2:2007, EN 61000-3-3:2013, FCC CFR47 Part 15 B Class B, ICES-003 issue 5 Class B, IEC 60601-1-2:2007, FIPS 140-3 |
| Included Accessories | Network adapter |
| TAA Compliant | Yes |
| Marca | Zebra |
|---|---|
| MPN: | DS3608-XR3U4602ZVW |
