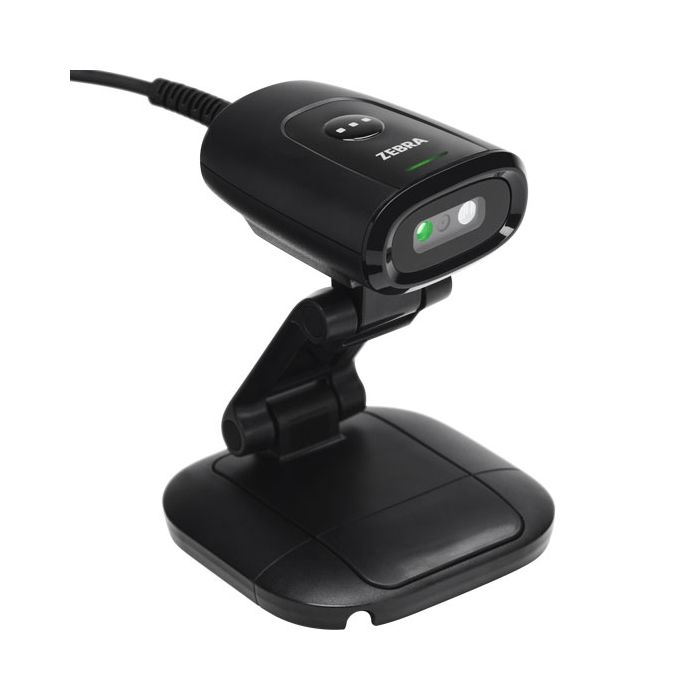

Zebra DS5502-SR4US70MMZW ds55, 2d, sr, area imager, dual-if, kit (usb), black
Precio especial $8,657.00 IVA incluido + Envio $150 MXN
Antes $10,042.00
Disponible 21 Pzas
Antes $10,042.00
Disponible 21 Pzas
sku: DS5502-SR4US70MMZW
pub
MX0000104370
DS5502-SR4US70MMZW
Descripción
built-in scanner, 2D, standard range, Area Imager, dual interface (RS232, USB), dimensions, W 30mm, H 56mm, D 72mm, incl.: cable (USB), stand (desk-/wall holder), IP54, colour: black
| Connectivity | Corded |
| Scanner Type | 2D Area ImagerOmnidirectional |
| Form Factor | Hands FreeOn CounterPresentation |
| Scanner Includes | Corded Kit [Cable,Stand] |
| Scan Pattern | Area |
| Scan Range | Standard |
| Interface | SerialUSBUSB-A |
| Informacion tecnica | |
Physical Characteristics |
|
| DS5502-SR4US70MMZW ZEBRA SCANNER KIT | DS5502-SR40004ZZWW Scanner, CBL-U10755-01 7 USB Cable, BRKT-MM0055C-04 |
Physical Characteristics |
|
| Dimensions | 1.2 in H x 2.2 in W x 2.8 in D (3.0cm H x 5.6cm W x 7.2cm D) |
| Weight | 2.3 oz (65.2g) |
| Input Voltage Range | 4.75 to 5.25 VDC Host Powered; 4.75 to 5.25 VDC External Power Supply |
| Operating Current at Nominal Voltage (average) | Presentation Mode |
| Standby Current (Idle) at Nominal Voltage (average) | Presentation Mode |
| Color | Midnight Black |
| Supported Host Interfaces | USB, RS232 |
| USB Certification | USB Certification |
| User Indicators | Good Decode LEDs, Speaker (adjustable tone and volume) |
Performance Characteristics |
|
| Swipe Speed (HandsFree) | Up to 100 in (254cm) per second for 13 mil UPC in optimized mode |
| Image Sensor | 1280 x 800 pixels |
| Aiming Pattern | Circular 525 nm True Green LED |
| Illumination | (1) Warm White LED |
| Imager Field of View | 48° H x 30° V nominal |
| Minimum Print Contrast | 15% minimum reflective difference |
| Skew Tolerance | +/- 60° |
| Pitch Tolerance | +/- 60° |
| Roll Tolerance | 0°-360° |
Imaging Characteristics |
|
| Graphics Format | Images can be exported as Bitmap, JPEG or TIFF |
| Image Quality | 200 PPI on a 6.0 x 3.8 in (15.2 x 9.5cm) document @ 7.0 in (17.8cm) |
User Environment |
|
| Operating Temperature | -4F to +122F (-20C to +50C) |
| Storage Temperature | -40F to +158F (-40C to +70C) |
| Humidity | 5% to 95% RH, non-condensing |
| Environmental Sealing | IP54 |
| Drop Specification | Designed to withstand multiple drops at 5 ft (1.5m) to concrete |
| Marca | Zebra |
|---|---|
| MPN: | DS5502-SR4US70MMZW |
