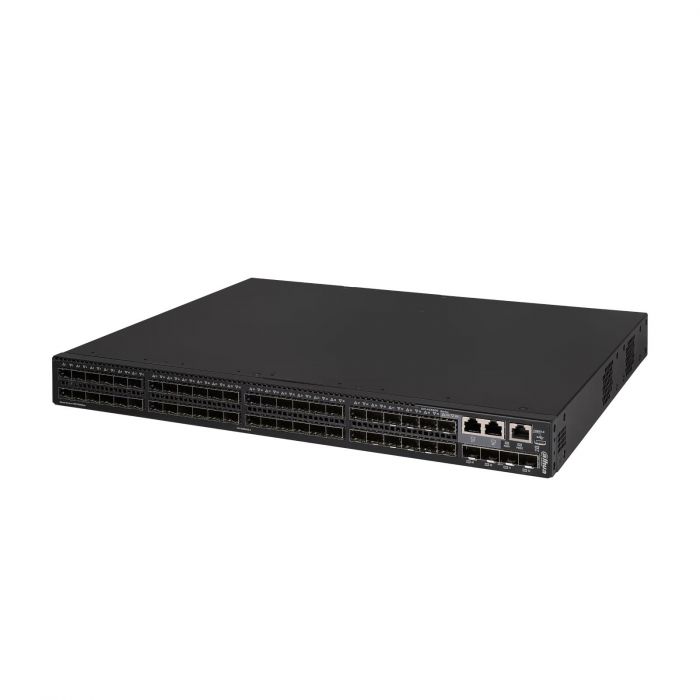

Dahua DH-AS5500-48GF4XF / switch gigabit/ 48 puertos/ potentes funciones l2 y l3/ marco inteligente resiliente 2 (irf2)
Precio especial $43,301.00 IVA incluido + Envio $150 MXN
Antes $50,229.00
Disponible 8 Pzas
Antes $50,229.00
Disponible 8 Pzas
sku: DH-AS5500-48GF4XF
pub
MX0000104367
AS5500-48GF4XF
48 Ports Managed Switch
> Powerful L2 and L3 Features
> Enterprise-level Connectivity
> Intelligent Resilient Framework 2 (IRF2)
| Hardware | |
| Included Power Adapter | Yes |
| PoE | No |
| Optical Port | 48 × SFP 100/1000 Mbps |
| Optical Port Speed | 1 Gbps |
| Optical Port Uplink Speed | 1/10 Gbps |
| Description of Function Slots | Port 1-48: 48 × SFP 100/1000 Mbps; Port 47-48: 2 × RJ-45 10/100/1000 Mbps (Combo); Port 49-52: 4 × SFP+ 1/10 Gbps |
| Management port | 1 × Micro-USB port 1 × Console port |
| Power Supply | 100–240 VAC, 50/60 Hz, 2.5 A |
| Operating Temperature | –5 °C to +45 °C (+23 °F to +113 °F) |
| Operating Humidity | 5%–95% (RH) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH) |
| Fanless Design | No |
| Power Consumption | Idling: 25 W Full load: 69 W (Single Power) Idling: 27 W Full load: 72 W (Dual Power) |
| Performance | |
| Layer | L3 |
| Management Type | Yes |
| MTBF | 125.56 years |
| Switching Capacity | 176 Gbps |
| Packet Forwarding Rate | 130.952 Mpps |
| Packet Buffer Size | 24 Mbit |
| Jumbo Frame | 10K Byte |
| MAC Table Size | 16K |
| VLAN Number | 4K |
| IPv4 Routes | 1K |
| Dynamic ARP | 1K |
| Communication Standard | 802.3x; 802.3ad; 802.1p; 802.1q; 802.1x; 802.1d; 802.1w; 802.1s |
| Features | |
| Ring Network Protocol | STP/RSTP/MSTP PVST RRPP |
| Routing | Static routing IPV6 policied routing RIPv1/v2/ng OSPFv2/v3 Policy based routing |
| VLAN Function | Port-based VLAN MAC-based VLAN Protocol-based VLAN Subnet-based VLAN QinQ, flexible QinQ VLAN Mapping Voice VLAN MVRP |
| Link Aggregation | Static link aggregation Dynamic link aggregation Cross-device link aggregation Gigabit Ethernet port aggregation 10 Gigabit Ethernet port aggregation |
| IEEE 802.3x Flow Control | Yes |
| Multicast | IGMP Snooping PIM Snooping IGMP v1/v2/v3 |
| Reliability | VRRP; DLDP; IRF |
| ARP | ARP, Gratuitous ARP Dynamic ARP Inspection ARP anti-attack ARP source suppression ARP Detection |
| DHCP Function | DHCP Client DHCP Snooping DHCP Relay DHCP Server DHCP Snooping option 82 DHCP Relay option 82 |
| Security | 802.1X, centralized MAC address authentication Guest VLAN SSH 2.0 Port isolation Port security DHCP Snooping, preventing DHCP spoofing Dynamic ARP detection, preventing man-in-the-middle attack and ARP denial-of-service IP/Port/MAC binding |
| QoS/ACL | Packet filtering (Layer 2 to Layer 4) Source MAC-, destination MAC-, Source IP (IPv4/IPv6)-, destination IP (IPv4/IPv6)-, TCP/UDP port number-, VLAN-based traffic classification Time-based ACL Two-way ACL policy (ingress and egress) VLAN-based ACL application |
| IPv6 | ND IPv6-Ping IPv6-Tracert IPv6-Telnet |
| Equipment Management | Load update files and update using FTP Configure through CLI, Telnet, and Console port SNMPv1/v2/v3 NTP Ping and Tracert LLDP Port loopback detection |
| General | |
| Statics Protection | Air discharge: 8 kV Contact discharge: 6 kV |
| Lighting Protection | Common mode: 1 kV Differential mode: 0.5 kV |
| Net Weight | 6.5 kg (14.3 lb) |
| Gross Weight | 7.0 kg (15.4 lb) |
| Product Dimensions | 440 mm × 360 mm × 43.6 mm (17.32' × 14.17' × 1.72') (L × W × H) |
| Packaging Dimensions | 562 mm × 550 mm × 125 mm (22.13' × 21.65' × 4.92') (L × W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; rack mount |
| Certifications | CE; FCC |
| Marca | Dahua |
|---|---|
| MPN: | DH-AS5500-48GF4XF |
