Dahua DHI-IVSS7108-1I - servidor de video con ia, maneja 128 canales ip y hasta 40 reconocimiento facial. incluye 8 bahías hdd raid 0/1/5/6/10/50/60, protección perimetral, 16 entradas salidas alarma.
Precio especial $115,085.00 IVA incluido + Envio $150 MXN
Antes $133,499.00
Disponible 11 Pzas
Antes $133,499.00
Disponible 11 Pzas
sku: DHI-IVSS7108-1I
pub
MX0000104366
IVSS7108-1I

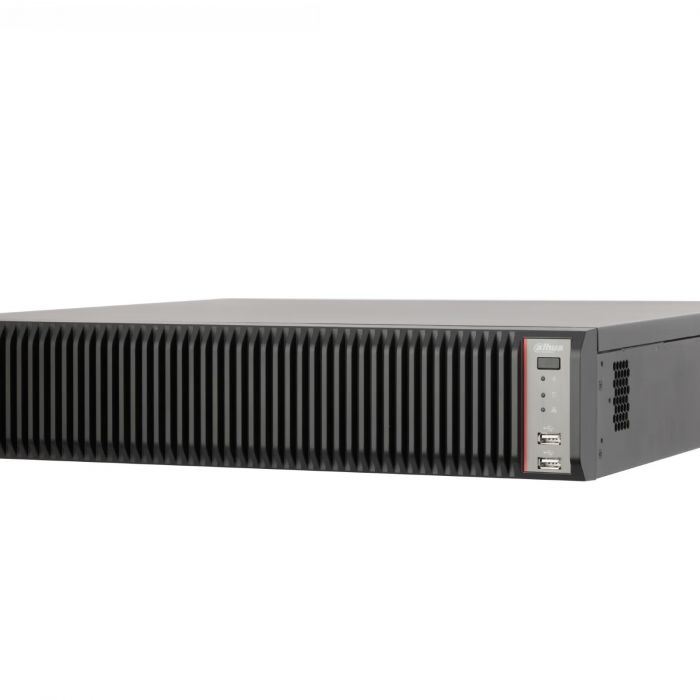

128CH 2U Intelligent Video Surveillance Server
> 64-bit High-performance multi-core processor
> 128-channel IP video access
> Max 512 Mbps/512 Mbps incoming/recording bandwidth
> Up to 16-channel AI IVS
> Up to 16-channel face recognition with normal IPC
> Up to 40-channel 2 MP or 40-channel 4 MP face recognition with face detection IPC
> Up to 16-channel video metadata
> Up to 16-channel AcuPick with normal IPC
> Up to 100 face databases with 500,000 face pictures in total
> Up to 16-channel 1080p intelligent video compression
> 8 bays, supports RAID 0/1/5/6/10/50/60
> 4 HDMI/1 VGA video output
| System | |
| Main Processor | 64-bit multi-core processor |
| Operating System | Embedded Linux OS |
| Operating Interface | Web (PCAPP), local GUI |
| AI Applications | |
| AI by Camera | Face detection; face recognition; video metadata (human; vehicle; non-motor vehicle); IVS; license plate comparison; tripwire people counting; in area people counting; abnormal number of people in queue; smoking detection; call detection; face & body detection; SMD |
| AI by Recorder | Face detection; face recognition; entries frequency; video metadata (human; vehicle; non-motor vehicle); metadata attributes alarm by recorder; IVS; |
| AcuPick | 1.AI by Recorder: Supports 16-channel 2 MP or 16-channel 4 MP resolution 2.AI by Camera: Supports 40-channel 2 MP or 40-channel 4 MP resolution |
| Face Detection | |
| Face Detection | 1. AI by Recorder: 16-channel 2 MP or 16-channel 4 MP with normal IP camera; 2. AI by Camera: 40-channel 2 MP or 40-channel 4 MP resolution with face detection IP camera; 3. Supports 6 properties: Gender, age, glasses, expression, face mask, and beard |
| Search by Image | |
| Search by Image | Search by image in the face database, search by face or human body images, and 1:1 face recognition. |
| Face Recognition | |
| Face Database Capacity | 1.100 human face databases with 500,000 face pictures in total 2. 5 passerby databases with 500,000 face pictures in total The human face database and the passerby database share the total capacity and number of face images. |
| Face Recognition | 1. AI by Recorder: 16-channel 2 MP or 16-channel 4 MP with normal IP camera; 40-channel 2 MP or 40-channel 4 MP with face detection IP camera (Totally 40 × 2 MP or 40 × 4 MP face pictures analyzed per second); 2. AI by Camera: 40-channel 2 MP or 40-channel 4 MP with face recognition IP camera; 3. Supports entries frequency alarm |
| Vehicle License Plate Comparison | |
| License Plate Database Capacity | 1. 50 plate databases with 500,000 plate numbers in total 2. Supports allowlist and blocklist |
| Vehicle License Plate Comparison | Supports 40-channel 2 MP or 40-channel 4 MP resolution with ITC |
| Video Metadata | |
| Video Metadata | 1. AI by Recorder: Supports 16-channel 2 MP or 16-channel 4 MP resolution 2. AI by Camera: Supports 40-channel 2 MP or 40-channel 4 MP resolution 3. Object type: Human body: Gender, age, sleeves length, top color, bottom type, bottom color, bag, rain coat, umbrella, hat, hairstyle, direction, hold a baby, face mask Vehicle: Plate No, vehicle type, vehicle color, plate color, logo, calling, seatbelt, ornament Non-motorized Vehicle: Non-motor vehicle type, non-motor vehicle color, number of passengers, umbrella, rain coat, bag , sleeve, length, top color, hat, hair style, face mask |
| IVS Analytics | |
| IVS | 1. AI by Recorder: Supports 16-channel 2 MP or 16-channel 4 MP with normal IP camera 2. AI by camera: Supports 40-channel 2 MP or 40-channel 4 MP resolution 3. Rules: AI by Recorder: tripwire, intrusion, crowd gathering, loitering detection and parking detection AI by Camera: tripwire, intrusion, abandoned object, missing object, fast moving, crowd gathering, loitering, parking, and fence-crossing |
| Intelligent Task Analytics | |
| Intelligent Task Analytics | Local video records, import DAV videos from external devices for analysis |
| Video Diagnosis | |
| Video Diagnosis | 1. Supports 1-channel tour detection 2. Supports 12 detection items: Video tampering, scene changing, video jitter, noise detection, stripe interference, video loss, image freeze, overexposure, defocus detection, video color cast, abrupt image change and low contrast |
| Audio and Video | |
| Access Channel | 128-channel |
| Network Bandwidth | Incoming bandwidth: 512 Mbps Recording bandwidth: 512 Mbps Outgoing bandwidth: 512 Mbps |
| Resolution | 32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p |
| Decoding Capability | 1-channel 32 MP@30 fps; 1-channel 24 MP@30 fps;2-channel 24 MP@25 fps; 2-channel 16 MP@30 fps; 5-channel 12 MP@20 fps; 6-channel 12 MP@15 fps; 5-channel 8 MP@30 fps; 10-channel 8 MP@15 fps; 6-channel 6 MP@30 fps; 8-channel 5 MP@30 fps; 9-channel 5 MP@25 fps; 10-channel 4 MP@30 fps; 15-channel 4 MP@20 fps; 16-channel 3 MP@25 fps; 10-channel 1080p@60 fps; 20-channel 1080p@30 fps; 30-channel 720p@30 fps |
| Video Output | 1-channel VGA output, 4-channel HDMI output, VGA 1/ HDMI 1 outputs the same video source. |
| Multi-screen Display | 1st Screen: Max.64-channel 2nd Screen: Max.16-channel 3rd Screen: Max.1-channel 4th Screen: Max.1-channel |
| Third-party Camera Access | Onvif, RTSP, Sony, Panasonic, Axis, Arecont, Pelco, Canon, Samsung |
| Compression Standard | |
| Video Compression | Smart H.265+;H.265;Smart H.264+;H.264 |
| Audio Compression | G.711a;G.711u;PCM;G.726 |
| Network | |
| Network Protocol | HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;P2P;iSCSI |
| Mobile Phone Access | DMSS |
| Interoperability | ONVIF (Profile S, T and G); CGI; SDK |
| Browser | Chrome; PCAPP; IE9 or higher; Firefox |
| Network Mode | Multiple-address mode;Load balance;Fault-tolerance;Link aggregation |
| Recording Playback | |
| Multi-channel Playback | Max. 16-channel playback |
| Record Mode | Search video detection; IO alarm; thermal imaging; intelligent event; all record file |
| Storage Method | Internal HDD |
| Backup Method | HDD, peripheral USB storage device |
| Playback Function | 1. Play; Pause; Stop; Fast forward; Fast backward; Reverse play; Frame by frame; 2. Full-screen; Backup (clip and file); Snapshot; Digital zoom; Audio on and off |
| Storage | |
| Disk Group | Yes |
| Network Disk | iSCSI |
| RAID | RAID0;RAID1;RAID5;RAID6;RAID10;RAID50;RAID60 |
| Record Management | Supports record control (continuous, event-based, scheduled, scheduled & event-based). |
| Alarm | |
| General Alarm | Motion detection; tampering; local alarm; IPC external alarm; fire alarm; temperature alarm; temperature difference alarm; hot spot alarm; cold spot alarm |
| Anomaly Alarm | IPC offline alarm; storage error; HDD full; IP conflict; MAC conflict; login lock; AI module temperature alarm; AI module offline; fan malfunction; no HDD; network security exception; power exception |
| Alarm Linkage | Record; snapshot (full image); alarm uploading; remote device alarm output; camera audio; buzzer; log; preset; email, and smart tracking. Disarming alarm linkage action by period or one-click sync disarm config with channels |
| Port | |
| Audio Input | 1 channel |
| Audio Output | 2 channels |
| Alarm Input | 16 channels |
| Alarm Output | 8 channels |
| Disk Interface | 8 slots, SATA3.0. Max.20 TB/HDD |
| eSATA | 1 port |
| RS-232 | 1 port, for debug or COM data transmission |
| RS-485 | 1 port, control peripheral PTZ and so on. Supports various protocols. |
| USB | 4 ports. 2 USB2.0 ports at the front panel and 2 USB3.0 ports a the rear panel. |
| HDMI | 4 ports. HDMI 1 supports 4K output. |
| VGA | 1 port |
| Network Port | 4 RJ-45 10/100/1000Mbps self-adaptive Ethernet ports |
| Power | Single supply |
| General | |
| Disk Bay | 8 |
| Form Factor | 2U |
| Power Supply | 200–240 VAC, 50/60 Hz |
| Power Consumption | Working(all HDDs connected): ≤105W(358 BTU) Working(without HDD): ≤ 38W(130 BTU) Rated: ≤ 200W(683 BTU) |
| Fan | Intelligent speed regulation fan |
| Net Weight | 7.66 kg (16.89 lb) |
| Gross Weight | 10.24 kg (22.58 lb) |
| Product Dimensions | Chassis: 439.7 mm× 446.2 mm× 89.0 mm (17.31' × 17.57' × 3.50') (W × L × H) Max. size: 481.7 mm (with hanger) × 446.2 mm × 90.8 mm (with feet mat) (18.96' × 17.57' × 3.57') (W × L× H) |
| Packaging Dimensions | With packaging: 562 mm × 599 mm × 235mm (22.13' × 23.58' × 9.25')(W × L × H) Protection box: 491mm × 584 mm × 631 mm (19.33' × 22.99' × 24.84') (W × L × H) |
| Operating Temperature | 0? to +45? (+32 °F to +113 °F) |
| Operating Humidity | 10%–80% (RH), non-condensing |
| Operating Altitude | 5000 m (16404.20 ft) |
| Installation | Desktop; Rack |
| Certifications | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B UL 60950-1 |
| Marca | Dahua |
|---|---|
| MPN: | DHI-IVSS7108-1I |
