Dahua DHI-MXVR1004-GFWI mxvr1004-gfwi - dvr móvil wifi 1080p con ia/ 4 canales analogos + 1 ip/ / comunicación 3g/4g/wi-fi/ soporta: dsm/adas/bsd/reconocimiento facial/ soporta 2 tarjetas sd/ e&s alarmas/ sensor g/
Precio especial $7,739.00 IVA incluido + Envio $150 MXN
Antes $8,977.00
Disponible 240 Pzas
Antes $8,977.00
Disponible 240 Pzas
sku: DHI-MXVR1004-GFWI
pub
MX0000104343
MXVR1004-GFWI

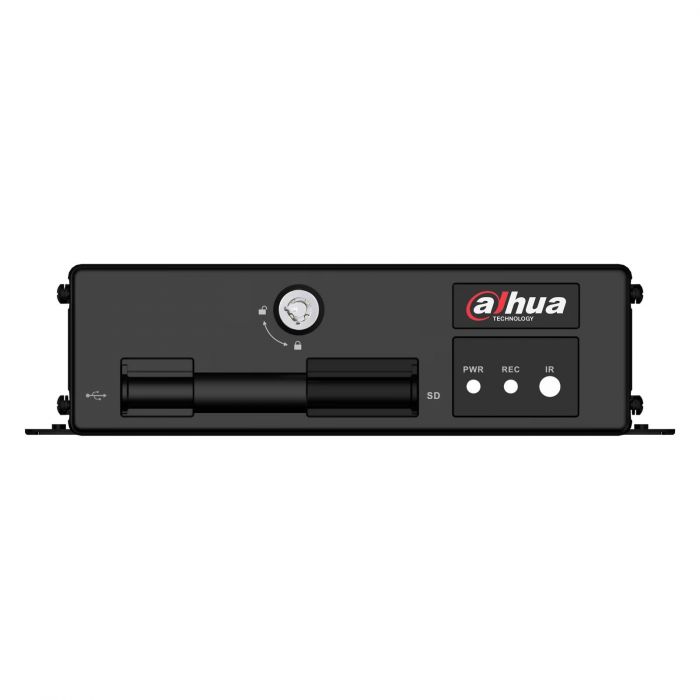

4 Channels H.265 Penta-brid AI Mobile Video Recorder
> Supports 4-ch analog cameras and 1-ch IP camera input
> Supports H.265/smart H.265 video compression
> Supports 2 SD cards (up to 256 GB for each)
> Supports DSM/ADAS/BSD/Face recognition
> Multiple network monitoring: Web viewer, Mobile Center & DMSS
| Video and Audio | |
| Analog Camera Input | 4 HDCVI/AHD/TVI/CVBS cameras |
| IP Camera Input | 1 IP camera |
| Encoding Capacity | 1080P/720P/960H/D1/CIF |
| Video Compression | H.265/smart H.265/H.264/smart H.264 |
| Dual-stream | Support (up to D1 encoding for sub stream) |
| Video Frame Rate | PAL: 1 – 25 fps NTSC: 1 – 30 fps |
| Video Output | 1-ch CVBS Output resolution: 800×600 |
| Display Split | 1/4/6 |
| Audio Compression | G.711A/G.711U/PCM |
| Network | |
| Band | Latin American Version |
| LTE-FDD: B1/2 /3/4/5/7/8/28 LTE-TDD: B40 WCDMA: B1/2/4/5/8 GSM/EDGE: B2/3/5/8 | |
| Tx Power | Max. Tx Power |
| 33 dBm ±2 dB | |
| 30 dBm ±2 dB | |
| 23 dBm ±2 dB | |
| 23 dBm ±2 dB | |
| Wi-Fi Frequency | 2.4 GHz |
| Wi-Fi Protocol | 802.11 b/g/n |
| AI | |
| DSM | Supports drowsy driving, distracted driving, calling, no driver, wearing IR blocking sunglasses, smoking, lens tampering and unbelted alarms. |
| ADAS | Supports Lane Departure Warning, Forward Collision Warning and Headway Monitoring Warning. |
| BSD | Supports human, motor vehicle, and non motor vehicle detection and warning. |
| Face Recognition | Supports face attribute detection and face comparison. |
| Recording Playback | |
| Recording Priority | Manual recording > alarm recording > motion detection recording > Timed recording |
| Recording Playback | 1/4 channels |
| Backup | SD card, USB flash drive and network backup |
| Storage | |
| SD card | 2 (up to 256GB for each) |
| Alarm | |
| General Alarm | Motion detection, video loss, video tampering, local alarm, camera offline |
| Abnormal Alarm | No HDD, HDD error, insufficient capacity, illegal login, battery low voltage, high temperature, rollover, collision, over speed, low speed, rapid turn, rapid speedup, sharp brake, network security exception, ACC off |
| Alarm Linkage | Log, record, snapshot, tour, buzzer, email, alarm output |
| Sensor | |
| Gyroscope | Supports event detection and alarm such as rollover, collision, rapid speedup/slowdown/turn. |
| External Interface | |
| Alarm Input | 7 channels (Alarm 1–6 are local alarm input, Alarm 7 is pulse input) |
| Alarm Output | 2 channels (1 relay out, 1 controllable 12VDC 0.5A out) |
| Audio Talk | Support |
| Pickup | N/A |
| RS-232 | 1 |
| RS-485 | 1 |
| CAN | N/A |
| USB | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0 from EXTEND port |
| Network Port | 1 × 10M/100M RJ45 (rear panel) |
| Satellite Positioning | GPS/GLONASS |
| General | |
| Power Supply | 6–36 VDC |
| Power Consumption | 6.7W (without peripheral ) Low power consumption: < 0.1W |
| Gross Weight | 2.83 kg (6.24 lb) (with packages) |
| Product Dimensions | 138 mm × 160 mm × 49 mm (5.4' × 6.3' × 2.0') |
| Packaging Dimensions | 308 mm × 293 mm × 123 mm (12.1' × 11.5' × 4.8') |
| Operating Temperature | –30 °C to +70°C (–22 °F to +158 °F) |
| Operating Humidity | 10% – 90% |
| Operating Altitude | 5000 m |
| Installation | Bracket |
| Certifications | CE/FCC/E-mark/EN50155 |
| Marca | Dahua |
|---|---|
| MPN: | DHI-MXVR1004-GFWI |
