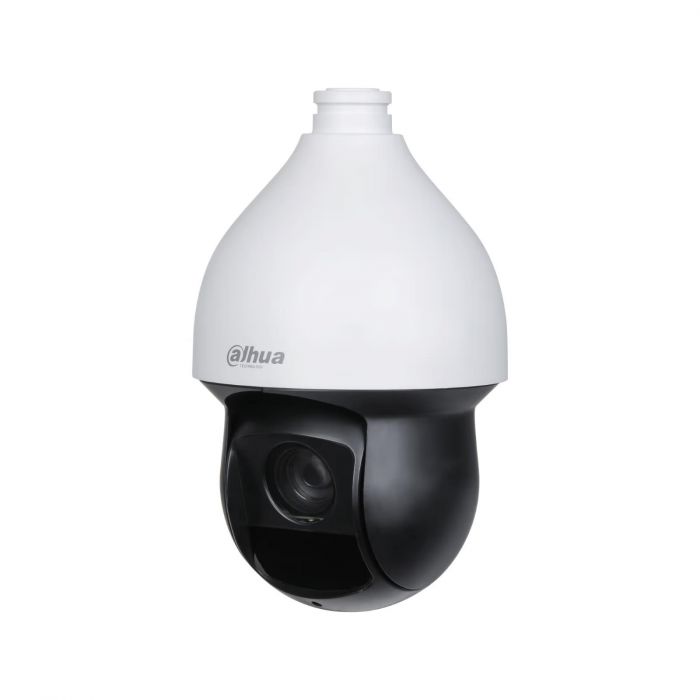

Dahua DH-SD59232DB-HC - cámara ptz de 2 mp con zoom óptico 32x y multivisión, ideal para vigilancia detallada. cuenta ir 150m, wdr real 120db, tecnología starlight, clasificación ip66, soporte audio alarmas.
Precio especial $10,788.00 IVA incluido + Envio $150 MXN
Antes $12,514.00
Disponible 34 Pzas
Antes $12,514.00
Disponible 34 Pzas
sku: DH-SD59232DB-HC
pub
MX0000104341
SD59232DB-HC
2MP 32x Starlight IR HDCVI PTZ Camera
> 1/2.8' 2Megapixel STARVIS™ CMOS.
> Powerful 32x optical zoom.
> Starlight technology.
> 120 dB true WDR, 3D NR.
> Max. 25/30 fps@1080p, 25/30/50/60 fps@720p.
> IR distance up to 150 m.· IP66.
| Camera | |
| Image Sensor | 1/2.8' CMOS |
| Pixel | 2 MP |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Electronic Shutter Speed | 1/3 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (illuminator) |
| Illumination Distance | 150 m (492.13 ft) (IR) |
| Illuminator On/Off Control | Zoom Prio; manual |
| Illuminator Number | 4 (IR) |
| Lens | |
| Focal Length | 4.5 mm–144 mm |
| Max. Aperture | F1.6–F4.0 |
| Field of View | H: 59.6°–2.8°; V: 34.1°–1.6°; D: 67.9°–3.3° |
| Optical Zoom | 32x |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.1 m–1.5 m (0.33 ft–4.92 ft) |
| Iris Control | Auto; manual |
| PTZ | |
| Pan/Tilt Range | Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°–300°/s; Tilt: 0.1°–200°/s |
| Preset Speed | Pan: 0.1°–400°/s; Tilt: 0.1°–300°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern; Preset; Scan; Tour |
| PTZ Protocol | DH-SD Pelco-P/D (Auto recognition) |
| Video | |
| Resolution | 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480) |
| Video Frame Rate | 1080p (25/30 fps); 720p (25/30/50/60 fps) |
| Day/Night | Yes |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Defog | Electronic |
| Digital Zoom | 16x |
| Image Rotation | 180° |
| Privacy Masking | Yes |
| S/N Ratio | ≥ 50 dB |
| Function | |
| CVI Product Output Mode | TVI; CVI; CVBS; AHD (CVBS is only used for debugging) |
| Certification | |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpart B, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1 |
| Port | |
| Analog Output | 1 channel (CVBS/CVI output, BNC) |
| RS-485 | 1 (baud rate range: 1200 bps–9600 bps) |
| Audio Input | 1 channel (LINE IN, bare wire) |
| Alarm Input | 2 (on-off value input: 0–5 VDC) |
| Alarm Output | 1 |
| Alarm Linkage | Scan; preset; tour; pattern; alarm digital output |
| Alarm Event | Alarm input |
| Power | |
| Power Supply | 24 VDC, 2.5 A ± 25% |
| Power Consumption | Basic: 10 W Max: 21 W (PTZ + illuminator) |
| Environment | |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | ≤ 95% |
| Protection | TVS 6000 V lightning proof; IP66; surge protection; voltage transient protection |
| Structure | |
| Product Dimensions | 310.0 mm × Φ185.7 mm (12.20' × Φ7.31') |
| Net Weight | 3.9 kg (8.60 lb) |
| Gross Weight | 7.2 kg (15.87 lb) |
| Marca | Dahua |
|---|---|
| MPN: | DH-SD59232DB-HC |
