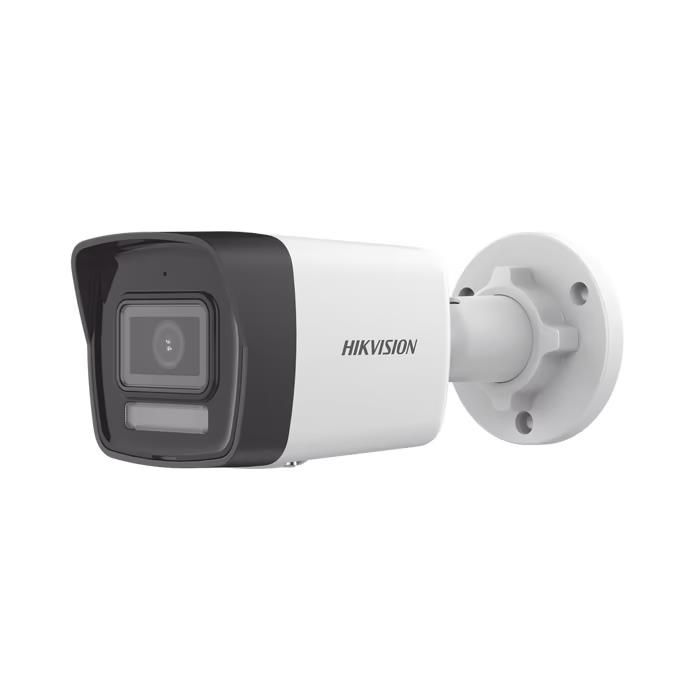

Hikvision DS-2CD1023G2-LIU(F) [dual light] bala ip 2 megapixel / lente 2.8 mm 30 mts ir + luz blanca micrófono integrado acusense lite exterior ip67 h.265 poe onvif micro sd

Cámara

• Sensor de imagen:1/2.9' Progressive Scan CMOS
• Max. Resolución:1920 × 1080
• Iluminación mínima:Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Tiempo de obturación:1/3 s to 1/100,000 s
• Día y Noche:IR cut filter
• Ajuste de ángulo:Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lente

• Lente:Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°

  4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°

• Montura del lente:M12
• Iris Type:Fixed
• Apertura:F1.6

DORI

• DORI

  2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m

  4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

Iluminador

• Tipo de luz suplementaria:IR,White Light
• Rango de luz suplementaria:Up to 30 m
• Luz de suplemento inteligente:Yes
• IR Wavelength:850 nm

Vídeo

• Main stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Compresión de video

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG

• Vídeo bitrate:32 Kbps to 8 Mbps
• Tipo H.264:Baseline Profile,Main Profile,High Profile
• Tipo H.265:Main Profile
• Bit Rate Control:CBR,VBR
• Región de interés (ROI):1 fixed region for main stream

Audio

• Tipo de audio:Mono sound
• Filtro de ruido ambiental:Yes
• Frecuencia de muestreo de audio:8 kHz/16 kHz
• Compresión de audio:G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Velocidad de bits de audio:64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Red

• Seguridad:Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Vista en vivo simultánea:Up to 6 channels
• API:Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
• Protocolos:TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• Usuario/operador

  Up to 32 users

  3 user levels: administrator, operator, and user

• Cliente:iVMS-4200,Hik-Connect
• Navegador web

  Plug-in required live view: IE 10, IE 11,

  Local service: Chrome 57.0+, Firefox 52.0+

Imagen

• Wide Dynamic Range (WDR):Digital WDR
• SNR:≥ 52 dB
• Interruptor día/noche:Day,Night,Auto,Schedule
• Mejora de la imagen:BLC,HLC,3D DNR
• Configuración de imagen:Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Máscara de privacidad:4 programmable polygon privacy masks

Interfaz

• Ethernet Interface:1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage:-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Micrófono incorporado:Yes
• Reset Key:-F: Yes

Evento

• Evento Básico:Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Linkage:Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

General

• alimentación

  12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

  PoE: IEEE 802.3af, Class 3, max: 6.5 W

• Material:Metal & Plastic
• Dimensión:170.8 mm × 66 mm × 69.1 mm (6.7' × 2.6' × 2.7')
• Dimensión del paquete:216 mm × 121 mm × 118 mm (8.5' × 4.8' × 4.6')
• Weight:Approx. 265 g (0.6 lb.)
• Con peso del paquete:Approx. 495 g (1.1 lb.)
• Condiciones de almacenaje:-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Condiciones de inicio y funcionamiento:-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Idioma:English, Ukrainian
• Función general:Heartbeat,anti-banding,mirror,password protection,password reset via email

Certificaciones

• EMC

  FCC: 47 CFR Part 15, Subpart B,

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7

• Seguridad

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

• Ambiente

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• Protección:IP67: IEC 60529-2013
