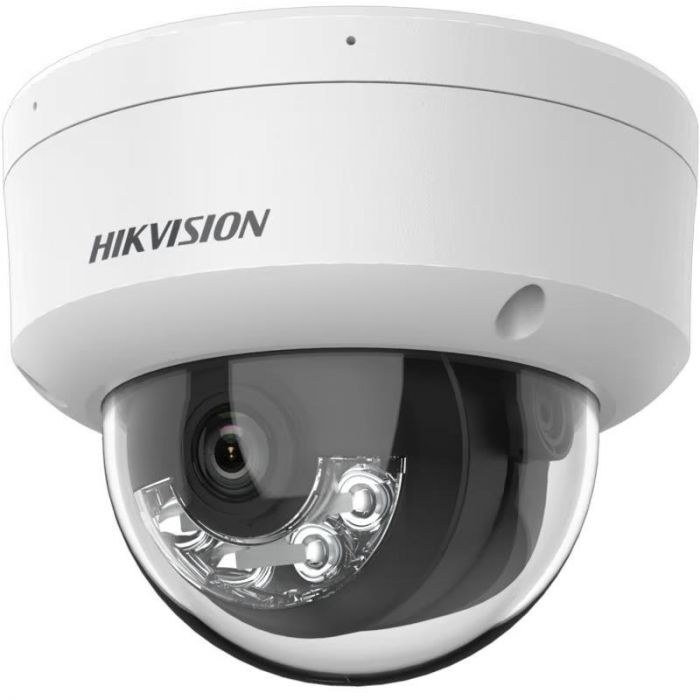

Hikvision DS-2CD1143G2-LIUF domo ip 4 megapixel / lente 2.8 mm dual light (30 mts ir + 30 luz blanca) micrófono integrado antivandalico ik08 acusense lite exterior ip67 h.265 poe onvif micro sd
Antes $2,281.00
Disponible 190 Pzas
-
Cámara
- Sensor de imagen1/3' Progressive Scan CMOS
- Max. Resolución2560 × 1440
- Iluminación mínimaColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Tiempo de obturación1/3 s to 1/100,000 s
- Día y NocheIR cut filter
- Ajuste de ánguloPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
-
Lente
- LenteFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°
- Montura del lenteM12
- Iris TypeFixed
- AperturaF1.6
-
DORI
- DORI
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
-
Iluminador
- Tipo de luz suplementariaIR,White Light
- Rango de luz suplementariaUp to 30 m
- Luz de suplemento inteligenteYes
- IR Wavelength850 nm
-
Vídeo
- Main stream
50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720)
- Sub-stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
- Compresión de video
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
- Vídeo bitrate32 Kbps to 8 Mbps
- Tipo H.264Baseline Profile,Main Profile,High Profile
- Tipo H.265Main Profile
- Bit Rate ControlCBR,VBR
- Región de interés (ROI)1 fixed region for main stream
-
Audio
- Tipo de audioMono sound
- Filtro de ruido ambientalYes
- Frecuencia de muestreo de audio8 kHz/16 kHz
- Compresión de audioG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Velocidad de bits de audio64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
-
Red
- SeguridadPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Vista en vivo simultáneaUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
- ProtocolosTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
- Usuario/operador
Up to 32 users
3 user levels: administrator, operator, and user
- ClienteiVMS-4200,Hik-Connect
- Navegador web
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+
-
Imagen
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Interruptor día/nocheDay,Night,Auto,Schedule
- Mejora de la imagenBLC,HLC,3D DNR
- Configuración de imagenRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Máscara de privacidad4 programmable polygon privacy masks
-
Interfaz
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Micrófono incorporadoYes
- Reset Key-F: Yes
-
Evento
- Evento BásicoMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- LinkageUpload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
-
General
- alimentación
12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7.5 W
- MaterialMetal & Plastic
- DimensiónØ121.4 mm × 97.7 mm (Ø4.8' × 3.8')
- Dimensión del paquete150 mm × 150 mm × 141 mm (5.9' × 5.9' × 5.6')
- Approx. 550 g (1.2 lb.)
- Con peso del paqueteApprox. 800 g (1.8 lb.)
- Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- IdiomaEnglish, Ukrainian
- Función generalHeartbeat,anti-banding,mirror,password protection,password reset via email
-
Certificaciones
- EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
- Seguridad
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Ambiente
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtecciónIP67: IEC 60529-2013,IK08: IEC 62262:2002
| Marca | Hikvision |
|---|---|
| MPN: | DS-2CD1143G2-LIUF |
