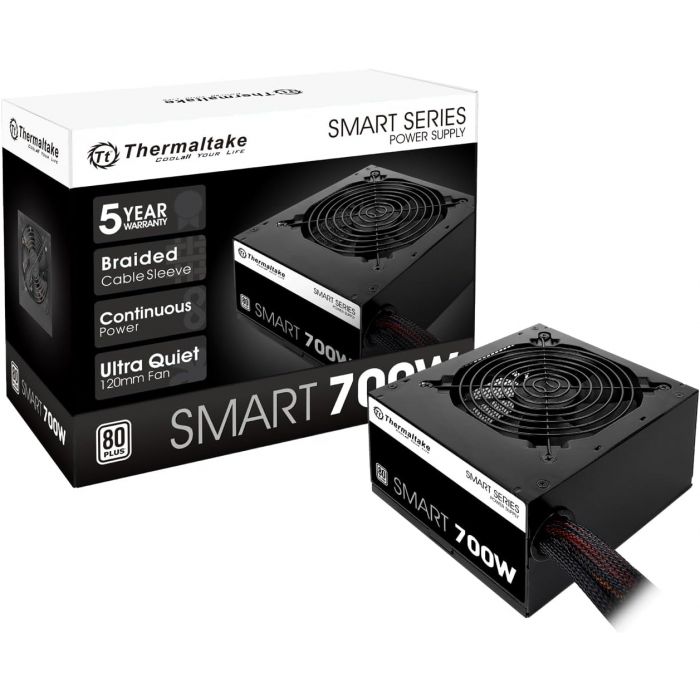

Thermaltake 841163062258 smart power supply unit 700 w 24-pin atx black ps-spd-0700npcwus-w
Precio especial $1,393.00 IVA incluido + Envio $150 MXN
Antes $1,616.00
Disponible 0 Pzas
Antes $1,616.00
Disponible 0 Pzas
Agotado
pub
MX0000103993
PS-SPD-0700NPCWUS-W
Thermaltake Smart 500W
Incorporating various high-quality components, the Smart Series – models are rated from 500W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.
120mm Ultra Quiet Fan
Smart Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
Multiple Connectors
Smart 500W connector’s specification as below:
80 PLUS Standard Certified and Haswell Ready
Smart Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® Standard Certified.
High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
Single +12V Output
Smart Series is equipped with a powerful +12V rail, superior performance under all types of system loading. Please see the output specification below:
Incorporating various high-quality components, the Smart Series – models are rated from 500W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.
120mm Ultra Quiet Fan
Smart Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
Multiple Connectors
Smart 500W connector’s specification as below:
80 PLUS Standard Certified and Haswell Ready
Smart Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® Standard Certified.
High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
Single +12V Output
Smart Series is equipped with a powerful +12V rail, superior performance under all types of system loading. Please see the output specification below:
Technical Information
| Cooling | |
|---|---|
| Fan diameter | 4.72' (12 cm) |
| Number of fans | 1 fan(s) |
| Fan speed | 1800 |
| Fan location | Top |
| Cooling type | Active |
| Design | |
| Safety | CE, CB, TUV, UL, FCC |
| Product colour | Black |
| Fan diameter | 4.72' (12 cm) |
| Number of fans | 1 fan(s) |
| Fan speed | 1800 |
| Fan location | Top |
| Cooling type | Active |
| Power | |
| Total power | 700 W |
| Power Good signal delay range | 100 - 500 ms |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 12 A |
| Power Factor Correction (PFC) type | Active |
| Maximum input current (@110V) | 12 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 54 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over power, Short circuit |
| Hold time | 16 ms |
| Efficiency | 87% |
| Ports & interfaces | |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (8-pin) | 2 |
| CPU P4 connector (4-pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Non-Modular |
| Performance | |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| ATX version | 2.3 |
| Safety | CE, CB, TUV, UL, FCC |
| Mean time between failures (MTBF) | 100000 h |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -40 - 55 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width | 5.91' (150 mm) |
| Depth | 5.51' (140 mm) |
| Height | 3.39' (86 mm) |
| Packaging data | |
| Manual | Yes |
| Certificates | |
| Safety | CE, CB, TUV, UL, FCC |
| Packaging content | |
| Manual | Yes |
| Other features | |
| Manual | Yes |
| Marca | Thermaltake |
|---|---|
| MPN: | 841163062258 |
