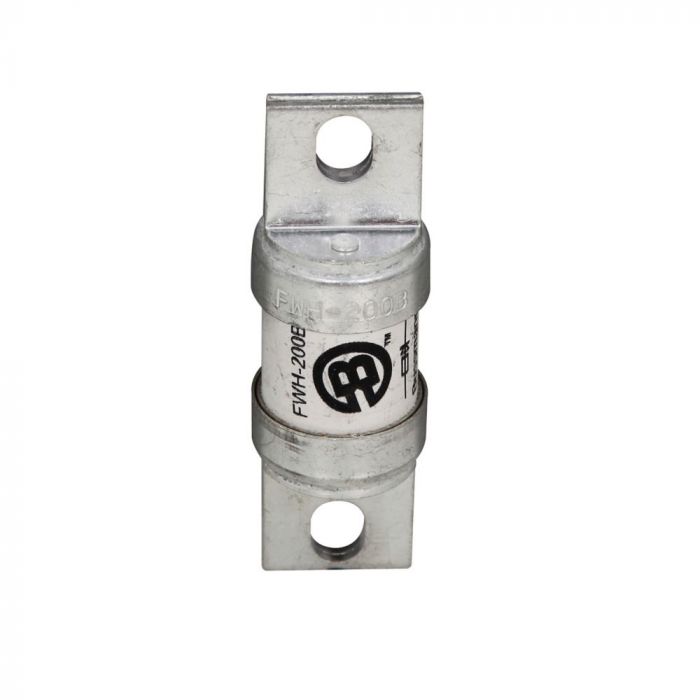

Bussman FWH-200B fusible ultrarrápido de navajas 500vcavcd
Precio especial $1,299.00 IVA incluido + Envio $150 MXN
Antes $1,507.00
Disponible 33 Pzas
Antes $1,507.00
Disponible 33 Pzas
sku: FWH-200B
pub
MX0000103898
FWH-200B
Eaton Bussmann series FWH high speed fuse, 500 Vac/dc (UL), 200A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, None, High speed fuse, Blade end X blade end, Class aR, Stud, White, Ceramic
General specifications |
|
Product Name | Eaton Bussmann series high speed cylindrical fuse |
Catalog Number | FWH-200B |
UPC | 051712795869 |
EAN | 5027590020916 |
Product Length/Depth | 91 mm |
Product Height | 30 mm |
Product Width | 30 mm |
Product Weight | 152 g |
Warranty | Not Applicable |
Compliances | CE Marked RoHS Compliant |
Certifications | UL Recognized CSA Certified |
Product specifications |
|
Type | High speed fuse |
Application | Semiconductor, DC Common bus, DC drives, Power converters/rectifiers |
Amperage Rating | 200 A |
Breaking capacity | 200 kA |
Fuse indicator | Non Indicating |
Insulated metal gripping lugs (IMGL) | No |
Utilization category | aR (accompanied semiconductor protection) |
Voltage type | AC/DC |
Rated switching capacity | 200 kA |
Rated voltage AC | 500 V |
Rated voltage DC | 500 V |
Mounting dimension | M8 |
Center-to-center distance of connections | 74.09 mm |
Current type | AC/DC |
Class | Class aR |
Clearing (I2T) | 8500 |
Watt losses | 40 W |
Fuse shape | Center bolted tags |
Pre arc (I2T) | 1900 |
Color | White |
Interrupt rating | 200 kAIC at 300 Vdc 50 kAIC at 300 Vdc |
Connection | Blade end x blade end |
Construction size | Other |
Material | Ceramic |
Mounting method | Stud |
Quantity | 1 |
Voltage rating | 500 Vac, 500 Vdc |
Fuse type | FWH-B |
Fuse system (according to IEC 60269) | Other |
Marca | Bussman |
---|---|
MPN: | FWH-200B |
