Bussman FRN-R-175 fusible clase rk5 doble elemento acción retardada 250vca125vcd
Precio especial $1,368.00 IVA incluido + Envio $150 MXN
Antes $1,587.00
Disponible 3 Pzas
Antes $1,587.00
Disponible 3 Pzas
sku: FRN-R-175
pub
MX0000103893
FRN-R-175

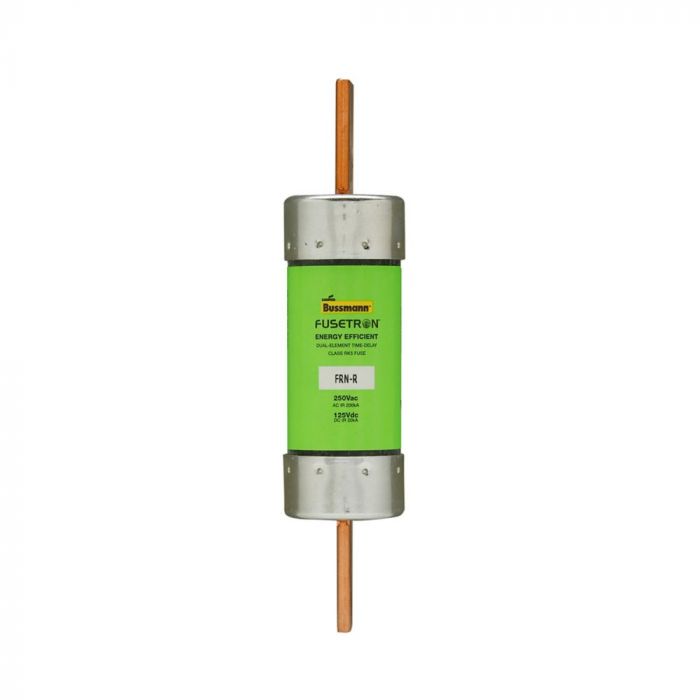

Eaton Bussmann Series Class RK5 fuse, FRN-R, time-delay, dual-element, current limiting fuse, 175 A, non-indicating fuse, interrupting rating of 200 kA at 250 Vac and 20 kA at 125 Vdc
General specifications |
|
| Product Name | Eaton Bussmann series FRN-R fuse |
| Catalog Number | FRN-R-175 |
| UPC | 051712507479 |
| Product Length/Depth | 2 in |
| Product Height | 0.56 in |
| Product Width | 0.56 in |
| Product Weight | 0.5 lb |
| Warranty | Not Applicable |
| Compliances | CE Marked |
Electrical rating |
|
| Amperage Rating | 175 A |
| Interrupt rating | 20 kAIC at 125 Vdc 200 kAIC at 250 Vac |
| Response time | 10 sec at 500% |
| Voltage rating | 250 Vac, 125 Vdc |
Physical details |
|
| Number of elements | Dual |
| Packaging type | Standard |
General information |
|
| Class | Class RK5 |
| Connection | Blade end x blade end |
| Fuse indicator | Non-indicating |
| Marca | Bussman |
|---|---|
| MPN: | FRN-R-175 |
