Bussman T60030-3CR base portafusibles para fusibles clase t, 300vca
Precio especial $1,343.00 IVA incluido + Envio $150 MXN
Antes $1,558.00
Disponible 8 Pzas
Antes $1,558.00
Disponible 8 Pzas
sku: T60030-3CR
pub
MX0000103886
T60030-3CR

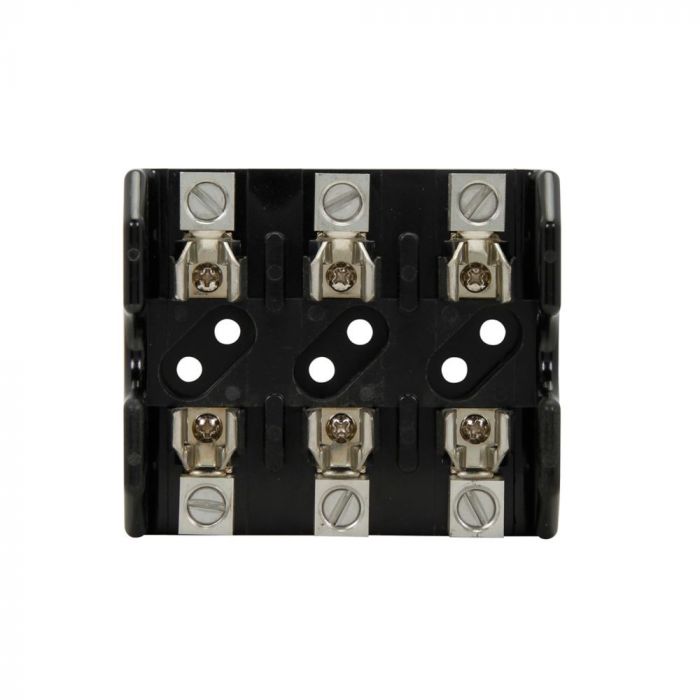

Eaton Bussmann series Class T modular fuse block, CR, 600 Vac/Vdc or less individual control circuits, 0-30 A, Three-pole, Class T, Box lug, 200 kAIC, Glass polyester, #2 AWG Cu/Al
General specifications |
|
| Product Name | Eaton Bussmann series Class T modular fuse block |
| Catalog Number | T60030-3CR |
| UPC | 051712148092 |
| Product Length/Depth | 0.001 in |
| Product Height | 0.001 in |
| Product Width | 0.001 in |
| Product Weight | 0.52 lb |
| Warranty | Not Applicable |
| Compliances | RoHS Compliant CE Marked |
| Certifications | Contact Manufacturer UL Listed CSA Certified |
Electrical rating |
|
| Amperage Rating | 0-30A |
| Interrupt rating | 200 kAIC |
| Short-circuit rating | 200 kA |
| Voltage rating | 600 Vac, 600 Vdc |
Physical details |
|
| Material | Glass polyester |
| Number of Poles | Three-pole |
| Wire size | #2 AWG Cu/Al |
General information |
|
| Class | Class T |
| Connection | Box lug |
| Special features | CR |
| Marca | Bussman |
|---|---|
| MPN: | T60030-3CR |
