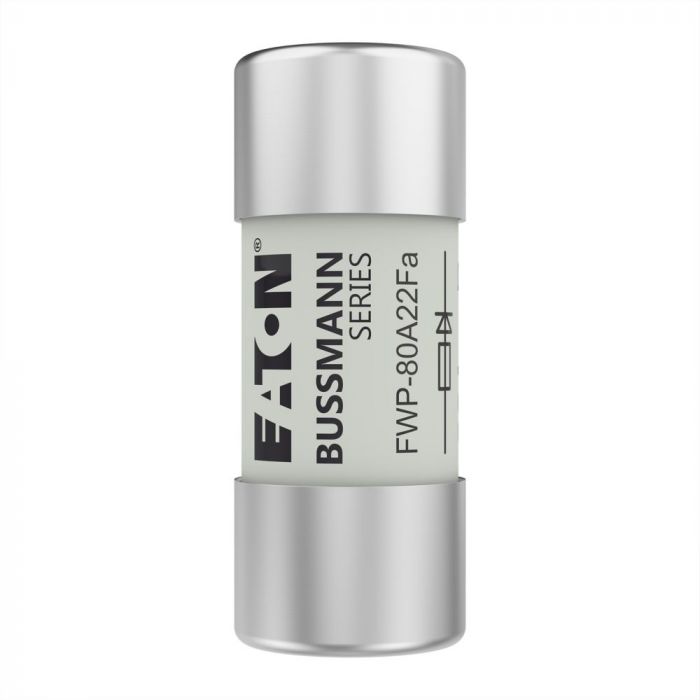

Bussman FWP-80A22F fusible ultra rápido 22 x 58mm 700vcavcd
Precio especial $1,342.00 IVA incluido + Envio $150 MXN
Antes $1,557.00
Disponible 5 Pzas
Antes $1,557.00
Disponible 5 Pzas
sku: FWP-80A22F
pub
MX0000103884
FWP-80A22F
Eaton Bussmann series FWP high speed fuse, 700 Vac, 700 Vdc (UL), 80A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic
General specifications |
|
Product Name | Eaton Bussmann series high speed cylindrical fuse |
Catalog Number | FWP-80A22F |
UPC | 051712370875 |
EAN | 5027590501101 |
Product Length/Depth | 58 mm |
Product Height | 23 mm |
Product Width | 23 mm |
Product Weight | 61.3 g |
Warranty | Not Applicable |
Compliances | CE Marked RoHS Compliant |
Certifications | CSA Certified UL Recognized |
Product specifications |
|
Used with | Finger safe holders/blocks and striker |
Type | High speed fuse |
Application | Semiconductor, DC Common bus, DC drives, Power converters/rectifiers |
Amperage Rating | 80 A |
Accessories | JM70100 Fuse base |
Breaking capacity | 200 kA |
Frequency rating - max | 62 Hz |
Frequency rating - min | 45 Hz |
Fuse indicator | Other |
Release characteristic | Other |
Utilization category | aR (accompanied semiconductor protection) |
Voltage type | AC/DC |
Fuse size | 22 x 58 mm |
Class | Class aR |
Clearing (I2T) | 7800 |
Watt losses | 15 W |
Fuse shape | Cylindrical |
Minimum melting | 600 I2t (A2 sec) |
Pre arc (I2T) | 550 |
Color | White |
Interrupt rating | 200 kAIC |
Connection | Ferrule end x ferrule end |
Construction size | 22 mm x 58 mm |
Material | Ceramic |
Packaging type | Standard |
Quantity | 10 |
Voltage rating | 700 V |
Fuse type | FWP-A22F |
Marca | Bussman |
---|---|
MPN: | FWP-80A22F |
