Bussman JTN60060 portafusibles modulares clase j con indicador
Precio especial $1,320.00 IVA incluido + Envio $150 MXN
Antes $1,531.00
Disponible 2 Pzas
Antes $1,531.00
Disponible 2 Pzas
sku: JTN60060
pub
MX0000103883
JTN60060

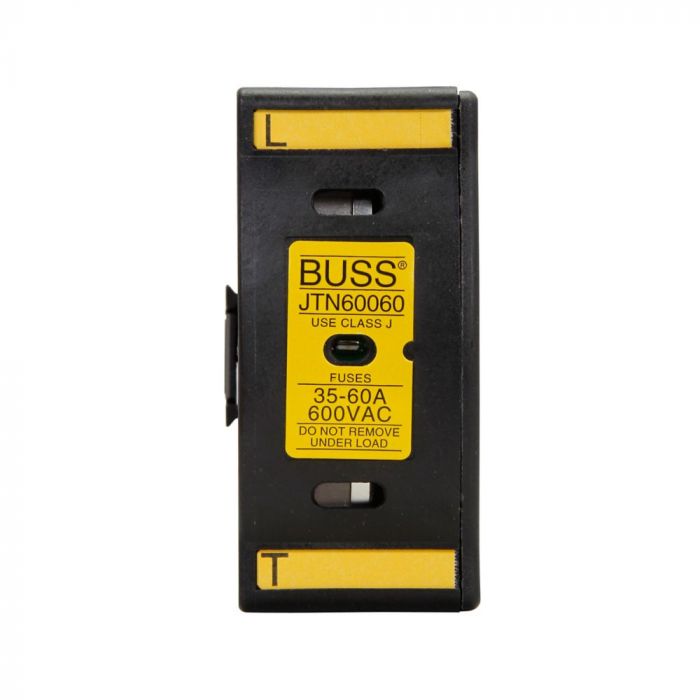

Eaton Bussmann series JT finger-safe fuse holder, Indicating (neon), Industrial Controls, Process Controls, Small HP VFDs, 60 A, 75°C, 75°C, Class J, 14 - 4 AWG tin plated copper alloy terminal, Thermoplastic, 35 mm DIN rail, 600 V
General specifications |
|
| Product Name | Eaton Bussmann series JT finger-safe fuse holder |
| Catalog Number | JTN60060 |
| UPC | 051712561136 |
| Product Length/Depth | 3.6 in |
| Product Height | 3.1 in |
| Product Width | 1.52 in |
| Product Weight | 0.438 lb |
| Warranty | Not Applicable |
| Compliances | RoHS Compliant CE Marked |
| Certifications | Contact Manufacturer UL Recognized CSA Certified |
Electrical rating |
|
| Amperage Rating | 60 A |
| Voltage rating | 600 V |
Physical details |
|
| Material | Thermoplastic |
| Operating temperature - max | 75 °C |
| Operating temperature - min | 75 °C |
General information |
|
| Class | Class J |
| Connection | 14 to 4 AWG tin plated copper alloy terminal |
| Mounting method | 35 mm DIN rail |
| Marca | Bussman |
|---|---|
| MPN: | JTN60060 |
