Bussman R25100-3CR Bussmann portafusibles 3p 100a 250v clase r -
Precio especial $1,322.00 IVA incluido + Envio $150 MXN
Antes $1,534.00
Disponible 4 Pzas
Antes $1,534.00
Disponible 4 Pzas
sku: R25100-3CR
pub
MX0000103881
R25100-3CR

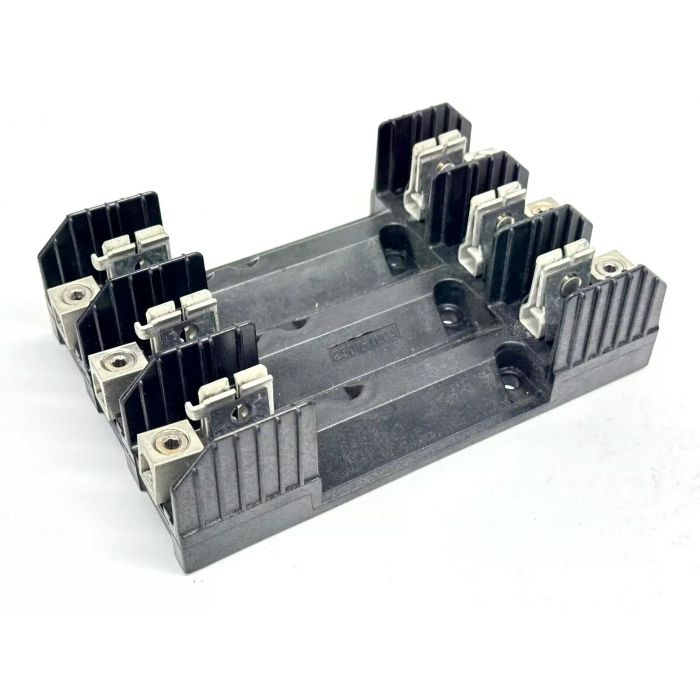

Fuseblock, 3-P, 100A/250V Max, R,
CLASS R Series Information
- 1/10~600 Amps
- 250 or 600 Volts
- 1~3 Poles
- Panel Mount
- Various Terminal Types
Bussmann Class R Fuse blocks accommodate all Class R 250V and 600V power fuses. A choice of screw terminals, pressure connectors, and box lug wire connectors are available
Specifications
| In Stock | No |
|---|---|
| Ships Factory Direct | No |
| Manufacturer Part Number | R25100-3CR |
| Manufacturer | Bussmann |
| Product Series | CLASS R |
| Family Series | Bussmann Fuseblocks & Holders, CLASS R Series |
| Description | Fuseblock, 3-P, 100A/250V Max, R, Box Lug Terminals |
| Max Current | 100 A |
| Voltage | 250 V |
| Poles | 3 |
| Connection Type | Box Lug |
| Mounting Type | Panel Mount |
| Composition | Thermoplastic |
| Trip Indicator | No |
| Reinforced | Yes |
| Enclosed | No |
| Fuse Blocks & Holders Type | Class R |
| Approvals | CE, CSA, UL |
| Net Weight | 1.07 lbs |
| Gross Weight | 1.06 lbs |
| Marca | Bussman |
|---|---|
| MPN: | R25100-3CR |
