Bussman CCP2-2-30CC protector compacto de circuitos para fusibles clase cc
Precio especial $1,445.00 IVA incluido + Envio $150 MXN
Antes $1,676.00
Disponible 19 Pzas
Antes $1,676.00
Disponible 19 Pzas
sku: CCP2-2-30CC
pub
MX0000103880
CCP2-2-30CC

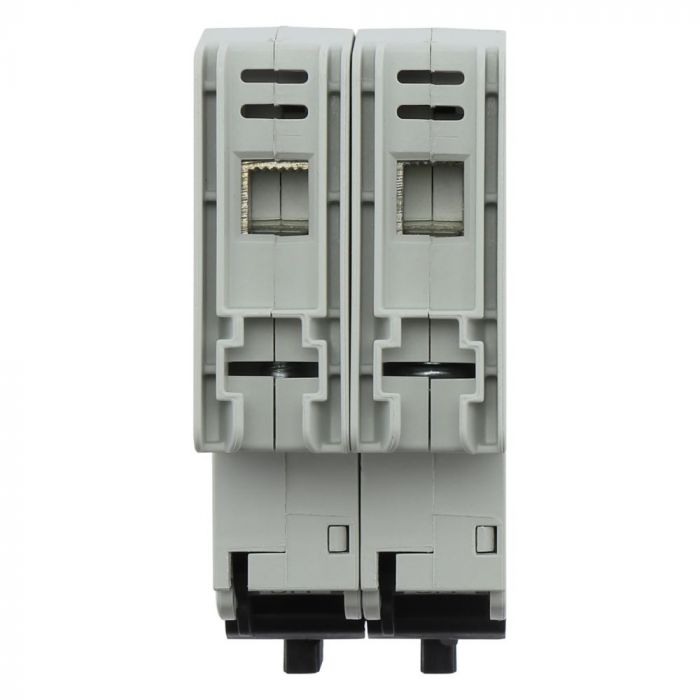

Eaton Bussmann series CCP UL98 fusible disconnect, 600 Vac, 125 Vdc, 30A, UL98 fusible disconnect, Two-pole, 60 Hz, Class CC, 200 - CCP2-2-30CC
General specifications |
|
Product Name | Eaton Bussmann series CCP UL98 fusible disconnect |
Catalog Number | CCP2-2-30CC |
UPC | 051712709170 |
Product Length/Depth | 3.9 in |
Product Height | 3.1 in |
Product Width | 1.4 in |
Product Weight | 1.46 lb |
Warranty | Not Applicable |
Compliances | RoHS Compliant |
Certifications | UL 98 |
Electrical rating |
|
Amperage Rating | 30A |
Frequency rating | 50/60 Hz |
Short-circuit rating | 200 kA |
Voltage rating | 600 Vac, 125 Vdc |
Physical details |
|
Fuse type | Class CC |
Number Of Poles | Two-pole |
General information |
|
Special features | Finger Safe, 1/4' LOTO |
Suitable for fuses | LP-CC-1/2 to LP-CC-30 KTK-R-1/10 to KTK-R-30 FNQ-R-1/4 to FNQ-R-30 |
Marca | Bussman |
---|---|
MPN: | CCP2-2-30CC |
