Bussman CH30J3I portafusible modular para fusibles clase j con indicador
Precio especial $1,574.00 IVA incluido + Envio $150 MXN
Antes $1,826.00
Disponible 7 Pzas
Antes $1,826.00
Disponible 7 Pzas
sku: CH30J3I
pub
MX0000103879
CH30J3I

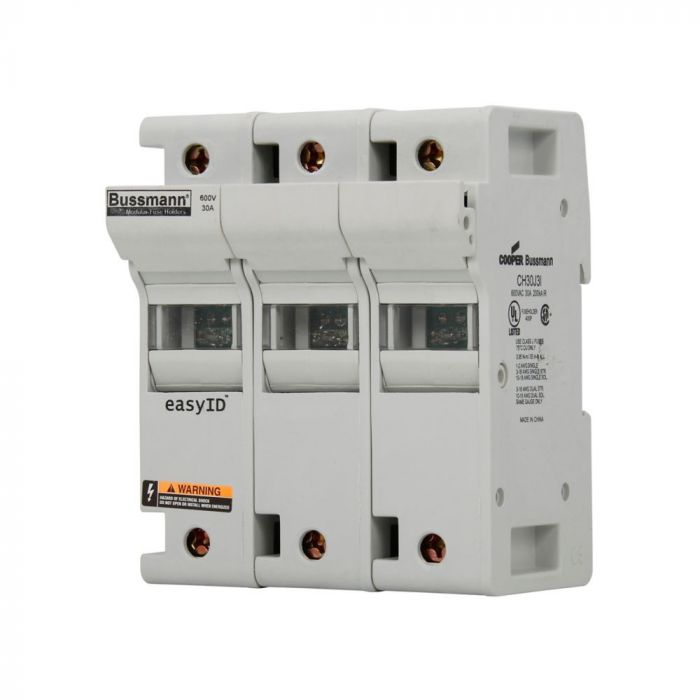

Eaton Bussmann series CH modular fuse holder, Neon lamp, 30 A, Three-pole, Class J, Tin-plated copper clip, Thermoplastic housing, Panel, 35 mm DIN rail, 600 Vac/dc
General specifications |
|
Product Name | Eaton Bussmann series CH modular fuse holder |
Catalog Number | CH30J3I |
UPC | 051712630870 |
EAN | 5027590161862 |
Product Length/Depth | 5 in |
Product Height | 2 in |
Product Width | 4.5 in |
Product Weight | 1.282 lb |
Warranty | Not Applicable |
Compliances | RoHS Compliant CE Marked |
Certifications | Contact Manufacturer UL Listed CSA Certified |
Electrical rating |
|
Amperage Rating | 30 A |
Voltage rating | 600 Vac, 600 Vdc |
Physical details |
|
Material | Thermoplastic housing Tin-plated copper clip |
Number of Poles | Three-pole |
Operating temperature - max | 85 °C |
Operating temperature - min | 85 °C |
General information |
|
Class | Class J |
Mounting method | Panel 35 mm DIN rail |
Special features | Neon lamp |
Marca | Bussman |
---|---|
MPN: | CH30J3I |
