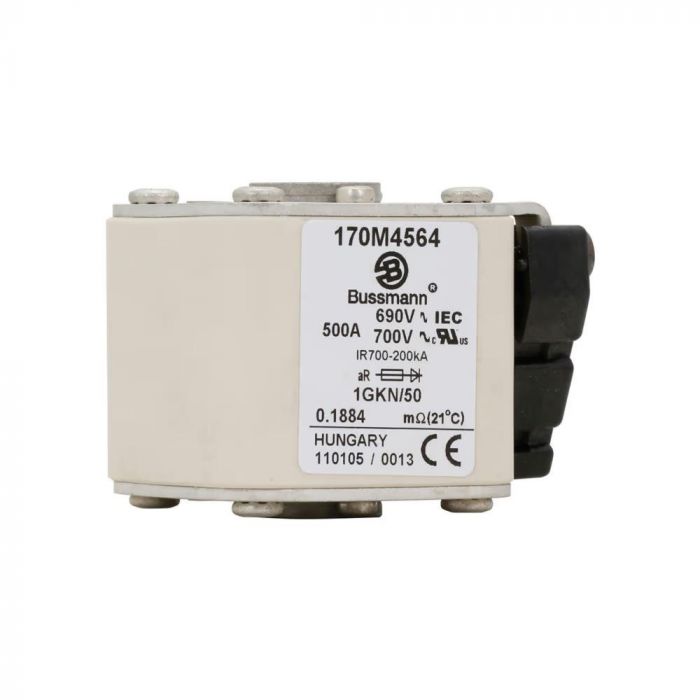

Bussman 170M4564 fusible semiconductor tubo de ceramica europeo 500a 690v 1gkn50 ar uc
Precio especial $1,431.00 IVA incluido + Envio $150 MXN
Antes $1,660.00
Disponible 4 Pzas
Antes $1,660.00
Disponible 4 Pzas
sku: 170M4564
pub
MX0000103878
170M4564
Fuse-link, high speed, 500 A, AC 690 V, size 1, 53 x 69 x 51 mm, aR, IEC, UL, single indicator
General specifications |
|
| Product Name | Eaton Bussmann series high speed square body fuse |
| Catalog Number | 170M4564 |
| UPC | 051712259262 |
| EAN | 5027590453547 |
| Product Length/Depth | 170 mm |
| Product Height | 52 mm |
| Product Width | 72 mm |
| Product Weight | 397.3333333 g |
| Warranty | Not Applicable |
| Compliances | CE Marked RoHS Compliant |
| Certifications | UL Recognized IEC Rated |
Product specifications |
|
| Type | Fuse |
| Application | Semiconductor, DC Common bus, DC drives, power converters/rectifiers |
| Amperage Rating | 500 A |
| Breaking capacity | 200 kA |
| Fuse indicator | Centre fuse status indicator |
| Insulated metal gripping lugs (IMGL) | No |
| Utilization category | aR (accompanied semiconductor protection) |
| Voltage type | AC |
| Fuse size | 1 |
| Rated voltage AC | 690 V |
| Center-to-center distance of connections | 51 mm |
| Current type | AC |
| Mounting dimension | Other |
| Class | Class aR |
| Clearing (I2T) | 170000 at 660 V |
| Watt losses | 72 W |
| Fuse shape | Square body, flush end contacts |
| Pre arc (I2T) | 25000 |
| Color | None |
| Interrupt rating | 200 kAIC |
| Fitted with | Type K Indicator for micro |
| Construction size | 1 |
| Mounting method | Flush |
| Packaging type | Standard |
| Voltage rating | 690 V (IEC), 700 V (UL) |
| Fuse type | Flush end GKN/Type K indicator for micro |
| Fuse system (according to IEC 60269) | IEC 60269-4 flush end connections type A |
| Marca | Bussman |
|---|---|
| MPN: | 170M4564 |
