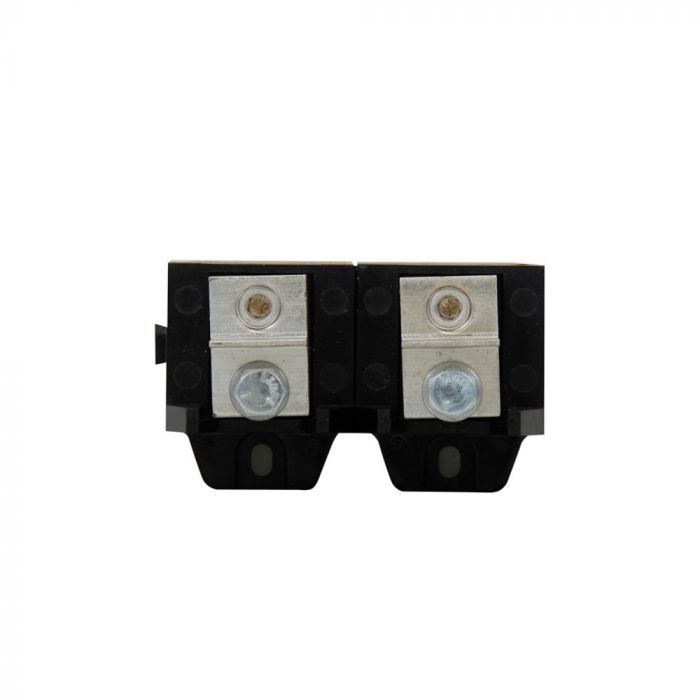

Bussman 1BS101 portafusible modular para fusibles ultrarrápidos
Precio especial $1,623.00 IVA incluido + Envio $150 MXN
Antes $1,883.00
Disponible 7 Pzas
Antes $1,883.00
Disponible 7 Pzas
sku: 1BS101
pub
MX0000103875
1BS101
Eaton Universal fuse block, Modular, 100 A, 150, Celsius, 150, Celsius, Set screw, 200 kAIC, Molded black phenolic base, Zinc-plated steel studs/nut/washer, Tin-plated aluminum connector, Stud, 600 V, #14-2/0 AWG Cu/Al
General specifications |
|
| Product Name | Eaton Bussmann series 1BS10x universal fuse block |
| Catalog Number | 1BS101 |
| UPC | 051712134989 |
| Product Length/Depth | 4.4 in |
| Product Height | 2.6 in |
| Product Width | 3.2 in |
| Product Weight | 0.425 lb |
| Warranty | Not Applicable |
| Compliances | Contact factory RoHS Compliant |
Electrical rating |
|
| Amperage Rating | 100 A |
| Interrupt rating | 200 kAIC |
| Voltage rating | 600 V |
Physical details |
|
| Material | Tin-plated aluminum connector Zinc-plated steel studs/nut/washer Molded black phenolic base |
| Operating temperature - max | 150 °C |
| Operating temperature - min | 150 °C |
| Wire size | #14-2/0 AWG Cu/Al |
General information |
|
| Connection | Set screw |
| Mounting method | Stud |
| Marca | Bussman |
|---|---|
| MPN: | 1BS101 |
