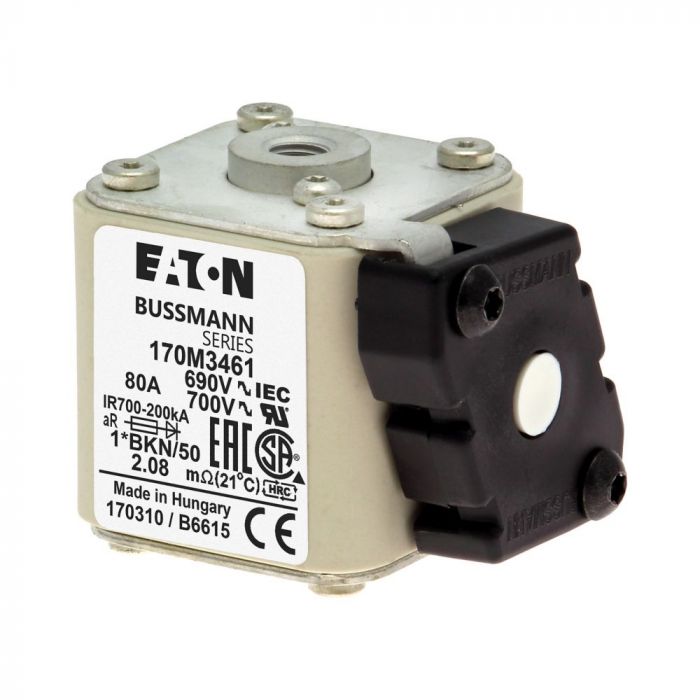

Bussman 170M3461 fusible semiconductor tubo de cerámica europeo 80a 690v 1*bkn50 ar uc
Precio especial $1,657.00 IVA incluido + Envio $150 MXN
Antes $1,922.00
Disponible 2 Pzas
Antes $1,922.00
Disponible 2 Pzas
sku: 170M3461
pub
MX0000103874
170M3461
Fuse-link, high speed, 80 A, AC 690 V, compact size 1, 45 x 59 x 51 mm, aR, IEC, UL, type K indicator
General specifications |
|
| Product Name | Eaton Bussmann series high speed square body fuse |
| Catalog Number | 170M3461 |
| Model Code | FUSE 80A 690V 1*BKN/50 AR UC |
| UPC | 051712799935 |
| EAN | 5027590447843 |
| Product Length/Depth | 193 mm |
| Product Height | 47 mm |
| Product Width | 106 mm |
| Product Weight | 261 g |
| Warranty | Not Applicable |
| Compliances | CE Marked RoHS Compliant |
| Certifications | IEC Rated UL Recognized |
Product specifications |
|
| Type | Fuse |
| Application | Semiconductor, DC Common bus, DC drives, power converters/rectifiers |
| Amperage Rating | 80 A |
| Breaking capacity | 200 kA |
| Fuse indicator | Centre fuse status indicator |
| Insulated metal gripping lugs (IMGL) | No |
| Utilization category | aR (accompanied semiconductor protection) |
| Voltage type | AC |
| Fuse size | 1* |
| Rated voltage AC | 690 V |
| Center-to-center distance of connections | 50 mm |
| Current type | AC |
| Mounting dimension | M8 |
| Class | Class aR |
| Clearing (I2T) | 1250 at 660 V |
| Watt losses | 18 W |
| Fuse shape | Square body, flush end contacts |
| Pre arc (I2T) | 185 |
| Color | None |
| Interrupt rating | 200 kAIC |
| Fitted with | Type K Indicator for micro |
| Construction size | Other |
| Mounting method | Flush |
| Packaging type | Standard |
| Voltage rating | 690 V (IEC), 700 V (UL) |
| Fuse type | Flush end BKN/Type K Indicator for Micro |
| Fuse system (according to IEC 60269) | IEC 60269-4 flush end connections type A |
| Marca | Bussman |
|---|---|
| MPN: | 170M3461 |
