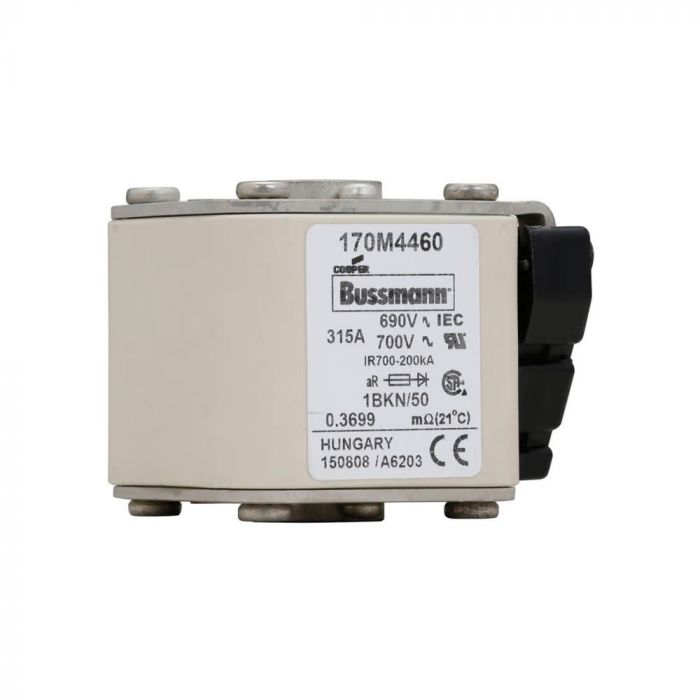

Bussman 170M4460 fusible semiconductor tubo de cerámica europeo 315a 690v 1bkn50 ar uc
Precio especial $1,780.00 IVA incluido + Envio $150 MXN
Antes $2,065.00
Disponible 4 Pzas
Antes $2,065.00
Disponible 4 Pzas
sku: 170M4460
pub
MX0000103871
170M4460
Model code: FUSE 315A 690V 1BKN/50 AR UC
Fuse-link, high speed, 315 A, AC 690 V, size 1, aR, IEC, UL, type K indicator
General specifications |
|
| Product Name | Eaton Bussmann series high speed square body fuse |
| Catalog Number | 170M4460 |
| Model Code | FUSE 315A 690V 1BKN/50 AR UC |
| UPC | 051712792394 |
| EAN | 5027590453042 |
| Product Length/Depth | 107 mm |
| Product Height | 63 mm |
| Product Width | 53 mm |
| Product Weight | 393.3333333 g |
| Warranty | Not Applicable |
| Compliances | CE Marked RoHS Compliant |
| Certifications | UL Recognized IEC Rated |
Product specifications |
|
| Type | Fuse |
| Application | Semiconductor, DC Common bus, DC drives, power converters/rectifiers |
| Amperage Rating | 315 A |
| Breaking capacity | 200 kA |
| Fuse indicator | Centre fuse status indicator |
| Insulated metal gripping lugs (IMGL) | No |
| Utilization category | aR (accompanied semiconductor protection) |
| Voltage type | AC |
| Fuse size | 1 |
| Rated voltage AC | 690 V |
| Center-to-center distance of connections | 51.1 mm |
| Current type | AC |
| Mounting dimension | M8 |
| Class | Class aR |
| Clearing (I2T) | 42000 at 660 V |
| Watt losses | 58 W |
| Fuse shape | Square body, flush end contacts |
| Pre arc (I2T) | 6200 |
| Color | None |
| Interrupt rating | 200 kAIC |
| Fitted with | Type K Indicator for micro |
| Construction size | 1 |
| Mounting method | Flush |
| Packaging type | Standard |
| Voltage rating | 690 V (IEC), 700 V (UL) |
| Fuse type | Flush end BKN/Type K Indicator for Micro |
| Fuse system (according to IEC 60269) | IEC 60269-4 flush end connections type A |
| Marca | Bussman |
|---|---|
| MPN: | 170M4460 |
