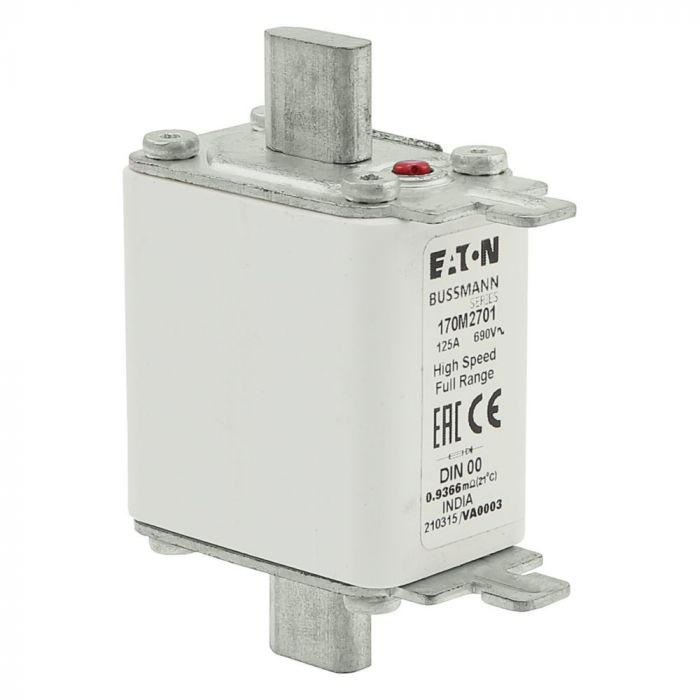

Bussman 170M2701 fusible semiconductor tubo de cerámica europeo 125a 690v din 00 gr
Precio especial $3,288.00 IVA incluido + Envio $150 MXN
Antes $3,814.00
Disponible 2 Pzas
Antes $3,814.00
Disponible 2 Pzas
sku: 170M2701
pub
MX0000103869
170M2701
Eaton Bussmann series high speed square body fuse, 125 A, 690 V (IEC), Size 0, Top fuse status indicator
General specifications |
|
Product Name | Eaton Bussmann series high speed square body fuse |
Catalog Number | 170M2701 |
Model Code | FUSE 125A 690V DIN 00 GR INDICATOR |
UPC | 051712554435 |
EAN | 5027590442886 |
Product Length/Depth | 217 mm |
Product Height | 65 mm |
Product Width | 85 mm |
Product Weight | 223 g |
Warranty | Not Applicable |
Compliances | CE Marked RoHS Compliant |
Certifications | UL Recognized IEC Rated |
Product specifications |
|
Type | Fuse |
Application | Semiconductor, DC Common bus, DC drives, power converters/rectifiers |
Amperage Rating | 125 A |
Breaking capacity | 200 kA |
Fuse indicator | Top fuse status indicator |
Insulated metal gripping lugs (IMGL) | No |
Utilization category | aR (accompanied semiconductor protection) |
Voltage type | AC |
Fuse size | 00 |
Rated voltage AC | 690 V |
Current type | AC |
Class | Class aR |
Clearing (I2T) | 12000 at 600 V |
Watt losses | 23 W |
Fuse shape | Square body, knife blade contacts |
Pre arc (I2T) | 2300 |
Color | None |
Interrupt rating | 200 kAIC |
Fitted with | Type T Indicator for micro |
Connection | Blade end x Din 43-620 blade end |
Construction size | 00 |
Packaging type | Standard |
Voltage rating | 690 V (IEC) |
Fuse type | DIN 43620 T indicator for micro Bladed |
Fuse system (according to IEC 60269) | Other |
Marca | Bussman |
---|---|
MPN: | 170M2701 |
