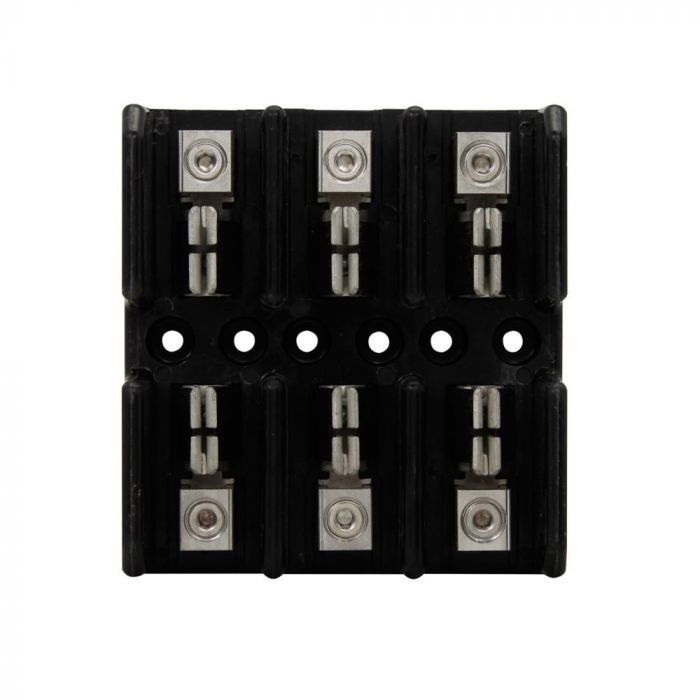

Bussman T30100-3CR base portafusibles para fusibles clase t 300vca
Precio especial $2,062.00 IVA incluido + Envio $150 MXN
Antes $2,392.00
Disponible 3 Pzas
Antes $2,392.00
Disponible 3 Pzas
sku: T30100-3CR
pub
MX0000103867
T30100-3CR
Eaton Bussmann series Class T modular fuse block, CR, 300 Vac/Vdc or less control systems, 61-100 A, 3P, Class T, Box lug, 200 kAIC, Glass polyester, #1/0 AWG Cu/Al
General specifications |
|
Product Name | Eaton Bussmann series Class T modular fuse block |
Catalog Number | T30100-3CR |
UPC | 051712148016 |
Product Length/Depth | 0.001 in |
Product Height | 0.001 in |
Product Width | 0.001 in |
Product Weight | 1.445 lb |
Warranty | Not Applicable |
Compliances | RoHS Compliant |
Certifications | Contact Manufacturer UL Recognized CSA Certified |
Electrical rating |
|
Amperage Rating | 61-100A |
Interrupt rating | 200 kAIC |
Short-circuit rating | 200 kA |
Voltage rating | 300 Vac/dc |
Physical details |
|
Material | Glass polyester |
Number of Poles | Three-pole |
Wire size | #1/0 AWG Cu/Al |
General information |
|
Class | Class T |
Connection | Box lug |
Special features | CR |
Marca | Bussman |
---|---|
MPN: | T30100-3CR |
