Bussman 1BS102 portafusible modular para fusibles ultrarrápidos -
Precio especial $2,525.00 IVA incluido + Envio $150 MXN
Antes $2,929.00
Disponible 4 Pzas
Antes $2,929.00
Disponible 4 Pzas
sku: 1BS102
pub
MX0000103866
1BS102

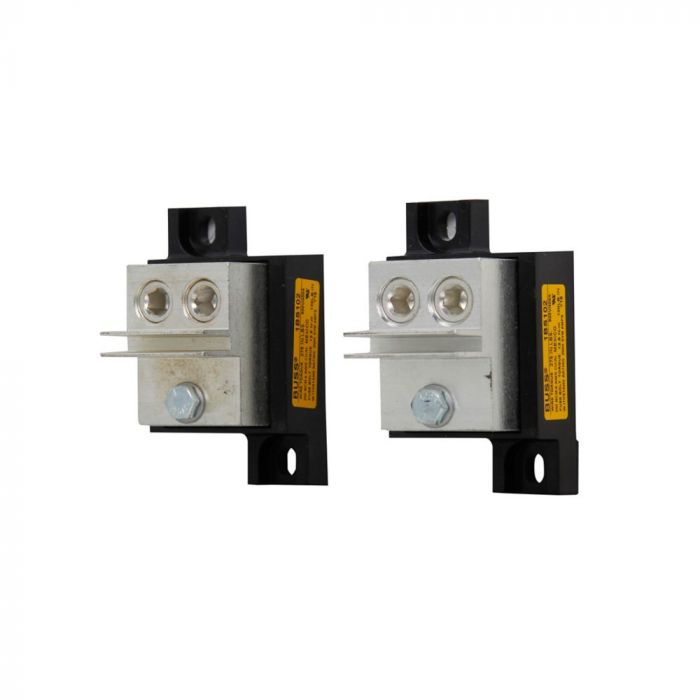

Eaton Universal fuse block, Modular, 400 A, 150, Celsius, 150, Celsius, Screw, 200 kAIC, Molded black phenolic base, Tin-plated aluminum connector, Zinc-plated steel studs/nut/washer, Stud, 600 V, Used with Type SC fuses, #6-250 kcmil Cu/Al
General specifications |
|
Product Name | Eaton Bussmann series 1BS10x universal fuse block |
Catalog Number | 1BS102 |
UPC | 051712134996 |
Product Length/Depth | 6.6 in |
Product Height | 2.5 in |
Product Width | 3.2 in |
Product Weight | 0.975 lb |
Warranty | Not Applicable |
Compliances | Contact factory RoHS Compliant |
Electrical rating |
|
Amperage Rating | 400 A |
Interrupt rating | 200 kAIC |
Voltage rating | 600 V |
Physical details |
|
Material | Tin-plated aluminum connector Zinc-plated steel studs/nut/washer Molded black phenolic base |
Operating temperature - max | 150 °C |
Operating temperature - min | 150 °C |
Wire size | #6-250 kcmil Cu/Al |
General information |
|
Connection | Screw |
Mounting method | Stud |
Used with | Used with Type SC fuses |
Marca | Bussman |
---|---|
MPN: | 1BS102 |
