Bussman 24THMEJ63 fusibles limitadores de corriente para media tensión 24kv
Precio especial $2,464.00 IVA incluido + Envio $150 MXN
Antes $2,858.00
Disponible 0 Pzas
Antes $2,858.00
Disponible 0 Pzas
Agotado
pub
MX0000103864
24THMEJ63

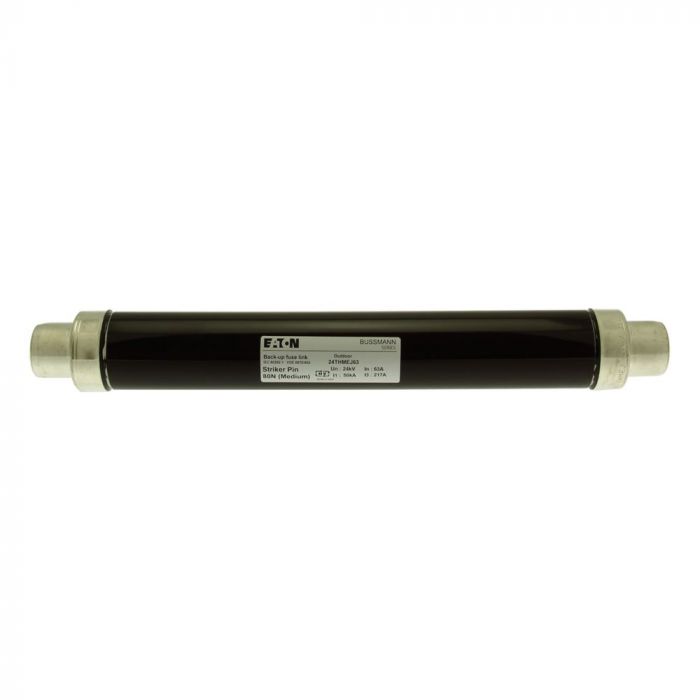

Eaton Bussmann series medium voltage DIN fuse, 63 A, AC 24 kV, 2.5, 64 x 442 mm, backup, DIN, with striker
General specifications |
|
| Product Name | Eaton Bussmann series medium voltage DIN fuse |
| Catalog Number | 24THMEJ63 |
| UPC | 051712186360 |
| EAN | 5027590245883 |
| Product Length/Depth | 442 mm |
| Product Height | 67 mm |
| Product Width | 64 mm |
| Product Weight | 3368 g |
| Warranty | Not Applicable |
| Compliances | DIN 43625 VDE 0670-4 IEC 60282-1 |
| Certifications | UL VDE |
Product specifications |
|
| Type | Fuse |
| Special features | Back-up, Transformer protection, Indoor or outdoor use |
| Application |
|
| Amperage Rating | 63 A |
| Fuse indicator | With Striker |
| Breaking capacity | 50 kA |
| Installation technique | Air |
| Performance Cat According To IEC 60282-1 | Back-up |
| Product application | Primary side transformer protection |
| Rated frequency - max | 50 Hz |
| Rated frequency - min | 50 Hz |
| Release characteristic | Other |
| Standard | DIN |
| Utilization category | Other |
| Voltage type | AC |
| With striker | Yes |
| Class | Class back-up |
| Barrels | 1 |
| Construction type | Bolt-on |
| Pre arc (I2T) | 4.3 x 1000 |
| Resistance | 21.1 Ohms |
| Watt losses | 127 W |
| Fuse diameter | 64 mm |
| Color | Brown |
| Interrupt rating | 50 kAIC |
| Construction size | 64 x 442 mm |
| Mounting method | Clip-in |
| Packaging type | Standard |
| Quantity | 1 |
| Voltage rating | 24 kV |
| Fuse type | THMEJ |
| Marca | Bussman |
|---|---|
| MPN: | 24THMEJ63 |
