Bussman FRS-R-350 fusible doble elemento clase rk5 600vca/250vcd
Precio especial $5,251.00 IVA incluido + Envio $150 MXN
Antes $6,091.00
Disponible 1 Pzas
Antes $6,091.00
Disponible 1 Pzas
sku: FRS-R-350
pub
MX0000103857
FRS-R-350

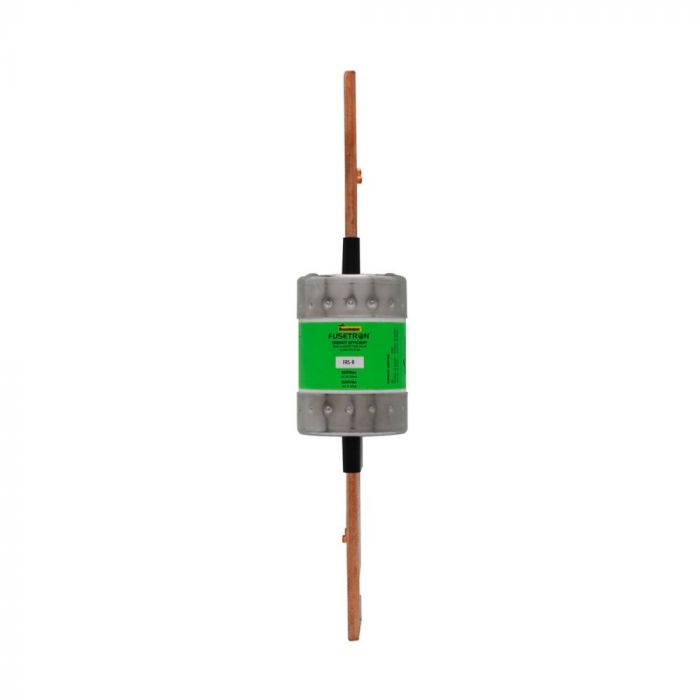

Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 350 A, non-indicating fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc
General specifications |
|
| Product Name | Eaton Bussmann series FRS-R fuse |
| Catalog Number | FRS-R-350 |
| UPC | 051712508520 |
| Product Length/Depth | 11.63 in |
| Product Height | 2.34 in |
| Product Width | 2.34 in |
| Product Weight | 0.00052 lb |
| Warranty | Not Applicable |
| Compliances | CE Marked |
Electrical rating |
|
| Amperage Rating | 350 A |
| Interrupt rating | 20 kAIC at 300 Vdc 200 kAIC at 600 Vac |
| Response time | 10 sec at 500% |
| Voltage rating | 600 Vac, 300 Vdc |
Physical details |
|
| Number of elements | Dual |
| Packaging type | Standard |
General information |
|
| Class | Class RK5 |
| Connection | Blade end x blade end |
| Fuse indicator | Non-indicating |
| Marca | Bussman |
|---|---|
| MPN: | FRS-R-350 |
