Asus Z890M motherboard modelo prime Z890M-plus wifi cpu intel socket lga1851 para procesadores core ultra serie 2 conjunto de chipset -
Precio especial $5,392.00 IVA incluido + Envio $150 MXN
Antes $6,255.00
Disponible 2 Pzas
Antes $6,255.00
Disponible 2 Pzas
sku: Z890M
pub
MX0000103748

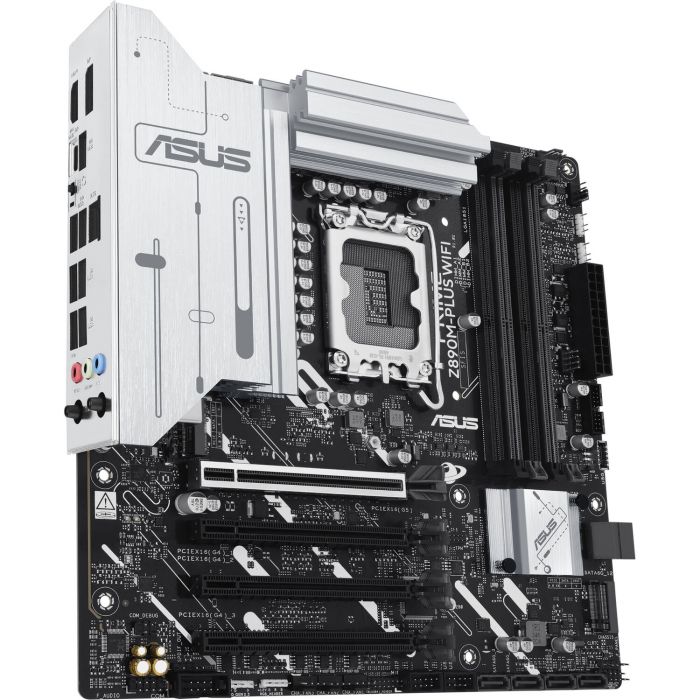

PRIME Z890M-PLUS WIFI
Key
| Chipset |
Intel Z890
|
| CPU Socket |
LGA 1851
|
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 3800 MT/s
|
| Storage Slots |
1x M.2 (M Key) 2280 (PCIe 5.0 x4)
2x M.2 (M Key) 2280 (PCIe 4.0 x4) |
| Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode) 2x PCIe 4.0 x16 (x1 mode) |
| Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
|
| Form Factor |
Micro-ATX
|
CPU
| Chipset |
Intel Z890
|
| CPU Socket |
LGA 1851
|
Back Panel I/O
| USB |
1x USB-C (USB 3.2 Gen 2x2)
1x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2x USB-A (USB 2.0) |
| Thunderbolt |
No
|
| Display |
1x HDMI 2.1
1x DisplayPort 1.4 |
| Audio |
3x 1/8' / 3.5 mm
|
| Ethernet / Controller |
1x Realtek 2.5Gigabit
|
| Wi-Fi Antenna |
2x Connector
|
| Buttons |
BIOS Flashback
|
Memory
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 3800 MT/s
|
| Maximum Capacity |
192 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC Unbuffered
|
Storage Expansion
| SATA |
6x SATA III
|
| Storage Slots |
1x M.2 (M Key) 2280 (PCIe 5.0 x4)
2x M.2 (M Key) 2280 (PCIe 4.0 x4) |
| Optane Memory Support |
No
|
| RAID Support |
RAID 0, 1, 5, 10
|
Internal I/O
| Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode) 2x PCIe 4.0 x16 (x1 mode) |
| USB |
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling |
2x 4-Pin CPU
|
| Liquid Cooling |
1x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
1x 8-Pin CPU 1x 4-Pin CPU |
| Security |
Chassis Intrusion, TPM Header
|
| LED Header |
4x RGB
|
| Audio |
1x Speaker
1x S/PDIF |
| Diagnostics |
Clear CMOS, Flash BIOS
|
| Add-On |
1x Thunderbolt Header
|
| Legacy |
1x Serial
|
BIOS
| ROM |
256 Mb
|
Front Panel I/O
| Front Panel I/O |
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1
|
Audio
| Audio Codec |
Realtek (7.1-Channel)
|
| DAC |
No
|
Wireless
| Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
|
| Bluetooth |
5.4
|
| Module Support |
1 E Key M.2
|
Software
| OS Compatibility |
Windows 11
|
Physical
| Form Factor |
Micro-ATX
|
| Dimensions |
9.6 x 9.6' / 24.4 x 24.4 cm
|
Packaging Info
| Package Weight |
3.44 lb
|
| Box Dimensions (LxWxH) |
10.9 x 10.8 x 2.8'
|
| Marca | Asus |
|---|---|
| MPN: | Z890M |
