Dahua DHI-ITARD-024MA-H radar detector multicarril/ hasta 32 vehículos de 1 a 4 carriles/ distancia detección18-35 m/ 10 km/h250 km/h/ detección cambios ilegales carril/ conducción en sentido contrario/ ip66
Precio especial $144,081.00 IVA incluido + Envio $150 MXN
Antes $167,134.00
Disponible 5 Pzas
Antes $167,134.00
Disponible 5 Pzas
sku: DHI-ITARD-024MA-H
pub
MX0000103619
ITARD-024MA-H

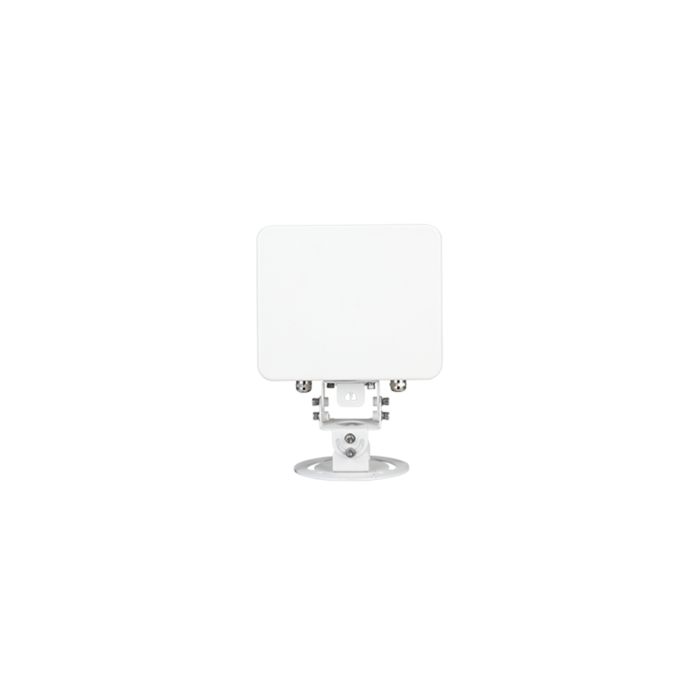

Multilane Radar Detector
> One single radar covers up to 32 vehicles of 1–4 lanes.
> Precisely detects speed and position of vehicles when they are 18 m–35 m (59.1 ft–114.8 ft) away.
> Flexible to install: Either installed over the lane or at the side of a lane.
> Special functions such as detection of illegal lane change and wrong-way driving.
> The detection performance is not impaired by adjacent lane or vehicles in front of or behind the target vehicle.
| Performance | |
| Lane Coverage | 1–4 lane(s) (3.75 m (12.30 ft) standard lane) |
| Speed Measurement Range | 10 km/h–250 km/h |
| Speed Measurement Accuracy | Simulated Speed Measurement Error Range: ±2 km/h On-site Speed Measurement Error Range: Vehicle speed < 100 km/h: ±2 km/h Vehicle speed ≥ 100km/h: ±2% |
| Detection Target | Up to 32 vehicles |
| Maximum Detection Distance | 35 m (114.8 ft) |
| Mininum Detection Distance | 18 m (59.1 ft) |
| Installation Height | 5 m–8 m (16.40 ft–26.25 ft) |
| Position Detection Accuracy | ± 1 m (3.3 ft) |
| Overspeed Capture Rate | ≥ 95% (when traffic is smooth) |
| Lane Recognition Rate | ≥ 95% |
| Frequency | 24 GHz–24.25 GHz |
| Response Time | ≤ 50 ms |
| Transmit Power (EIRP) | 20 dBm (100 mW) |
| Modulation | FMCW + Monopulse + Doppler, 3 transceiving antennas |
| Bandwidth | 250 MHz |
| Protection Grade | IP66 |
| Radar Beam Angle | Horizontal: 20° (–3 dB) Vertical: 18° (–3 dB) |
| General | |
| Operating Voltage | 12V DC |
| Average Power Consumption | < 3.5 W |
| Operating Temperature | -40 °C to +85 °C (–40 °F to +185 °F) |
| Relative Humidity | 10%RH–90%RH, no condensation |
| Dimensions | 155 mm × 130 mm × 54.9 mm (6.10' × 5.12' × 2.16') (L × W × H) |
| Weight | 2.2 kg (4.85 lb) |
| Marca | Dahua |
|---|---|
| MPN: | DHI-ITARD-024MA-H |
