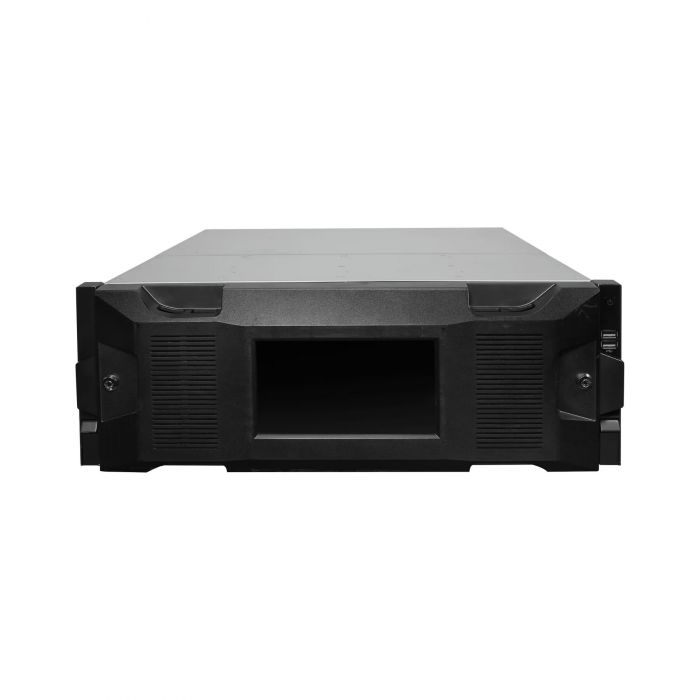

Dahua DHI-IVSS7016DR-4M technology wizmind ivss7016dr-4m 3u
Precio especial $506,889.00 IVA incluido + Envio $150 MXN
Antes $587,991.00
Disponible 1 Pzas
Antes $587,991.00
Disponible 1 Pzas
sku: DHI-IVSS7016DR-4M
pub
MX0000103616
DHI-IVSS7016DR-4M
| Disco duro | |
|---|---|
| Capacidad máxima de almacenaje | 16 TB |
| Interfaz del HDD | SATA III, Serial Attached SCSI (SAS) |
| Número de HDDs soportados | 16 |
| Compatibilidad con RAID | Si |
| Niveles RAID | 0, 1, 5, 6, 10, 30, 60 |
| Características | |
| Montaje en rack | Si |
| Capacidad del rack | 3U |
| Certificación | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN55024,EN55035, EN50130-4,EN60950-1 FCC: Part 15 Subpart A UL: 60950-1 and CAN/CSA C22.2 No. 60950-1-07 |
| Procesador | |
| Procesador incorporado | Si |
| Condiciones ambientales | |
| Intervalo de temperatura operativa (T-T) | 0 - 45 °C |
| Intervalo de humedad relativa para funcionamiento | 10 - 90% |
| Intervalo de temperatura de almacenaje | 0 - 40 °C |
| Intervalo de humedad relativa durante almacenaje | 30 - 85% |
| Puertos e Interfaces | |
| Puertos Ethernet LAN (RJ-45) | 4 |
| Energía sobre Ethernet (PoE) | No |
| Ethernet LAN, velocidad de transferencia de datos | 10,100,1000 Mbit/s |
| Salida HDMI | Si |
| Número de puertos HDMI | 3 |
| Puertos de salida VGA (D-Sub) | 1 |
| Cantidad de puertos USB 2.0 | 2 |
| Cantidad de puertos tipo A USB 3.2 Gen 1 (3.1 Gen 1) | 2 |
| Entradas RCA de sonido | 1 |
| Salidas RCA de sonido | 1 |
| Cantidad de puertos eSATA | 1 |
| Revisión SATA | 3.0 |
| Cantidad de puertos SATA internos | 16 |
| Puertos RS-485 | 1 |
| Interfase RS-232 | Si |
| eSATA | Si |
| Puerto - RS-232 | 1 |
| Protocolos de red compatibles | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P |
| Exhibición | |
| Pantalla incorporada | Si |
| Control de energía | |
| Consumo de energía (máx.) | 312 W |
| Consumo energético | 120 W |
| Voltaje de entrada AC | 100-240 V |
| Frecuencia de entrada AC | 50 - 60 Hz |
| Peso y dimensiones | |
| Ancho | 444.8 mm |
| Profundidad | 522.4 mm |
| Altura | 133.2 mm |
| Peso | 16 kg |
| Ancho del paquete | 689 mm |
| Largo del paquete | 779 mm |
| Alto del paquete | 464 mm |
| Tipo de empaque | Caja |
| Peso del paquete | 17 kg |
| Requisitos del sistema | |
| Navegador compatible | Chrome, PCAPP, IE9 or higher, Firefox |
| Desempeño | |
| Canales de entrada de vídeo | 256 canales |
| Canales de entrada de alarma | 16 |
| Canales de salida de alarma | 8 |
| Recuento de personas | Si |
| Detección de movimiento en video | Si |
| Pantalla multiple | Si |
| Formatos de audio soportados | G.726, PCM |
| Formatos de vídeo compatibles | H.264, H.265 |
| Sistema operativo instalado | LINUX incrustado |
| Función de copia de seguridad | Si |
| Imagen instantánea | Si |
| Modo de reproducción | Selección de copias de seguridad, Digital zoom, Juego rápido, Adelante, Cuadro por cuadro, Pantalla completa, Pausa, Play, Reversa, Slow play, Alto |
| Controles de reproducción | Si |
| Velocidad máxima de cuadro | 60 fps |
| Ancho de banda de entrada | 512 Mbit/s |
| Ancho de banda de salida | 128 Mbit/s |
| Detector de rostro | Si |
| Características de LAN inalámbrico | |
| Wifi | No |
IVSS7016DR-4M
3U 16HDDs WizMind Intelligent Video Surveillance Server
> Industry embedded micro-controller
> Max 512 Mbps incoming bandwidth
> 256-channel IP video access
> Up to 48-channel AI IVS
> Up to 48-channel face recognition with normal IPC
> Up to 160-channel face recognition with face detection IPC
> Up to 48-channel video metadata
> Up to 50 face databases with 500,000 face pictures in total
> Supports RAID 0/1/5/6/10/50/60
> SAS3.0 for storage extension
> Redundant power
| System | |
| Main Processor | Industry embedded micro-controller |
| Operating System | Embedded Linux OS |
| Operation Interface | WEB (PCAPP), local GUI |
| AI Applications | |
| AI by Camera | Face detection, face recognition, video metadata, IVS (tripwire, intrusion, abandoned object, missing object, fast moving, parking detection, crowd gathering, loitering, and fence-crossing), people counting, smoking detection, call detection |
| AI by Device | Face detection, face recognition, video metadata, IVS (tripwire, intrusion, crowd gathering, loitering detection, parking detection), plate comparison |
| IVS | |
| IVS Performance (AI by Device) (Channel Number) | 48-channel 2 MP or 32-channel 4 MP with normal IP camera |
| IVS Performance (AI by Camera) (Channel Number) | 256-channel |
| Human Face Detection | |
| Human Face Properties | Supports 6 properties: Gender, age range (6 levels), glasses, expression (8 types), mouth mask, and beard |
| Face Detection Performance (AI by Device)(Channel Number) | 48-channel 2 MP or 32-channel 4 MP with normal IP camera |
| Face Detection Performance (AI by camera) (Channel Number) | 160-channel |
| Human Face Recognition | |
| Face Database Capacity | 50 face databases with 500,000 face pictures in total |
| Human Face Recognition Performance (AI by Device)(Channel Number) | 48-channel 2 MP or 32-channel 4 MP with normal IP camera 160-channel with face detection IP camera (Totally 160 face pictures analyzed per second) |
| Human Face Recognition Performance (AI by camera) (Channel Number) | 160-channel |
| ANPR | |
| Plate Database Capacity | 50 plate databases with 500,000 plate numbers in total Supports allowlist and blocklist |
| Plate Detection Performance by ITC Camera (Channel Number) | 64-channel |
| Video Metadata | |
| Human Body Properties | Gender, age, sleeves length, top color, bottom type, bottom color, bag, rain coat, umbrella, hat, hairstyle, direction, hold a baby, mouth mask |
| Vehicle Properties | Vehicle type, vehicle color, plate color, logo, calling, seatbelt, ornament, region |
| Non-motorized Vehicle Properties | Non-motor Vehicle type, non-motor vehicle color, number of passengers, umbrella, rain coat,bag , sleeve length, top color, hat, hair style, mouth mask |
| Metadata Performance (AI by Device) (Channel Number) | 48-channel 2 MP or 32-channel 4 MP with normal IP camera |
| Metadata Performance (AI by camera) (Channel Number) | 64-channel |
| Video Parameters | |
| Remote Connection | 256-channel |
| Network Bandwidth | Incoming bandwidth: 512 Mbps recording bandwidth: 384 Mbps outgoing bandwidth: 128 Mbps |
| Resolution | 24MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/CIF/QCIF |
| Decoding Capability | 2-channel 24MP/3-channel 16MP/6-channel12MP (20 fps)/7-channel12MP (15 fps)/6-channel8MP (30 fps)/12-channel8MP (15 fps)/7-channel6MP (30 fps)/9-channel5MP (30 fps)/11-channel5MP (25 fps)/12-channel4MP (30 fps)/18-channel4MP (20 fps)/19-channel3MP (25 fps)/12-channel1080p (60 fps)/24-channel1080p (30 fps)/36-channel720p (30 fps) |
| Video Output | 1-channel VGA output, 3-channel HDMI output, VGA 1/HDMI 1 outputs the same video source Supports 4K output |
| Multi-screen Display | 1st Screen: Max.64-channel 2nd Screen: Max.16-channel 3rd Screen: Max.1-channel |
| Third-party Support | Onvif; RTSP; Sony; Panasonic; Axis; Arecont; Pelco; Canon; Samsung |
| Operating System | Embedded Linux OS |
| Operation Interface | WEB (PCAPP), local GUI |
| Compression | |
| Video Compression | Smart H.265+; Smart H.264+; H.265; H.264 |
| Audio Compression | G.711a; G.711u; PCM; G.726 |
| Network | |
| Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P; iSCSI; UPnP; SNMP; IPv6 |
| Mobile Phone | iOS, Android |
| Interoperability | ONVIF (Profile S, T and G); CGI; SDK |
| Browser | Chrome; PCAPP; IE9 or higher; Firefox |
| Network Mode | NIC binding mode such as multiple-address mode, load balance, fault-tolerance, etc |
| Record Playback | |
| Multiple-channel Playback | Max. 16-channel playback |
| Record Search | Search video detection/manual record/IO alarm/intelligent event/all record file |
| Storage Medium | Internal HDD, SAS disk array enclosure |
| Backup Method | HDD, peripheral USB storage device |
| Playback Function | Play, pause, stop, fast forward, fast backward, reverse play, frame by frame play Full-screen, backup (clip/file), snapshot, digital zoom, audio on/off |
| Storage | |
| HDD Group | 16 |
| RAID | RAID 0/1/5/6/10/50/60 |
| Storage Pool | N/A |
| Alarm | |
| General Alarm | Motion detect, tampering, local alarm |
| Anomaly Alarm | IPC offline alarm, storage error, HDD full, IP conflict, MAC conflict, login lock, AI module temperature alarm, AI module offline, fan malfunction |
| Intelligent Alarm | Human face detection, human face recognition, entries frequency, video metadata (person/vehicle/non-motor vehicle), IVS, plate recognition, people counting, smoking, call |
| Alarm Linkage | Record, snapshot (full image), local external alarm output, IPC external alarm output, access & control, audio prompt, buzzer, log, preset, email |
| Peripheral Interface | |
| Audio Input | 1-channel (reserved) |
| Audio Output | 1-channel, speaker output, audio linkage output |
| Alarm Input | 16-channel |
| Alarm Output | 8-channel |
| Internal HDD | 16 slots, SATA3.0/SAS. Max. 16T/HDD |
| eSATA | 1 port |
| SAS | 2 SAS3.0 ports |
| RS-232 | 1 port, for debug or transparent COM data |
| RS-485 | 1 port, control peripheral PTZ and so on Supports various protocols |
| USB | 4 ports 2 USB2.0 ports at the front panel and 2 USB3.0 ports at the rear panel |
| HDMI | 3 ports; support 4K output |
| VGA | 1 port |
| Network | 4 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports |
| Power | 2 ports |
| PoE | N/A |
| General Parameters | |
| Power Supply | AC100-127V/AC200-240V 50/60Hz |
| Power Consumption | 120W (without HDD, idling) 312W (all HDDs connected) |
| Net Weight | 16 kg (35.27 lb) |
| Gross Weight | 17 kg (37.48 lb) |
| Dimensions (W × L × H) | Chassis: 444.8 mm × 539.4 mm × 133.2 mm (17.51 ' × 21.24 ' × 5.24 ') Max. size: 485.0 mm (with hanger) × 539.4 mm × 133.2 mm (with feet mat) (19.09 ' × 21.24 ' × 5.24 ') |
| Packaging Dimensions (W × L × H) | 689 mm × 779 mm × 464 mm (27.13 ' × 30.67 ' × 18.27 ') |
| Operating Conditions | 0 °C to +45 °C (+32 °F to +113 °F)/10%RH–90% RH |
| Strorage Conditions | -20 °C to +70 °C (-4 °F to +158 °F) |
| Operating Altitude | 5000 m (16404.20 ft) |
| Installation Mode | Desktop/rack |
| Certifications | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN55024,EN55035, EN50130-4,EN60950-1 FCC: Part 15 Subpart A UL: 60950-1 and CAN/CSA C22.2 No. 60950-1-07 |
| Marca | Dahua |
|---|---|
| MPN: | DHI-IVSS7016DR-4M |
